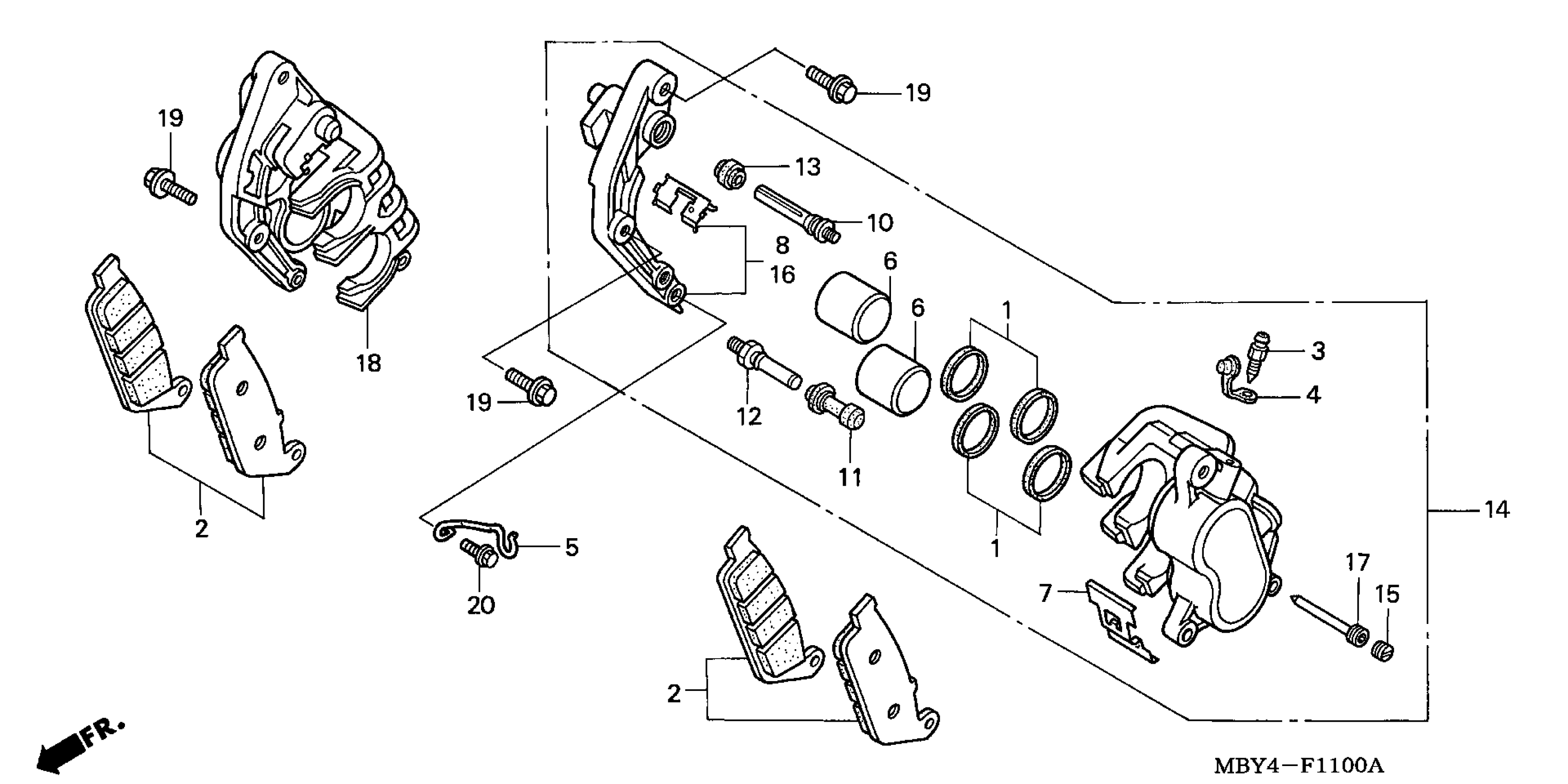

Honda GL1500CFA (01) VALKYRIE INTERSTATE, USA, VIN# 1HFSC410-1A200001 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

SEAL SET, PISTON

06431-MA3-405

$6.82

1

SEAL SET, PISTON This part replaces 06431-MZ0-760.

06431-MA3-405

$6.82

2

PAD SET, FR.

06455-MV4-405

$48.47

2

PAD SET, FR. This part replaces 06455-MZ0-760.

06455-MV4-405

$48.47

3

SCREW, BLEEDER (NISSIN)

43352-HC5-971

$3.93

3

SCREW, BLEEDER (NISSIN) This part replaces 43352-MZ0-760.

43352-HC5-971

$3.93

4

CAP, BLEEDER

43353-KBP-930

$0.78

5

GUIDE, SPEEDOMETER CORD (NOT AVAILABLE)

44832-MBY-670

Unavailable

6

PISTON

45107-ML4-006

$34.00

6

PISTON This part replaces 45107-MZ0-760.

45107-ML4-006

$34.00

7

SPRING, PAD (NISSIN)

45108-ML7-922

$5.75

7

SPRING, PAD (NISSIN) This part replaces 45108-MZ0-760.

45108-ML7-922

$5.75

8

BRACKET, L. FR. (NOT AVAILABLE) This part replaces 45110-MZ0-760.

45110-MZ0-006

Unavailable

10

BOLT A, PIN

45131-ML7-921

$13.86

10

BOLT A, PIN This part replaces 45131-MZ0-890.

45131-ML7-921

$13.86

11

BOOT, PIN BUSH (NISSIN) This part replaces 45132-GW3-980.

45132-166-016

$5.07

11

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.07

12

BOLT, PIN

45131-166-016

$7.10

12

BOLT, PIN

45137-GW3-980

Unavailable

13

BOOT B

45133-MA3-006

$5.07

13

BOOT B This part replaces 45139-GW3-980.

45133-MA3-006

$5.07

14

CALIPER SUB-ASSY., L. FR. BRAKE (NISSIN)

45150-MZ0-006

Unavailable

14

CALIPER SUB-ASSY., L. FR. BRAKE (NISSIN) This part replaces 45150-MZ0-760.

45150-MZ0-006

Unavailable

15

PLUG, PIN This part replaces 45203-GW3-980.

45203-MG3-016

$4.76

15

PLUG, PIN

45203-MG3-016

$4.76

16

BRACKET, R. FR. (NOT AVAILABLE) This part replaces 45210-MZ0-760.

45210-MZ0-006

Unavailable

17

PIN, HANGER

45215-ML7-922

$9.51

17

PIN, HANGER This part replaces 45215-MZ0-760.

45215-ML7-922

$9.51

18

CALIPER SUB-ASSY., R. FR. BRAKE (NISSIN)

45250-MZ0-006

Unavailable

18

CALIPER SUB-ASSY., R. FR. BRAKE (NISSIN) This part replaces 45250-MZ0-760.

45250-MZ0-006

Unavailable

19

BOLT, SPECIAL FLANGE (8X32)

90101-MZ8-000

$6.29

20

BOLT, FLANGE (6X12)

95701-06012-00

$1.81
