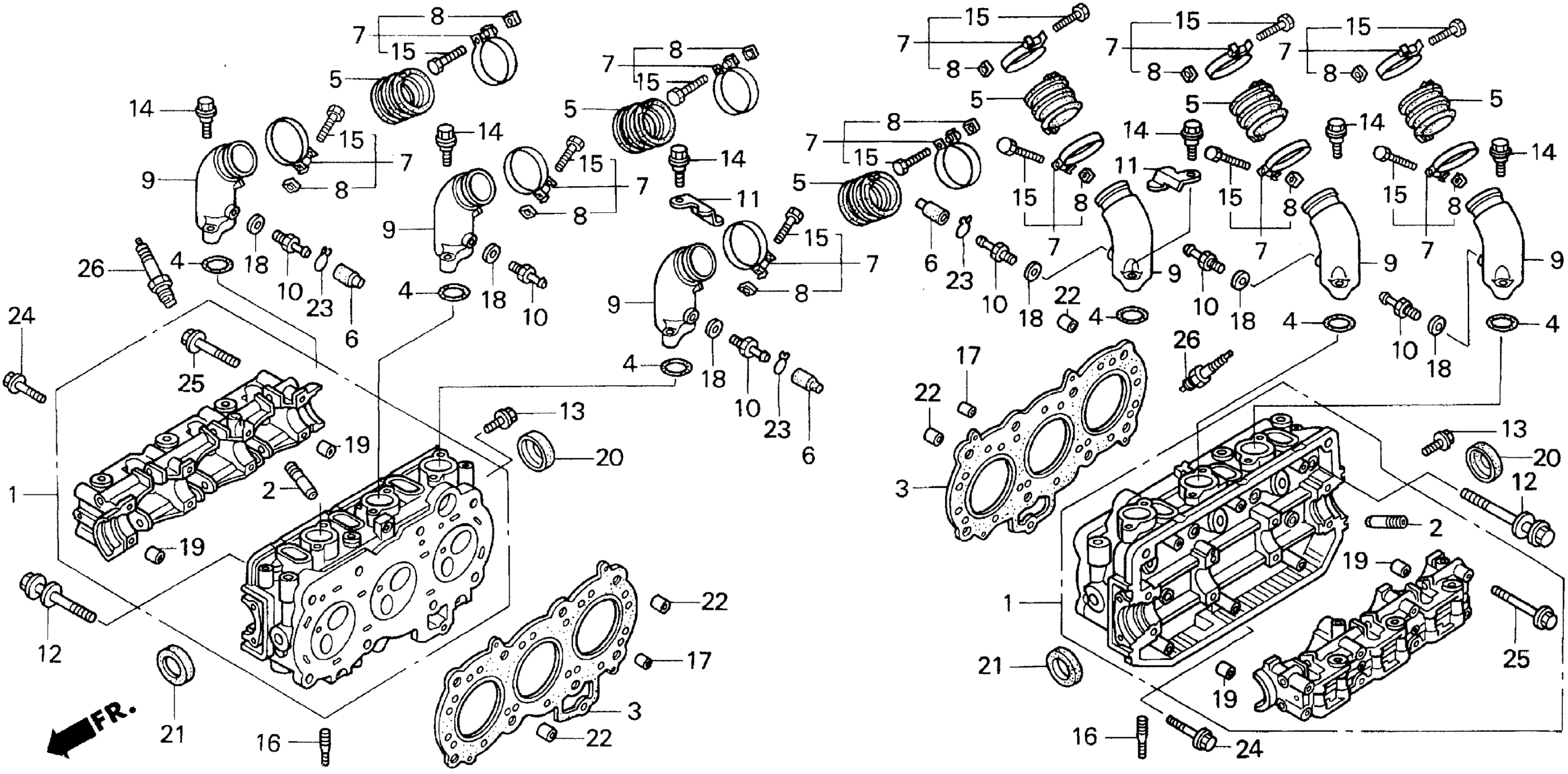

Honda GL1500CFA (01) VALKYRIE INTERSTATE, USA, VIN# 1HFSC410-1A200001 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY. (NOT AVAILABLE)

12200-MZ0-A00

Unavailable

2

GUIDE, VALVE (OVER SIZE)

12204-MN5-305

Unavailable

3

GASKET, CYLINDER HEAD

12251-MN5-004

$30.91

3

GASKET, CYLINDER HEAD (0.75/1.00) | (Optional).

12251-MN5-305

Unavailable

3

GASKET, CYLINDER HEAD This part replaces 12251-MZ0-760.

12251-MN5-004

$30.91

4

O-RING (2.4X29)

16075-GHB-B70

$7.81

5

INSULATOR, CARBURETOR

16211-MZ0-000

$18.22

6

CAP, BOOST

16215-MV4-000

$2.78

7

BAND, INSULATOR

16218-MZ0-A40

Unavailable

8

NUT, SQUARE (5MM)

16222-MV4-300

$2.15

9

MANIFOLD, IN.

17110-MZ0-000

Unavailable

10

JOINT, PRESSURE BOOST (D) (NOT AVAILABLE)

17113-MT2-000

Unavailable

11

STAY, AIR FEED PIPE

17115-MZ0-000

Unavailable

12

BOLT, FLANGE (9X91)

90010-MT8-003

$12.28

13

BOLT, FLANGE (6X14)

90016-MN5-000

$3.89

14

BOLT, FLANGE CAP (6X26)

90022-MZ0-000

$6.02

15

BOLT, RECESSED (5X28)

90023-MM5-000

$2.92

16

BOLT, STUD (8-6X40)

90035-MN5-000

$4.53

17

ORIFICE (2.0)

90084-MN5-000

Unavailable

18

WASHER, SEALING (5MM)

90452-323-000

$1.59

19

PIN, DOWEL (10X13.5)

90701-GB4-680

Unavailable

20

OIL SEAL (27X43X9)

91209-371-003

$17.60

21

CAP, SEAL (43X9)

91209-463-013

$11.58

22

PIN, DOWEL (12X20)

94301-12200

$2.29

23

CLIP, TUBE (B7)

95002-02070

$1.80

24

BOLT, FLANGE (6X40)

95701-06040-08

$1.80

25

BOLT, FLANGE (8X80)

95701-08080-00

$1.64

26

SPARK PLUG (DPR6EA-9) (NGK) | (Optional).

98069-56916

$2.62

26

SPARK PLUG (X20EPR-U9) (DENSO) | (Optional).

98069-56926

$2.54

26

SPARK PLUG (DPR7EA-9) (NGK)

98069-57916

$2.62

26

SPARK PLUG (X22EPR-U9) (DENSO)

98069-57926

$2.54

26

SPARK PLUG (DPR8EA-9) (NGK) | (Optional).

98069-58916

$2.62

26

SPARK PLUG (X24EPR-U9) (DENSO) | (Optional).

98069-58926

$2.54
