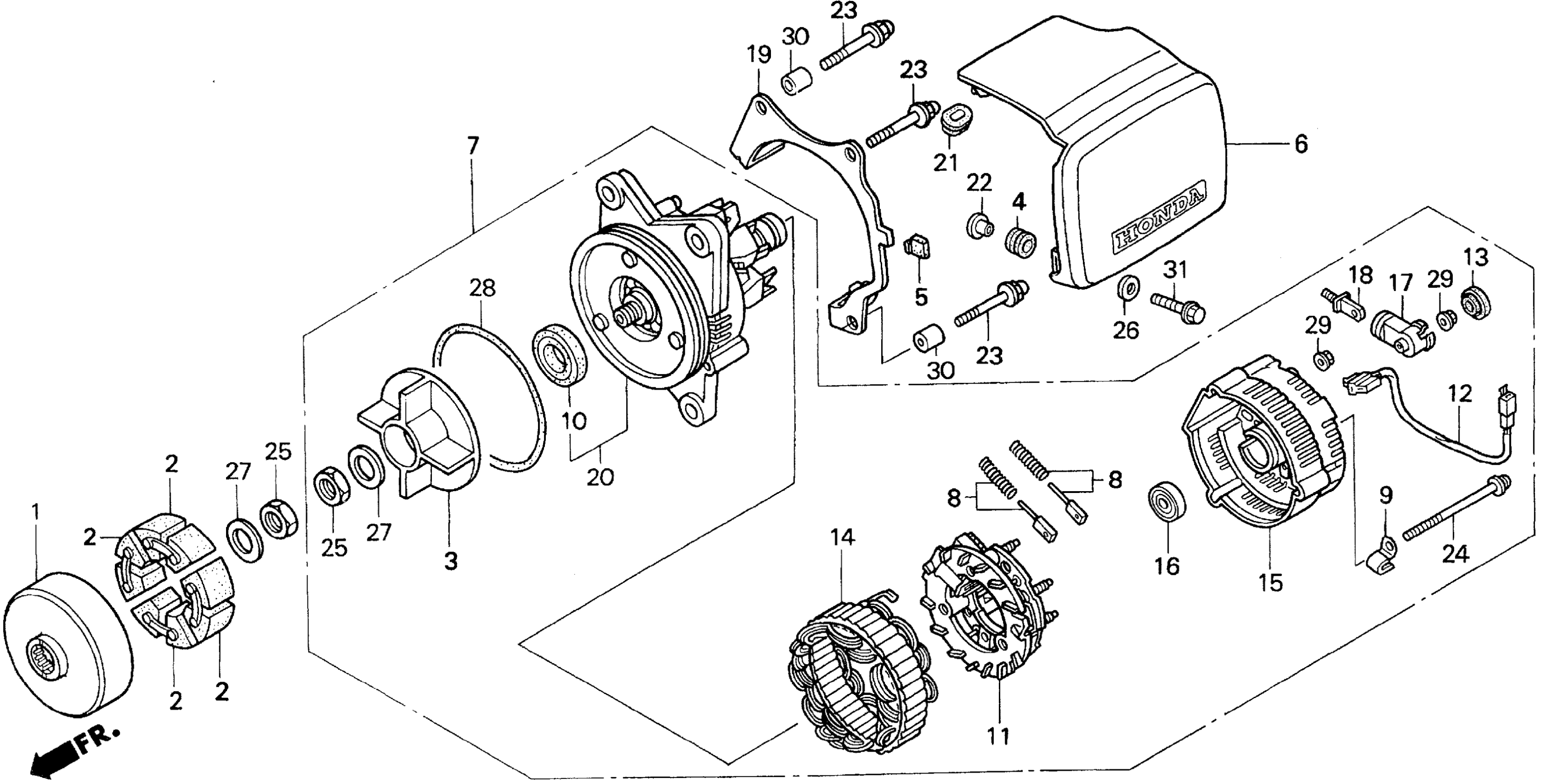

Honda GL1500CFA (01) VALKYRIE INTERSTATE, USA, VIN# 1HFSC410-1A200001 ALTERNATOR Diagram

#

Description
Price

1

COUPLE, ALTERNATOR (A)

13531-MT8-000

Unavailable

2

RUBBER, ALTERNATOR DAMPER

13534-MN5-020

$6.86

3

COUPLE, ALTERNATOR (B)

13541-MN5-000

Unavailable

4

RUBBER, CUSHION

17622-GB7-900

$4.78

5

RUBBER, PROTECTOR

18293-MN0-000

$2.13

6

COVER, ALTERNATOR

21333-MZ0-A00

$405.85

7

ALTERNATOR ASSY. (HITACHI)

31100-MBY-005

Unavailable

8

BRUSH

31101-MN5-005

$13.66

9

CLAMP, ALTERNATOR WIRE

31103-MN5-005

Unavailable

10

OIL SEAL (HITACHI)

31104-MN5-005

$16.07

11

RECTIFIER, REGULATE

31105-MN5-005

Unavailable

12

WIRE, ALTERNATOR (SOURCE: VINTAGE PARTS INC.)

31108-MBY-005

Unavailable

13

CAP, TERMINAL

31109-MN5-005

Unavailable

14

CORE, STATOR (HITACHI)

31110-MN5-005

$163.28

15

COVER, RR.

31112-MN5-015

Unavailable

16

BEARING, RR. (HITACHI)

31113-MN5-005

$28.23

17

HOUSING, OUT PUT (HITACHI)

31114-MN5-005

Unavailable

18

TERMINAL, OUT PUT (HITACHI)

31115-MN5-005

$53.93

19

STAY, ALTERNATOR COVER

31115-MZ0-000

Unavailable

20

CORE, ROTOR

31120-MBY-005

Unavailable

21

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

22

COLLAR, TAILLIGHT MOUNTING

84706-163-670

$4.08

23

BOLT, FLANGE CAP (8X38)

90024-MZ0-000

Unavailable

24

BOLT, ALTERNATOR

90062-MN5-005

$2.18

25

NUT, HEX. (14MM)

90204-MN5-000

$9.20

26

WASHER, PLAIN (6MM)

90403-ZW1-000

$1.87

26

WASHER, PLAIN (6MM) This part replaces 90406-ZV5-000.

90403-ZW1-000

$1.87

26

WASHER, PLAIN (6MM) This part replaces 90406-ZV5-010.

90403-ZW1-000

$1.87

27

WASHER (14.2X23X2.6)

90408-MN5-000

$5.64

28

O-RING (84.5X4) (ARAI)

91320-MN5-003

$7.10

29

NUT-WASHER (5MM)

94071-05080

$1.49

30

PIN, DOWEL (10X16)

94301-10160

$2.28

31

BOLT, FLANGE (6X20)

96001-06020-02

$1.49
