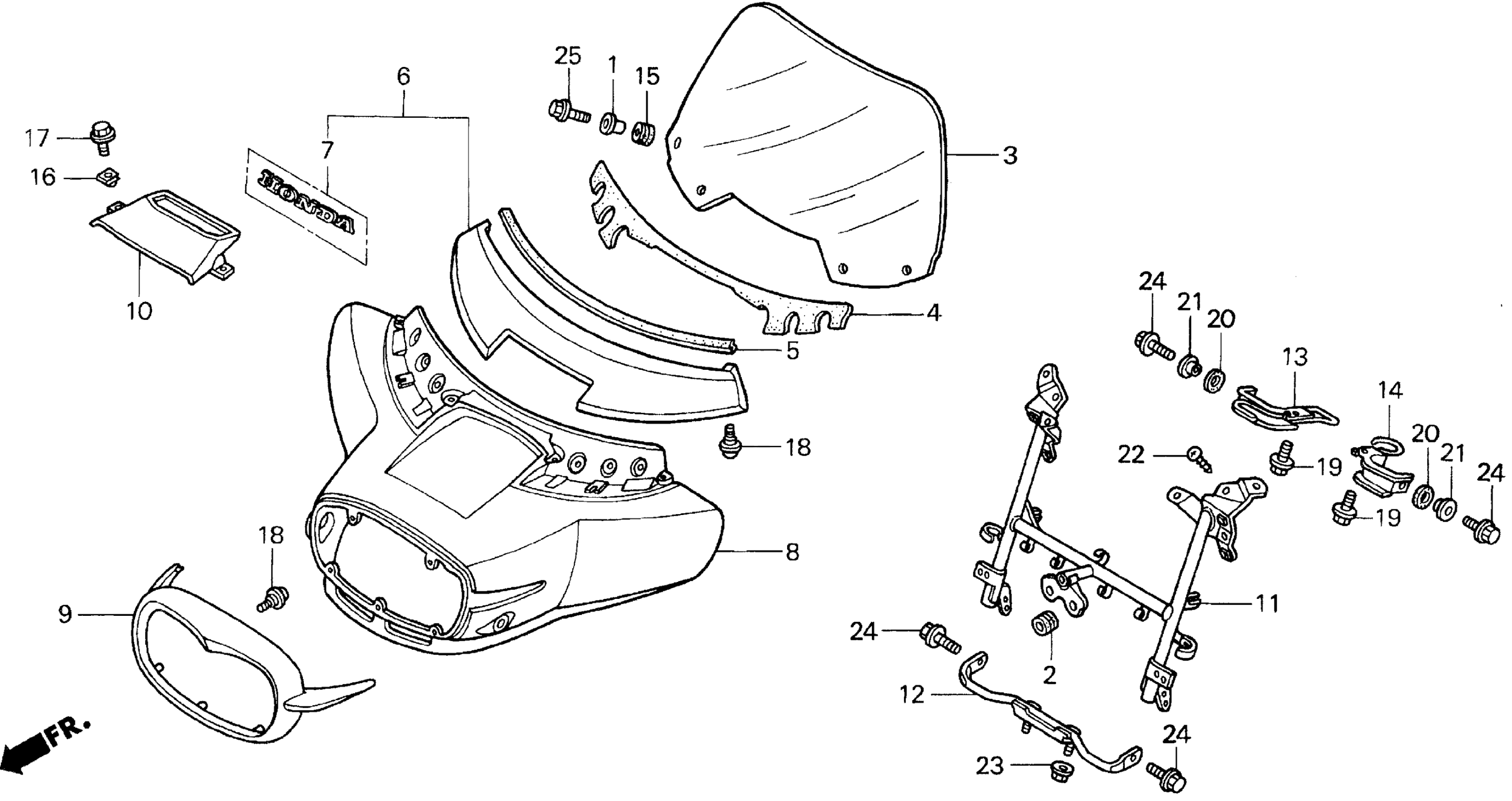

Honda GL1500CFA (00) VALKYRIE INTERSTATE, USA, VIN# 1HFSC410-YA100001 FAIRING Diagram

#

Description
Price

1

COLLAR, MUFFLER

18357-KA4-710

$6.63

2

RUBBER, RADIATOR MOUNTING

19051-KA4-000

$3.80

3

WINDSCREEN

64110-MBY-000

$316.31

4

SEAL A, WINDSCREEN (SOURCE: VINTAGE PARTS INC.)

64111-MBY-000

Unavailable

5

SEAL B, WINDSCREEN (NOT AVAILABLE)

64121-MBY-000

Unavailable

6

GARNISH SET, WINDSCREEN (WL)

64124-MBY-000

Unavailable

7

EMBLEM, GARNISH

64141-MBY-300

$26.97

8

COWL SET, FR. *NH1* (BLACK) (NOT AVAILABLE) This part replaces 64214-MBY-000ZA.

64214-MBY-A00ZA

Unavailable

8

COWL SET, FR. (TYPE2) (WL) (NOT AVAILABLE) COWL SET, FR. (TYPE4) (WL)

64214-MBY-000ZE

Unavailable

8

COWL SET, FR. (TYPE4) (WL) (SOURCE: VINTAGE PARTS INC.)

64214-MBY-660ZA

Unavailable

9

GARNISH, HEADLIGHT

64220-MBY-000

Unavailable

10

DUCT (INNER) (SOURCE: VINTAGE PARTS INC.)

64247-MBY-000

$23.03

11

STAY, FR. COWL (SOURCE: VINTAGE PARTS INC.)

64510-MBY-000

Unavailable

12

STAY, FR. COWL (LOWER) (SOURCE: VINTAGE PARTS INC.)

64515-MBY-000

$123.90

13

STAY, R. FR. COWL (UPPER) (NOT AVAILABLE)

64516-MBY-000

Unavailable

14

BRACKET, L. WINDSCREEN SIDE (UPPER)

64517-MZ0-700

$39.75

15

GROMMET B, WINDSCREEN

64528-MBC-000

$4.52

16

NUT, FENDER SETTING

84601-HA7-670

$5.54

17

BOLT, FENDER STAY

90001-HC5-600

$6.62

18

SCREW, SPECIAL (5MM)

90107-MBY-000

$3.08

19

BOLT, FLANGE (8X16)

90123-KV0-000

$4.51

20

WASHER, BUMPER BOLT

90148-SA0-000

$3.62

21

WASHER (6X20)

90512-MBY-000

$5.24

22

SCREW, TAPPING (5X12)

93903-25220

$1.49

23

NUT, FLANGE (8MM)

94050-08000

$1.49

24

BOLT, FLANGE (6X16)

95701-06016-07

$1.55

25

BOLT, FLANGE (6X22)

96001-06022-00

$1.49
