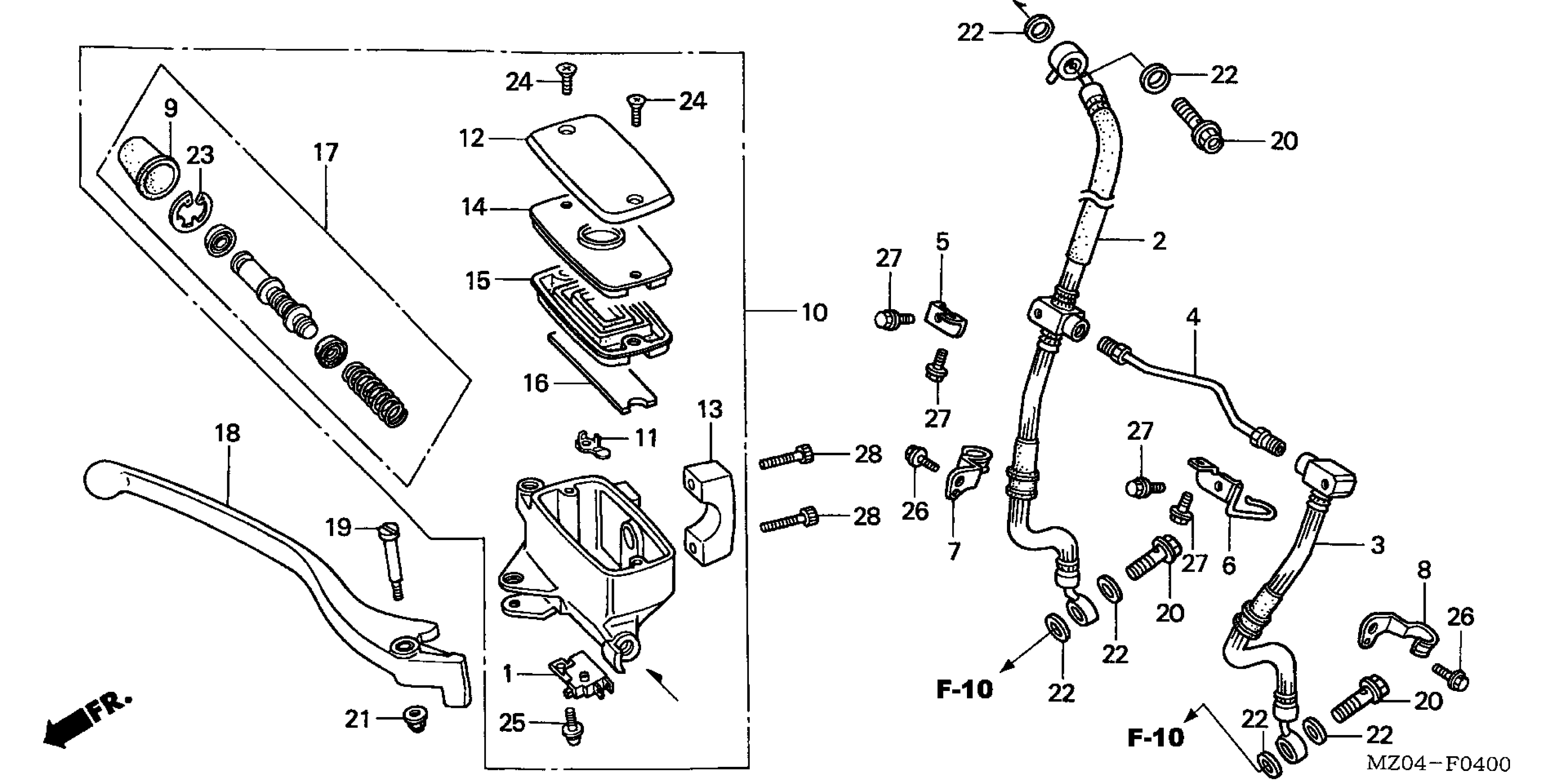

Honda GL1500CDA (02) VALKYRIE, USA, VIN# 1HFSC346-2A500001 FRONT BRAKE MASTER CYLINDER Diagram

SWITCH ASSY., FR. STOP

35340-MM5-600

$22.13

HOSE, R. FR. BRAKE This part replaces 45125-MZ0-A50.

45125-MZ0-A41

$42.16

HOSE, R. FR. BRAKE

45125-MZ0-A41

$42.16

HOSE, L. FR. BRAKE

45126-MZ0-A41

Unavailable

HOSE, L. FR. BRAKE This part replaces 45126-MZ0-A50.

45126-MZ0-A41

Unavailable

PIPE, FR. BRAKE

45135-MZ0-000

$5.21

STAY, R. FR. BRAKE HOSE

45155-MZ0-000

Unavailable

STAY, L. FR. BRAKE HOSE

45156-MZ0-000

Unavailable

CLAMP, R. FR. BRAKE HOSE

45157-MZ0-000

$49.23

CLAMP, L. FR. BRAKE HOSE

45158-MZ0-000

$49.23

BOOT

45504-410-003

$12.16

MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN)

45510-MZ0-A41

$135.01

PROTECTOR

45512-MA6-006

$4.28

CAP, MASTER CYLINDER (NISSIN) This part replaces 45513-MR1-006.

45513-MR1-016

$30.62

CAP, MASTER CYLINDER (NISSIN)

45513-MR1-016

$30.62

HOLDER, MASTER CYLINDER (NISSIN)

45517-MR1-671

$27.25

PLATE, DIAPHRAGM

45518-MM5-006

$10.65

DIAPHRAGM

45520-MM5-006

$15.12

FLOAT, FR. MASTER CYLINDER (NISSIN)

45523-MN5-006

$4.49

MASTER CYLINDER SET

45530-MA4-671

$47.76

LEVER, R. HANDLE (COO) This part replaces 53175-MR1-671.

53175-MR1-305

$14.79

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

$9.43

BOLT, OIL (10X22)

90145-MS9-612

$7.54

NUT, CAP (6MM)

90201-415-000

$2.05

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP

90651-MA5-671

$2.66

SCREW, FLAT (4X12)

93600-04012-1A

$1.49

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

BOLT, FLANGE (6X10)

96001-06010-02

$1.54

BOLT, FLANGE (6X12)

96001-06012-07

$1.72

BOLT, SOCKET (6X22)

96600-06022-10

$2.10

BOLT, SOCKET (6X22) This part replaces 96700-06022-10.

96600-06022-10

$2.10
