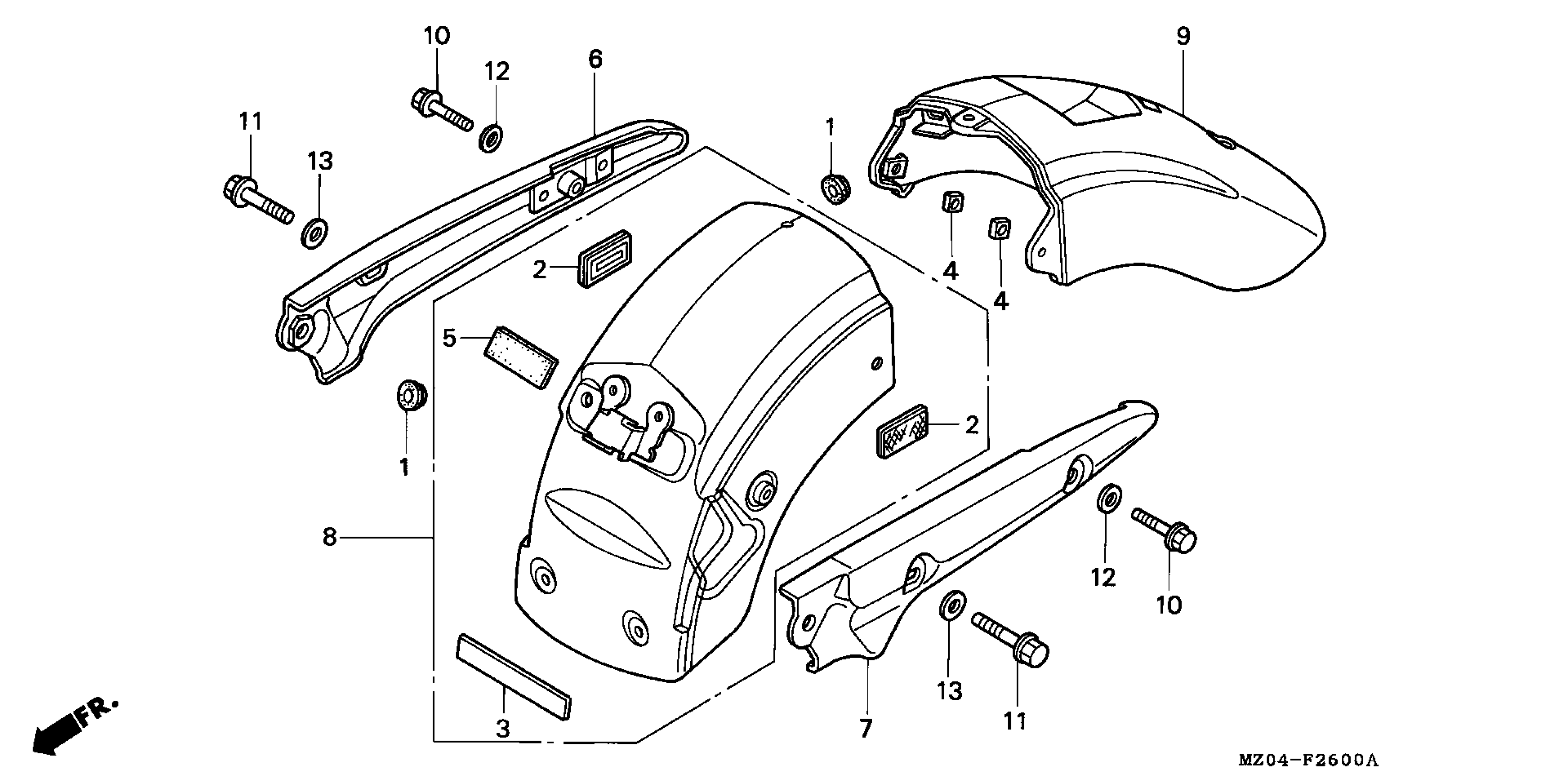

Honda GL1500CDA (01) VALKYRIE, USA, VIN# 1HFSC346-1A400001 REAR FENDER + GRAB RAIL Diagram

GROMMET, WIRE HARNESS

32983-028-000

$1.49

REFLECTOR, REFLEX

33741-MZ7-003

$21.30

RUBBER, FLOOR PLATE

50134-GAM-300

Unavailable

NUT, HEADLIGHT CASE

61303-198-740

Unavailable

PROTECTOR, HOSE

64233-MR7-300

$5.67

GRAB RAIL, R.

77330-MZ0-A40

$135.89

GRAB RAIL, L.

77340-MZ0-A40

$123.84

FENDER A SET, RR. *NH1* (BLACK) This part replaces 80110-MZ0-B00ZA.

80110-MZ0-B30ZA

Unavailable

FENDER A SET, RR. (TYPE1) (WL)

80110-MZ0-B00ZB

Unavailable

FENDER A SET, RR. (TYPE2) (WL) This part replaces 80110-MZ0-B00ZC.

80110-MZ0-B30ZB

$943.12

FENDER A SET, RR. (TYPE2) (WL)

80110-MZ0-B30ZB

$943.12

FENDER B SET, RR. *NH1* (BLACK) This part replaces 80210-MZ0-B00ZA.

80210-MZ0-B30ZA

Unavailable

FENDER B SET, RR. (TYPE1) (WL)

80210-MZ0-B00ZB

Unavailable

FENDER B SET, RR. (TYPE2) (WL) This part replaces 80210-MZ0-B00ZC.

80210-MZ0-B30ZB

$878.95

FENDER B SET, RR. *NH1* (BLACK)

80210-MZ0-B30ZA

Unavailable

BOLT, SPECIAL FLANGE (8X48)

90113-MZ0-000

Unavailable

BOLT, SPECIAL FLANGE (10X50)

90158-438-000

$7.63

WASHER, PLAIN (8MM)

90501-MM8-610

$2.33

WASHER, PLAIN (10MM)

90502-MM8-610

$2.92
