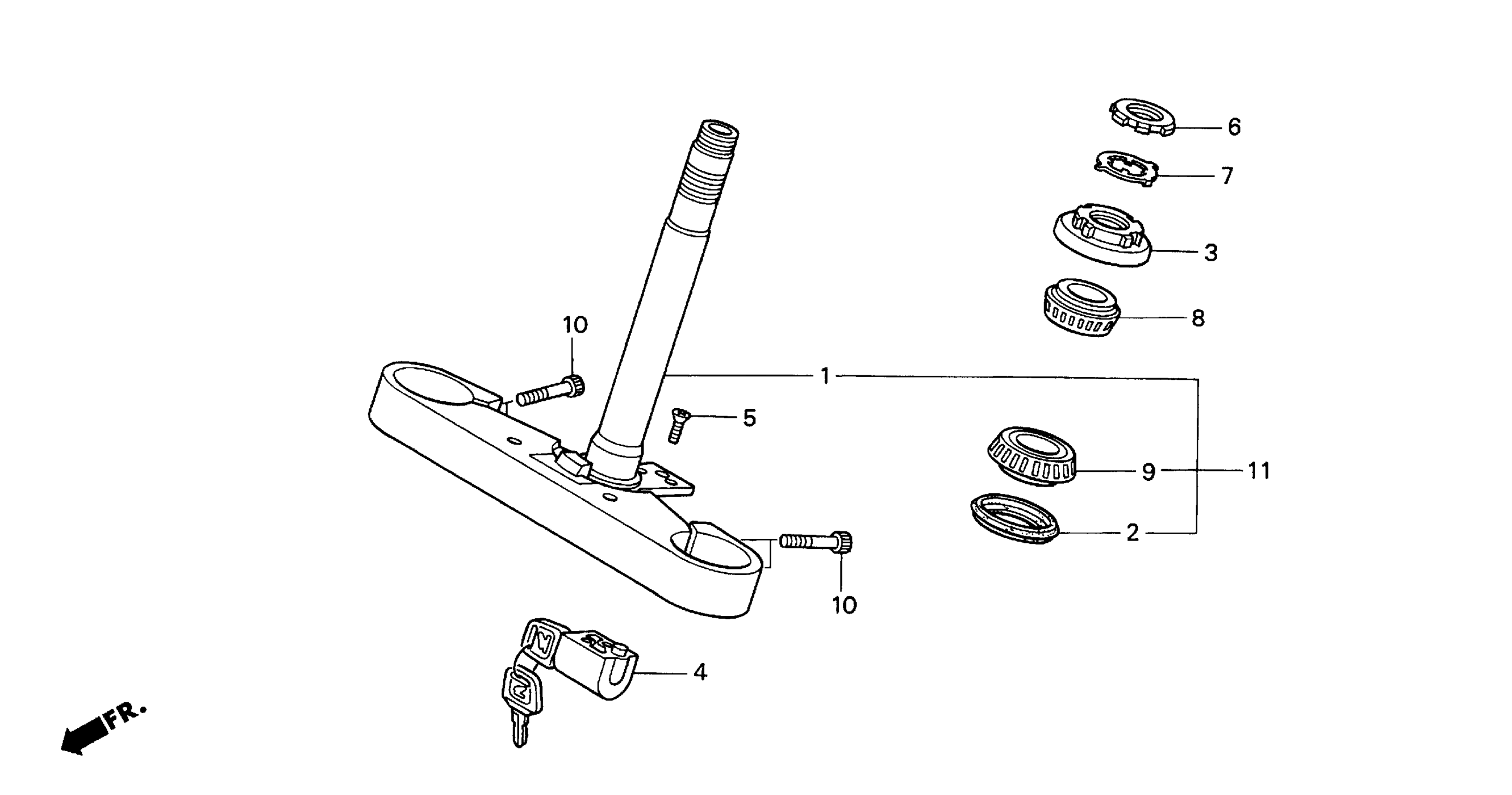

Honda GL1500CA (99) VALKYRIE, USA, VIN# 1HFSC340-XA200001 STEERING STEM Diagram

STEM SUB-ASSY., STEERING This part replaces 53200-MZ0-000.

53219-MZ0-A80

$503.54

STEM SUB-ASSY., STEERING This part replaces 53200-MZ0-010.

53219-MZ0-A80

$503.54

STEM SUB-ASSY., STEERING

53219-MZ0-A80

$503.54

DUST SEAL, STEERING HEAD

53214-371-010

$13.33

THREAD, STEERING HEAD TOP

53220-422-000

$32.73

LOCK, HANDLEBAR (HONDALOCK)

53600-GCN-003

$26.66

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

THREAD B, STEERING HEAD TOP

90302-425-830

$21.73

WASHER, LOCK

90506-425-830

$7.05

BEARING, HEAD PIPE (UPPER) (NACHI) This part replaces 91015-425-831.

91015-425-832

$31.00

BEARING, HEAD PIPE (UPPER) (NACHI)

91015-425-832

$31.00

BEARING, HEAD PIPE (LOWER)

91016-371-000

$55.12

BOLT, SOCKET (8X32)

96600-08032-10

$2.07
