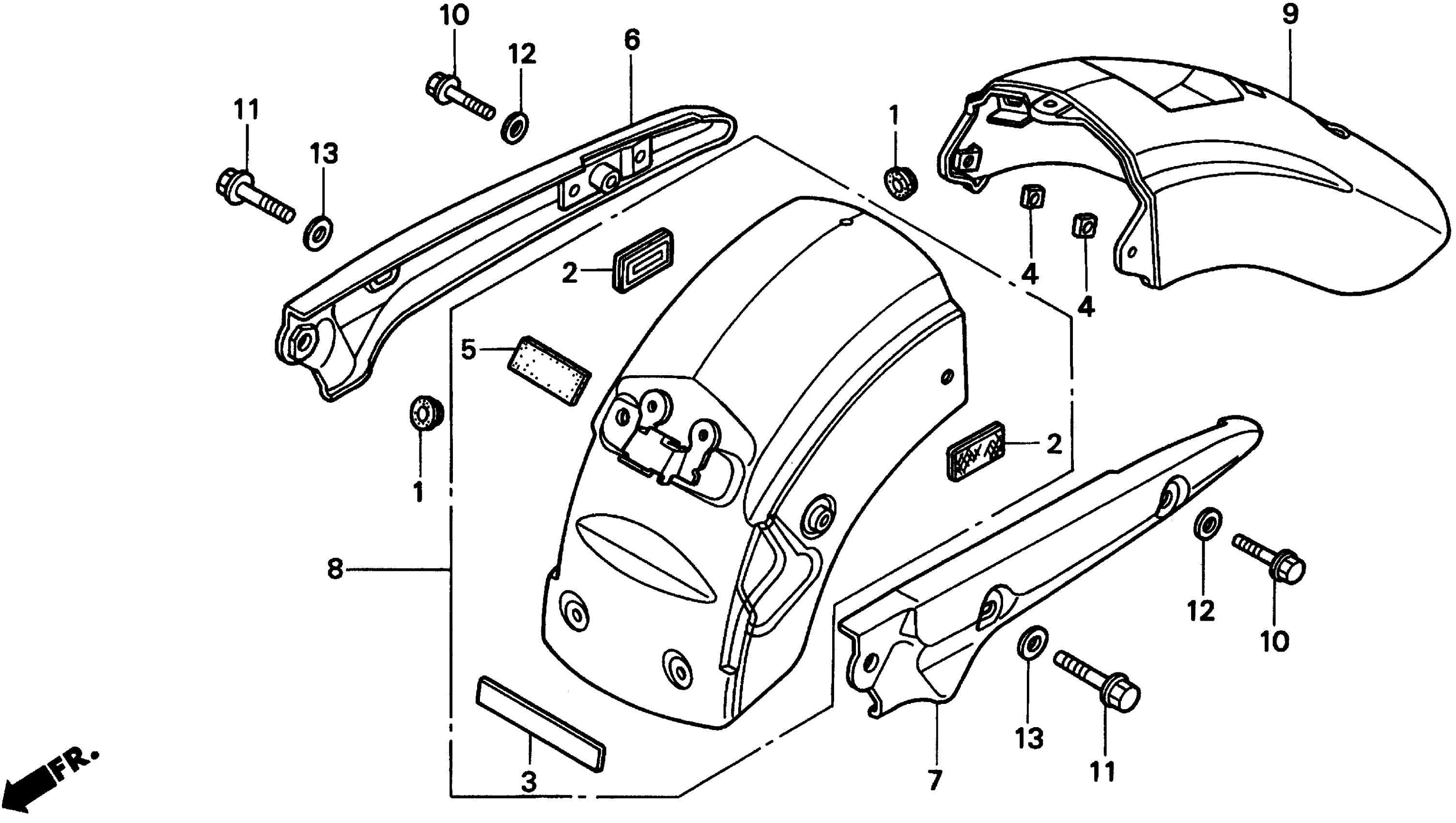

Honda GL1500CA (99) VALKYRIE, USA, VIN# 1HFSC340-XA200001 REAR FENDER + GRAB RAIL Diagram

#

Description
Price

1

GROMMET, WIRE HARNESS

32983-028-000

$1.32

2

REFLECTOR, REFLEX

33741-MZ7-003

$20.57

3

RUBBER, FLOOR PLATE

50134-GAM-300

Unavailable

4

NUT, HEADLIGHT CASE

61303-198-740

Unavailable

5

PROTECTOR, HOSE

64233-MR7-300

Unavailable

6

GRAB RAIL, R.

77330-MZ0-A40

$120.13

7

GRAB RAIL, L.

77340-MZ0-A40

$109.48

8

FENDER A SET, RR. *NH1* (BLACK) This part replaces 80110-MZ0-A40ZC.

80110-MZ0-B30ZA

Unavailable

8

FENDER SET A, RR. (TYPE8) (WL) (SOURCE: VINTAGE PARTS INC.)

80110-MZ0-A40ZE

$977.28

8

FENDER SET A, RR. (TYPE11) (WL) (SOURCE: VINTAGE PARTS INC.)

80110-MZ0-A40ZA

Unavailable

8

FENDER SET A, RR. (TYPE12) (WL) (SOURCE: VINTAGE PARTS INC.)

80110-MZ0-A40ZB

Unavailable

8

FENDER SET A, RR. (TYPE8) (WL) (SOURCE: VINTAGE PARTS INC.) This part replaces 80110-MZ0-A40ZD.

80110-MZ0-A40ZE

$977.28

9

FENDER B SET, RR. *NH1* (BLACK) This part replaces 80210-MZ0-A00ZA.

80210-MZ0-B30ZA

Unavailable

9

FENDER B SET, RR. *NH1* (BLACK) This part replaces 80210-MZ0-A40ZC.

80210-MZ0-B30ZA

Unavailable

9

FENDER B SET, RR. *NH1* (BLACK) This part replaces 80210-MZ0-670ZH.

80210-MZ0-B30ZA

Unavailable

9

FENDER B SET, RR. *NH1* (BLACK) This part replaces 80210-MZ0-A40ZM.

80210-MZ0-B30ZA

Unavailable

9

FENDER B SET, RR. *NH1* (BLACK)

80210-MZ0-B30ZA

Unavailable

9

FENDER SET B, RR. (TYPE8) (WL) (SOURCE: VINTAGE PARTS INC.)

80210-MZ0-A40ZG

Unavailable

9

FENDER SET B, RR. (TYPE12) (WL) (SOURCE: VINTAGE PARTS INC.)

80210-MZ0-A40ZL

Unavailable

9

FENDER B SET, RR. *NH1* (BLACK) This part replaces 80200-MZ0-000ZE.

80210-MZ0-B30ZA

Unavailable

9

FENDER SET B, RR. (TYPE11) (WL) (NOT AVAILABLE)

80210-MZ0-A40ZK

Unavailable

10

BOLT, SPECIAL FLANGE (8X48)

90113-MZ0-000

Unavailable

11

BOLT, SPECIAL FLANGE (10X50)

90158-438-000

$7.10

12

WASHER, PLAIN (8MM)

90501-MM8-610

$2.22

13

WASHER, PLAIN (10MM)

90502-MM8-610

$2.80
