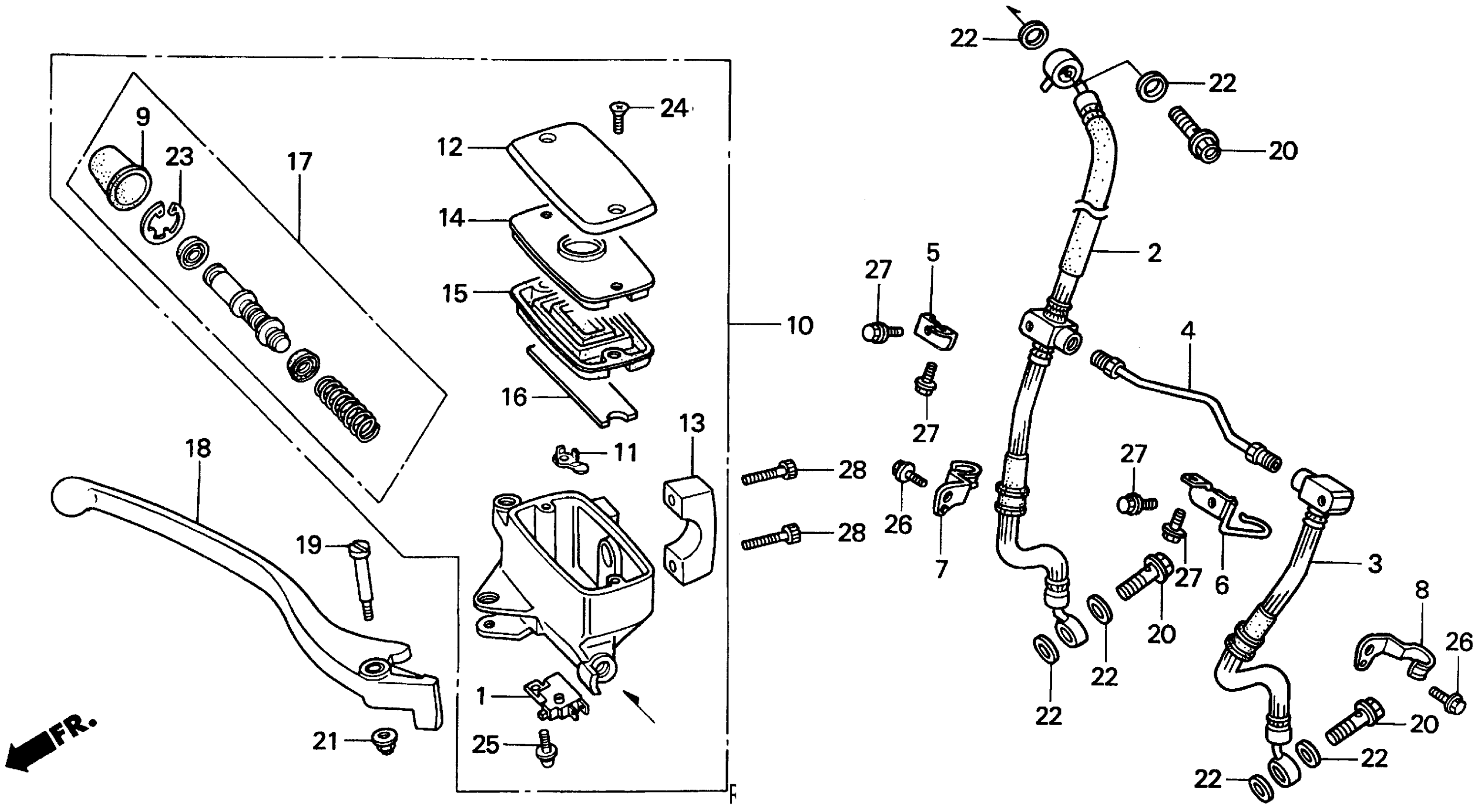

Honda GL1500CA (99) VALKYRIE, USA, VIN# 1HFSC340-XA200001 FR. BRAKE MASTER CYL. Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MM5-600

$19.29

2

HOSE, R. FR. BRAKE

45125-MZ0-A41

$39.54

2

HOSE, R. FR. BRAKE This part replaces 45125-MZ0-A50.

45125-MZ0-A41

$39.54

3

HOSE, L. FR. BRAKE

45126-MZ0-A41

Unavailable

3

HOSE, L. FR. BRAKE This part replaces 45126-MZ0-A50.

45126-MZ0-A41

Unavailable

4

PIPE, FR. BRAKE

45135-MZ0-000

$4.61

5

STAY, R. FR. BRAKE HOSE

45155-MZ0-000

Unavailable

6

STAY, L. FR. BRAKE HOSE

45156-MZ0-000

Unavailable

7

CLAMP, R. FR. BRAKE HOSE

45157-MZ0-000

$43.52

8

CLAMP, L. FR. BRAKE HOSE

45158-MZ0-000

$43.52

9

BOOT

45504-410-003

$10.93

9

BOOT This part replaces 45504-MZ0-760.

45504-410-003

$10.93

10

MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN)

45510-MZ0-A41

$117.71

10

MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN) This part replaces 45510-MZ0-A50.

45510-MZ0-A41

$117.71

11

PROTECTOR (SOURCE: VINTAGE PARTS INC.)

45512-GW3-980

Unavailable

12

CAP, MASTER CYLINDER (NISSIN) This part replaces 45513-MR1-006.

45513-MR1-016

$27.48

12

CAP, MASTER CYLINDER (NISSIN)

45513-MR1-016

$27.48

12

CAP, MASTER CYLINDER (NISSIN) This part replaces 45513-MZ0-890.

45513-MR1-016

$27.48

13

HOLDER, MASTER CYLINDER (NISSIN)

45517-MR1-671

$24.47

13

HOLDER, MASTER CYLINDER (NISSIN) This part replaces 45517-MZ0-760.

45517-MR1-671

$24.47

14

PLATE, DIAPHRAGM

45518-MM5-006

$9.57

14

PLATE, DIAPHRAGM This part replaces 45518-MZ0-760.

45518-MM5-006

$9.57

15

DIAPHRAGM

45520-MM5-006

$13.57

15

DIAPHRAGM This part replaces 45520-MZ0-760.

45520-MM5-006

$13.57

16

FLOAT, FR. MASTER CYLINDER (NISSIN)

45523-MN5-006

$4.18

16

FLOAT, FR. MASTER CYLINDER (NISSIN) This part replaces 45523-MZ0-890.

45523-MN5-006

$4.18

17

MASTER CYLINDER SET

45530-MA4-671

$42.89

17

MASTER CYLINDER SET This part replaces 45530-MZ0-760.

45530-MA4-671

$42.89

18

LEVER, R. HANDLE (COO)

53175-MR1-305

$14.63

18

LEVER, R. HANDLE (COO) This part replaces 53175-MR1-671.

53175-MR1-305

$14.63

18

LEVER, R. HANDLE (COO) This part replaces 53175-MZ0-760.

53175-MR1-305

$14.63

19

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

$8.46

19

BOLT, HANDLE LEVER PIVOT This part replaces 90114-MZ0-760.

90114-MA5-671

$8.46

20

BOLT, OIL (10X22)

90145-MS9-612

$6.82

21

NUT, CAP (6MM)

90201-415-000

$1.96

22

WASHER, OIL BOLT

90545-300-000

$3.72

23

CIRCLIP (INNER) (18MM) This part replaces 90651-MZ0-760.

90651-377-003

$1.77

23

CIRCLIP, INNER (18MM)

90651-377-003

$1.77

24

SCREW, FLAT (4X12)

93600-04012-1A

$0.57

25

SCREW-WASHER (4X12)

93893-04012-07

$1.22

25

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

26

BOLT, FLANGE (6X10)

96001-06010-02

$1.41

27

BOLT, FLANGE (6X12)

96001-06012-07

Unavailable

28

BOLT, SOCKET (6X22)

96600-06022-10

$1.91

28

BOLT, SOCKET (6X22) This part replaces 96700-06022-10.

96600-06022-10

$1.91
