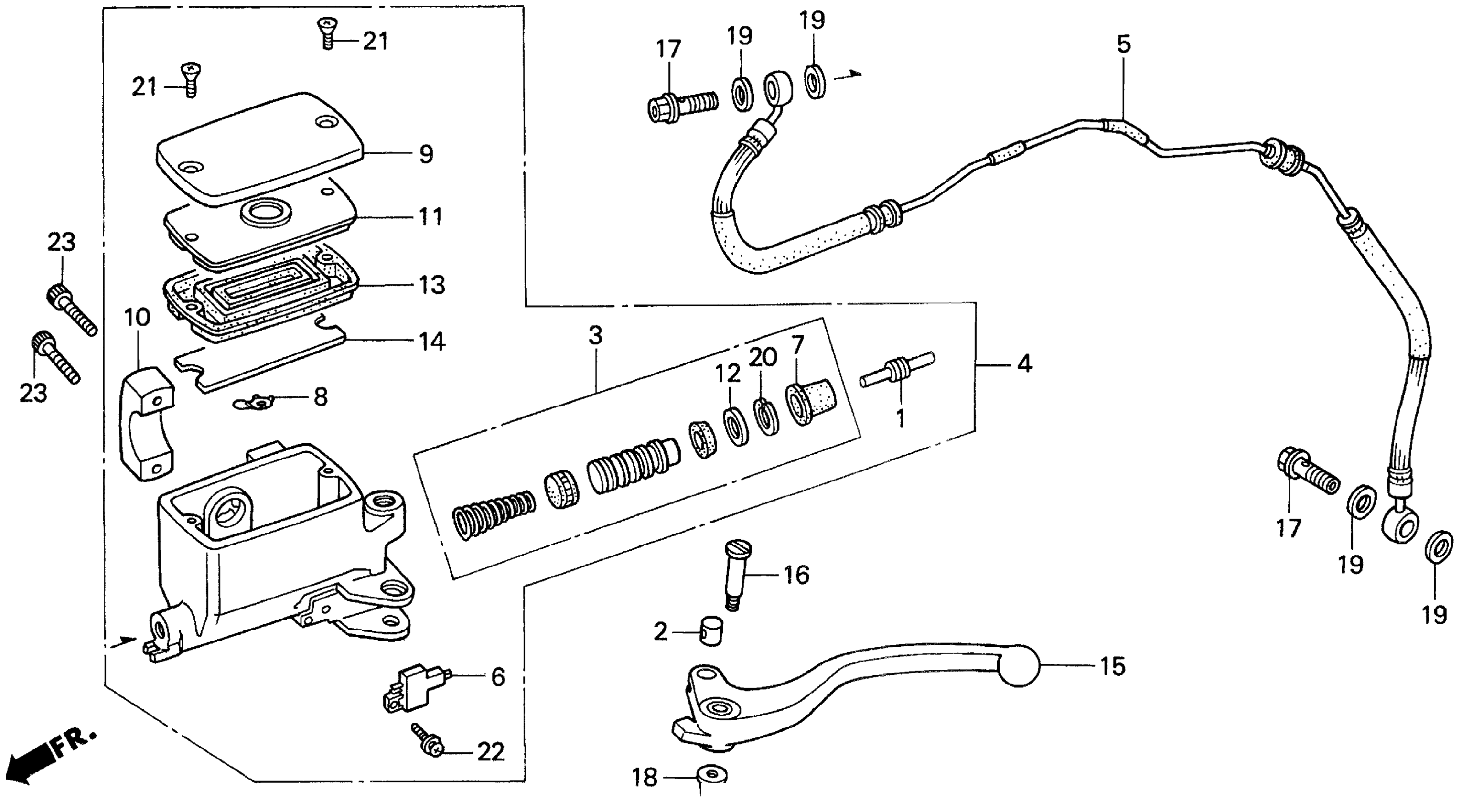

Honda GL1500CA (99) VALKYRIE, USA, VIN# 1HFSC340-XA200001 CLUTCH MASTER CYLINDER Diagram

#

Description
Price

1

ROD, PUSH

22884-MB0-006

$20.66

1

ROD, PUSH This part replaces 22884-MZ0-760.

22884-MB0-006

$20.66

2

BUSH

22885-MB0-006

$12.95

2

BUSH This part replaces 22885-MZ0-760.

22885-MB0-006

$12.95

3

PISTON SET, CLUTCH MASTER CYLINDER

22886-MB4-305

$74.32

3

PISTON SET, CLUTCH MASTER CYLINDER This part replaces 22886-MZ0-760.

22886-MB4-305

$74.32

4

MASTER CYLINDER SUB-ASSY., CLUTCH (NISSIN)

22890-MZ0-A50

Unavailable

4

MASTER CYLINDER SUB-ASSY., CLUTCH (NISSIN)

22890-MZ0-A41

$110.80

5

HOSE, CLUTCH

22900-MZ0-A40

Unavailable

5

PIPE, CLUTCH

22900-MZ0-A41

Unavailable

6

SWITCH ASSY., CLUTCH

35330-MB0-003

$18.22

6

SWITCH ASSY., CLUTCH This part replaces 35330-MZ0-760.

35330-MB0-003

$18.22

7

BOOT

45504-410-003

$12.16

7

BOOT This part replaces 45504-MZ0-760.

45504-410-003

$12.16

8

PROTECTOR (SOURCE: VINTAGE PARTS INC.)

45512-GW3-980

Unavailable

9

CAP, MASTER CYLINDER (NISSIN) This part replaces 45513-MR1-006.

45513-MR1-016

$30.62

9

CAP, MASTER CYLINDER (NISSIN)

45513-MR1-016

$30.62

9

CAP, MASTER CYLINDER (NISSIN) This part replaces 45513-MZ0-890.

45513-MR1-016

$30.62

10

HOLDER, MASTER CYLINDER (NISSIN)

45517-MR1-671

$27.25

10

HOLDER, MASTER CYLINDER (NISSIN) This part replaces 45517-MZ0-760.

45517-MR1-671

$27.25

11

PLATE, DIAPHRAGM

45518-MM5-006

$10.65

11

PLATE, DIAPHRAGM This part replaces 45518-MZ0-760.

45518-MM5-006

$10.65

12

PLATE, STOPPER

45518-MB0-006

$1.84

12

PLATE, STOPPER This part replaces 45518-MZ0-890.

45518-MB0-006

$1.84

13

DIAPHRAGM

45520-MM5-006

$15.12

13

DIAPHRAGM This part replaces 45520-MZ0-760.

45520-MM5-006

$15.12

14

FLOAT, FR. MASTER CYLINDER (NISSIN)

45523-MN5-006

$4.49

14

FLOAT, FR. MASTER CYLINDER (NISSIN) This part replaces 45523-MZ0-890.

45523-MN5-006

$4.49

15

LEVER, L. HANDLE

53178-MM5-006

$21.90

15

LEVER, L. HANDLE This part replaces 53178-MZ0-760.

53178-MM5-006

$21.90

16

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

$9.43

16

BOLT, HANDLE LEVER PIVOT This part replaces 90114-MZ0-760.

90114-MA5-671

$9.43

17

BOLT, OIL (10X22)

90145-MS9-612

$7.54

18

NUT, CAP (6MM)

90201-415-000

$2.05

19

WASHER, OIL BOLT

90545-300-000

$3.99

20

CIRCLIP, INNER (18MM)

90651-377-003

$1.93

20

CIRCLIP (INNER) (18MM) This part replaces 90651-MZ0-760.

90651-377-003

$1.93

21

SCREW, FLAT (4X12)

93600-04012-1A

$1.49

22

SCREW-WASHER (4X12)

93893-04012-07

$1.49

22

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

23

BOLT, SOCKET (6X22)

96600-06022-10

$2.10

23

BOLT, SOCKET (6X22) This part replaces 96700-06022-10.

96600-06022-10

$2.10
