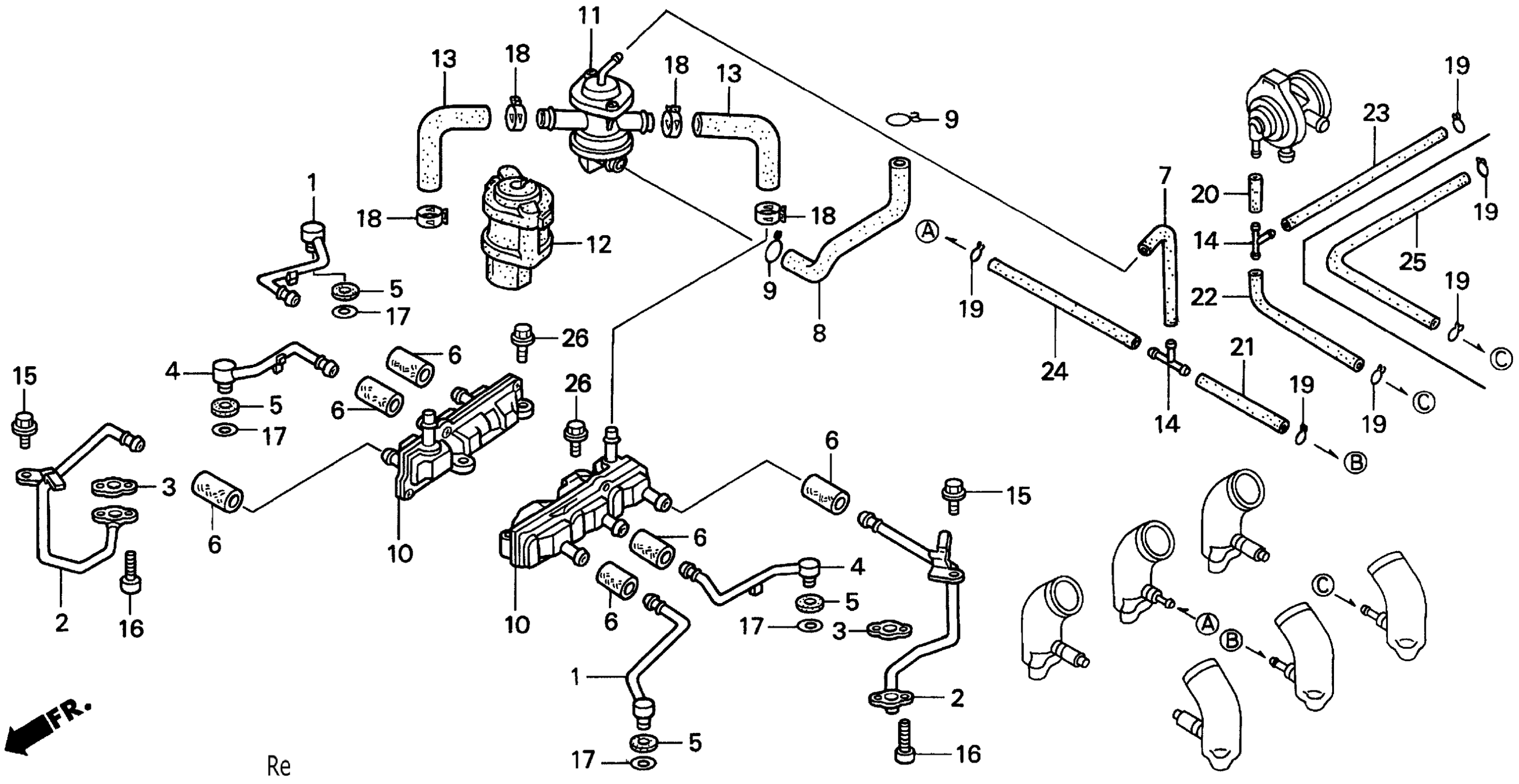

Honda GL1500CA (98) VALKYRIE, USA, VIN# 1HFSC340-WA100001 TUBING Diagram

#

Description
Price

1

PIPE, AIR FEED (A)

17130-MN5-020

Unavailable

2

PIPE, AIR FEED (B)

17140-MN5-000

Unavailable

3

GASKET, AIR FEED PIPE

17142-MN5-000

$2.92

4

PIPE, AIR FEED (C)

17150-MN5-020

Unavailable

5

RUBBER, AIR FEED PIPE

17155-MT2-000

Unavailable

6

HOSE, AIR FEED (A)

17161-MN5-010

$8.85

7

TUBE A, PRESSURE BOOST

17161-MZ0-000

Unavailable

8

TUBE A, AIR IN.

17162-MZ0-000

Unavailable

9

CLIP, BREATHER TUBE

17369-KB4-670

$5.41

10

CASE ASSY., REED VALVE

18610-MW5-000

Unavailable

11

CONTROL VALVE ASSY., PULSE SECONDARY AIR INJECTION

18650-MZ0-671

Unavailable

12

COVER, AIR INJECTION CONTROL VALVE

18653-MZ0-000

Unavailable

13

HOSE, AIR IN.

18654-MZ0-000

Unavailable

14

JOINT, THREE WAY

36010-PA6-004

Unavailable

14

JOINT (THREE-WAY) This part replaces 38773-PB9-000.

36010-PA6-004

Unavailable

15

BOLT, FLANGE (6X14)

90016-MN5-000

$3.89

16

BOLT, SOCKET (6X18)

90040-MN5-000

$3.31

17

O-RING (9.8X2.4)

91305-422-000

$2.47

17

O-RING (9.8X2.4) This part replaces 91352-425-003.

91305-422-000

$2.47

18

CLAMP, FUEL TUBE (D20) (CHUO HATSUJO) This part replaces 91405-PE0-003.

91417-SZ3-003

$6.40

18

CLAMP, FUEL TUBE (D20) (CHUO HATSUJO)

91417-SZ3-003

$6.40

19

CLIP, TUBE (B7)

95002-02070

$1.80

21

BULK HOSE, VACUUM (3.5X8000) (3.5X145)

95005-35008-10M

$105.82

24

BULK HOSE, VACUUM (3.5X8000) (3.5X260)

95005-35008-10M

$105.82

25

BULK HOSE, VACUUM (3.5X8000) (3.5X400)

95005-35008-10M

$105.82

26

BOLT, FLANGE (6X25)

95701-06025-08

$1.72
