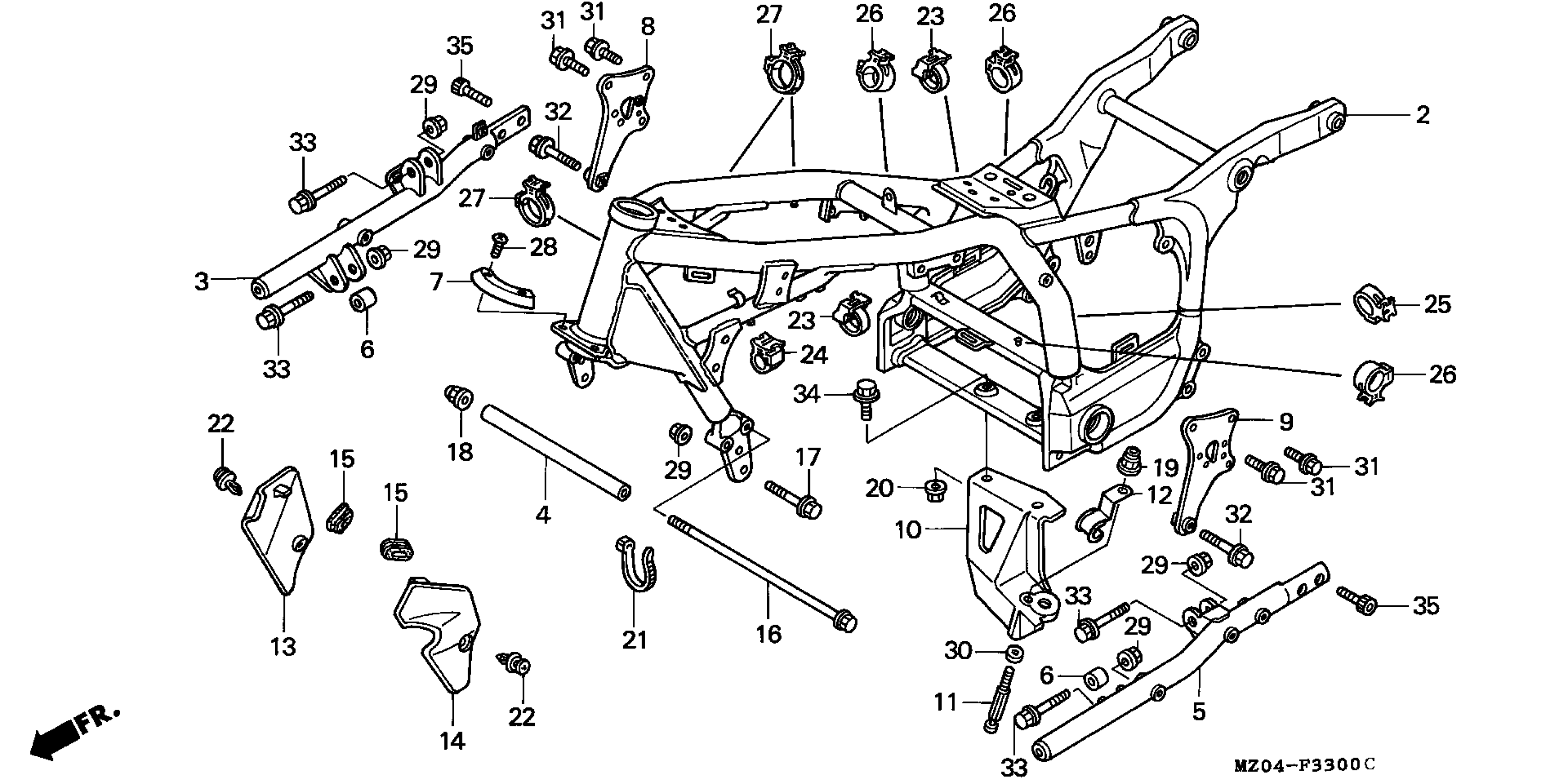

Honda GL1500CA (98) VALKYRIE, USA, VIN# 1HFSC340-WA100001 FRAME Diagram

#

Description
Price

2

FRAME

50100-MZ0-000

$1,270.46

3

SUB-FRAME, R.

50174-MZ0-000

$383.83

4

PIPE, FR. CROSS

50181-MZ0-000

$27.83

5

SUB-FRAME, L.

50184-MZ0-000

Unavailable

6

BUSH, ENGINE HANGER

50200-MZ0-000

Unavailable

7

COVER, HANDLE STOPPER

50341-MZ0-000

$4.25

8

BRACKET, R. ENGINE HANGER

50351-MZ0-000

Unavailable

9

BRACKET, L. ENGINE HANGER

50352-MZ0-000

$24.30

10

BRACKET, SIDE STAND

50535-MZ0-000

Unavailable

11

HOOK, SPRING This part replaces 50536-MZ0-000.

50536-MZ0-010

$6.62

11

HOOK, SPRING

50536-MZ0-010

$6.62

12

CLIP, BREATHER TUBE

50537-MZ0-000

Unavailable

13

COVER, R. FR. SIDE

63500-MZ0-000

Unavailable

14

COVER, L. FR. SIDE

63501-MZ0-000

Unavailable

15

GROMMET A, SIDE COVER

83601-MB0-000

$4.20

16

BOLT, FLANGE (10X36) (NOT AVAILABLE)

90101-MZ0-000

Unavailable

17

BOLT, FLANGE (10X50)

90102-MZ0-000

Unavailable

18

NUT, FLANGE CAP (10MM)

90202-MR1-000

$3.01

19

NUT, U (6MM)

90301-MG3-000

$6.44

20

NUT, FLANGE (12MM) (FUSE RASHI)

90306-KF0-003

Unavailable

21

BAND, WIRE HARNESS

90650-MA6-720

$3.86

22

CLIP, BODY COVER

90683-GR1-003

$2.71

23

CLIP, HARNESS BAND (25MM)

90690-GHB-611

$1.99

23

CLIP, CABLE (20MM)

90690-GHB-661

$1.99

24

CLIP, CABLE (10MM)

90690-GHB-641

$1.99

25

CLIP, CABLE (15MM)

90690-GHB-651

$1.99

26

CLIP, CABLE (25MM)

90690-GHB-671

$1.99

27

CLIP, CABLE (30MM)

90690-GHB-681

$2.80

28

SCREW, PAN (4X6)

93500-04006-0G

$0.75

29

NUT, FLANGE (10MM)

90303-428-900

$3.12

29

NUT, FLANGE (10MM) This part replaces 94050-10070.

90303-428-900

$3.12

30

WASHER, PLAIN (6MM)

94101-06700

$0.86

31

BOLT, FLANGE (8X20)

95701-08020-07

$1.70

32

BOLT, FLANGE (10X50)

95801-10050-00

$5.63

33

BOLT, FLANGE (10X50) (NOT AVAILABLE)

95801-10050-07

$1.84

34

BOLT, FLANGE (12X50) (SOURCE: VINTAGE PARTS INC.)

95801-12050-00

Unavailable

35

BOLT, SOCKET (10X20)

96600-10020-07

$1.81
