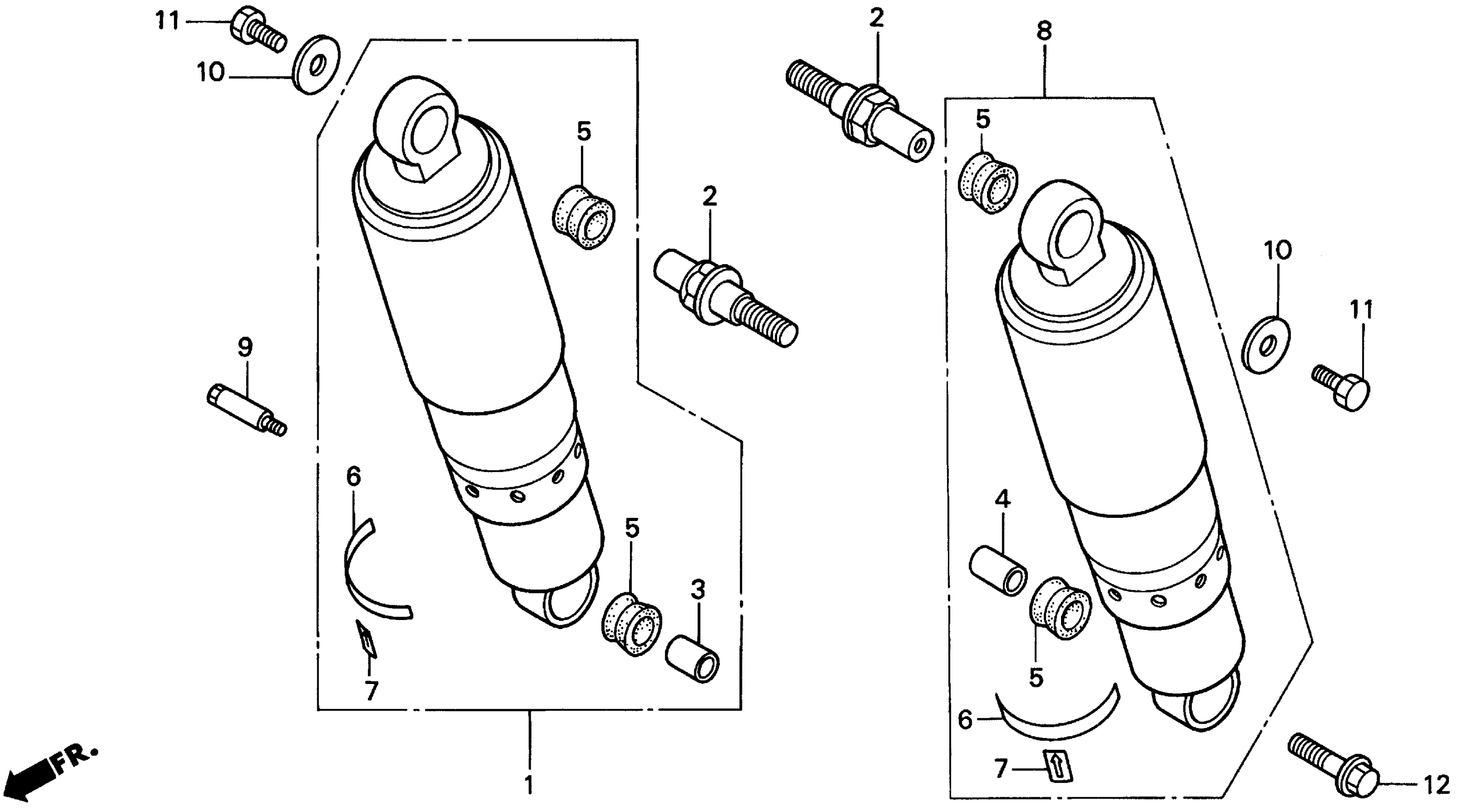

Honda GL1500CA (97) VALKYRIE, USA, VIN# 1HFSC340-VA000001 REAR SHOCK ABSORBER Diagram

SHOCK ABSORBER, R. RR. (SHOWA) (NOT AVAILABLE)

52400-MZ0-003

Unavailable

BOLT, RR. SHOCK ABSORBER This part replaces 52452-MM8-000.

52452-MAH-A40

$19.83

BOLT, RR. SHOCK ABSORBER

52452-MAH-A40

$19.83

COLLAR, RR. SHOCK ABSORBER

52486-MG9-671

$9.54

COLLAR, RR. SHOCK ABSORBER

52486-463-000

$7.23

BUSH, RUBBER

52489-MW3-305

$5.91

LABEL A

52496-MB4-003

$6.88

LABEL B, RR. CUSHION

52497-KR3-003

Unavailable

SHOCK ABSORBER ASSY., L. RR. (SHOWA) (NOT AVAILABLE)

52500-MZ0-003

Unavailable

BOLT, RR. CUSHION

90159-MG9-000

$15.81

WASHER (8.5X26)

90504-MA6-000

$1.58

BOLT, HEX. (8X12)

95501-08012-00

$1.13

BOLT, FLANGE (10X35)

95801-10035-00

$2.03
