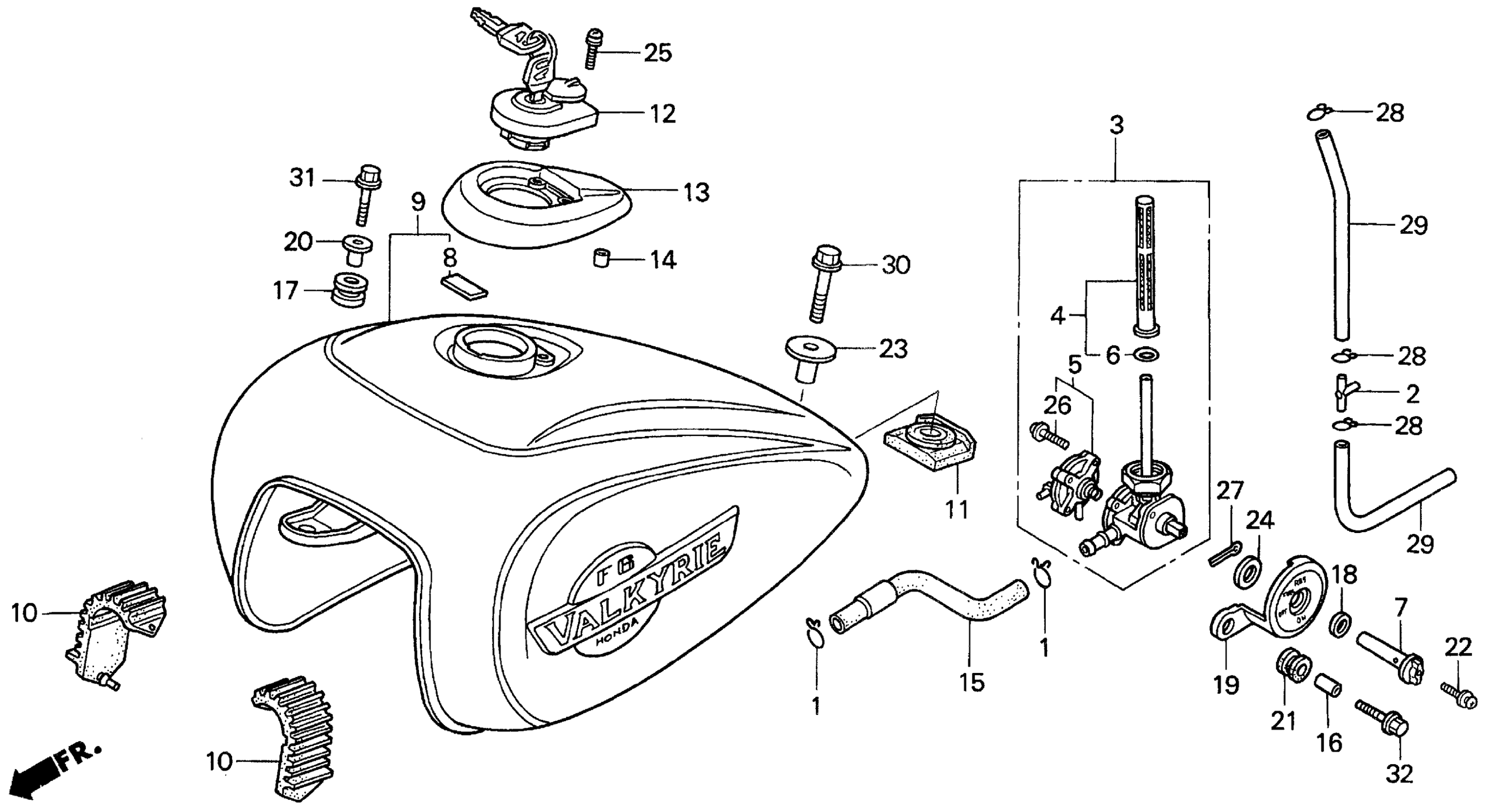

Honda GL1500CA (97) VALKYRIE, USA, VIN# 1HFSC340-VA000001 FUEL TANK Diagram

#

Description
Price

1

CLIP, OIL DRAIN TUBE

15707-634-000

$5.13

2

T-JOINT

16180-195-731

$12.95

3

PETCOCK ASSY., AUTO This part replaces 16950-MZ0-003.

16950-MZ0-033

$207.56

3

PETCOCK ASSY., AUTO This part replaces 16950-MZ0-013.

16950-MZ0-033

$207.56

3

PETCOCK ASSY., AUTO This part replaces 16950-MZ0-023.

16950-MZ0-033

$207.56

3

PETCOCK ASSY., AUTO

16950-MZ0-033

$207.56

4

SCREEN SET, FUEL STRAINER

16952-MZ0-003

$22.69

5

COVER SET, PETCOCK

16953-MBZ-B51

$52.66

5

COVER SET, PETCOCK This part replaces 16953-MV9-000.

16953-MBZ-B51

$52.66

6

O-RING

16958-KM9-005

$3.89

7

LEVER, PETCOCK

16963-MZ0-000

$31.50

8

FILM, PROTECTOR

17503-MY1-300

$3.44

9

TANK SET, FUEL (TYPE2) (WL) (SOURCE: VINTAGE PARTS INC.)

17520-MZ0-670ZC

Unavailable

9

TANK SET, FUEL (TYPE3) (WL) (SOURCE: VINTAGE PARTS INC.)

17520-MZ0-670ZG

Unavailable

9

TANK SET, FUEL (TYPE1) (WL) (NOT AVAILABLE)

17520-MZ0-670ZF

Unavailable

9

TANK SET, FUEL (TYPE5) (WL) (SOURCE: VINTAGE PARTS INC.) This part replaces 17520-MZ0-670ZH.

17520-MZ0-A40ZC

Unavailable

9

TANK SET, FUEL (TYPE5) (WL) (SOURCE: VINTAGE PARTS INC.) This part replaces 17520-MZ0-A00ZA.

17520-MZ0-A40ZC

Unavailable

9

TANK SET, FUEL (TYPE5) (WL) (SOURCE: VINTAGE PARTS INC.)

17520-MZ0-A40ZC

Unavailable

10

CUSHION, FUEL TANK

17611-MZ0-000

Unavailable

11

CUSHION, RR. FUEL TANK

17613-MM8-000

$39.01

12

CAP COMP,FUEL FILLER This part replaces 17620-MW3-680.

17620-MW3-682

$106.30

12

CAP COMP,FUEL FILLER This part replaces 17620-MW3-681.

17620-MW3-682

$106.30

13

COVER, FUEL CAP

17621-MZ0-000

Unavailable

14

RUBBER, CAP COVER

17623-MZ0-000

Unavailable

15

TUBE, FUEL

17701-MZ0-000

$5.42

16

COLLAR, THROTTLE LEVER

17879-758-000

$2.52

17

RUBBER, RADIATOR MOUNTING

19051-GE2-000

$4.98

18

DUST SEAL, BRAKE CAM

43134-300-000

$2.09

19

COVER, PETCOCK LEVER

50356-MZ0-000

Unavailable

20

COLLAR, SETTING

61104-422-000

$6.91

21

RUBBER, HEADLIGHT MOUNTING

61315-958-680

$3.38

22

SCREW-WASHER (5X25)

90020-KV3-000

$3.24

23

COLLAR, FUEL TANK SETTING

90324-MM8-680

Unavailable

24

WASHER, THRUST (17.2MM)

90403-KV3-830

Unavailable

25

SCREW-WASHER (4X16)

93892-04016-00

$1.49

26

SCREW-WASHER (4X16)

93892-04016-08

$1.49

26

SCREW-WASHER (4X16) This part replaces 93892-04016-18.

93892-04016-08

$1.49

27

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$1.49

27

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

27

PIN, SPLIT (2.5X30)

94201-25300

$1.49

28

CLIP, TUBE (B8)

95002-02080

$1.80

29

BULK HOSE, VACUUM (4.5X1000) (4.5X320)

95005-45001-10M

$23.47

30

BOLT, FLANGE (8X35)

95701-08035-07

$1.49

31

BOLT, FLANGE (6X25)

96001-06025-07

$1.49

32

BOLT, FLANGE (6X28)

96001-06028-07

$1.51
