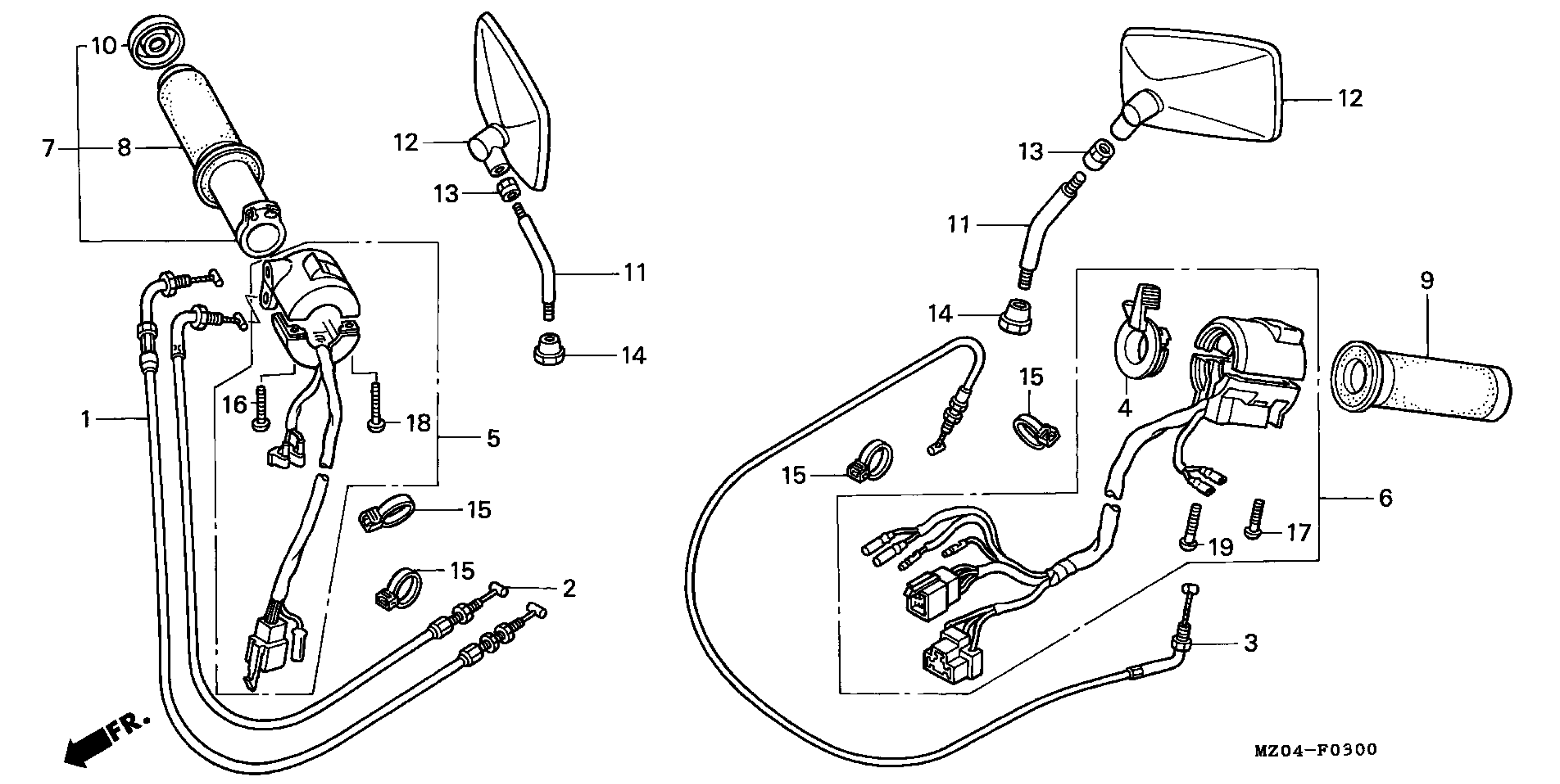

Honda GL1500CA (03) VALKYRIE, USA, VIN# 1HFSC340-3A600001 SWITCH + CABLE Diagram

Description

Price

CABLE A, THROTTLE

17910-MZ0-000

$43.28

CABLE B, THROTTLE

17920-MZ0-000

$43.28

CABLE, CHOKE

17950-MZ0-000

$31.75

LEVER, CHOKE

17962-MZ0-671

$22.04

SWITCH SET, STARTER STOP This part replaces 35013-MZ0-000.

35013-MZ0-020

$127.06

SWITCH SET, TURN SIGNAL

35020-MZ0-670

$146.11

GRIP, R.

53145-MM8-000

$43.84

GRIP, R.

53145-MM8-000

$43.84

GRIP, R. This part replaces 53165-MM8-000.

53145-MM8-000

$43.84

GRIP, L. HANDLE

53166-KCR-000

$36.92

CAP, GRIP END

53167-MM8-000

$9.37

STAY

88215-MAH-000

$26.86

MIRROR, REARVIEW

88310-MZ0-000

$63.95

NUT, LOCK

90314-ME8-000

$14.66

NUT, LOCK

90314-375-000

$12.55

CLIP, CABLE (17MM)

90690-GHB-701

$2.92

SCREW, PAN (5X20)

93500-05020-0B

$1.49

SCREW, PAN (5X22)

93500-05022-0B

$1.49

SCREW, PAN (5X25)

93500-05025-0B

$1.49

SCREW, PAN (5X32)

93500-05032-0B

$1.49
