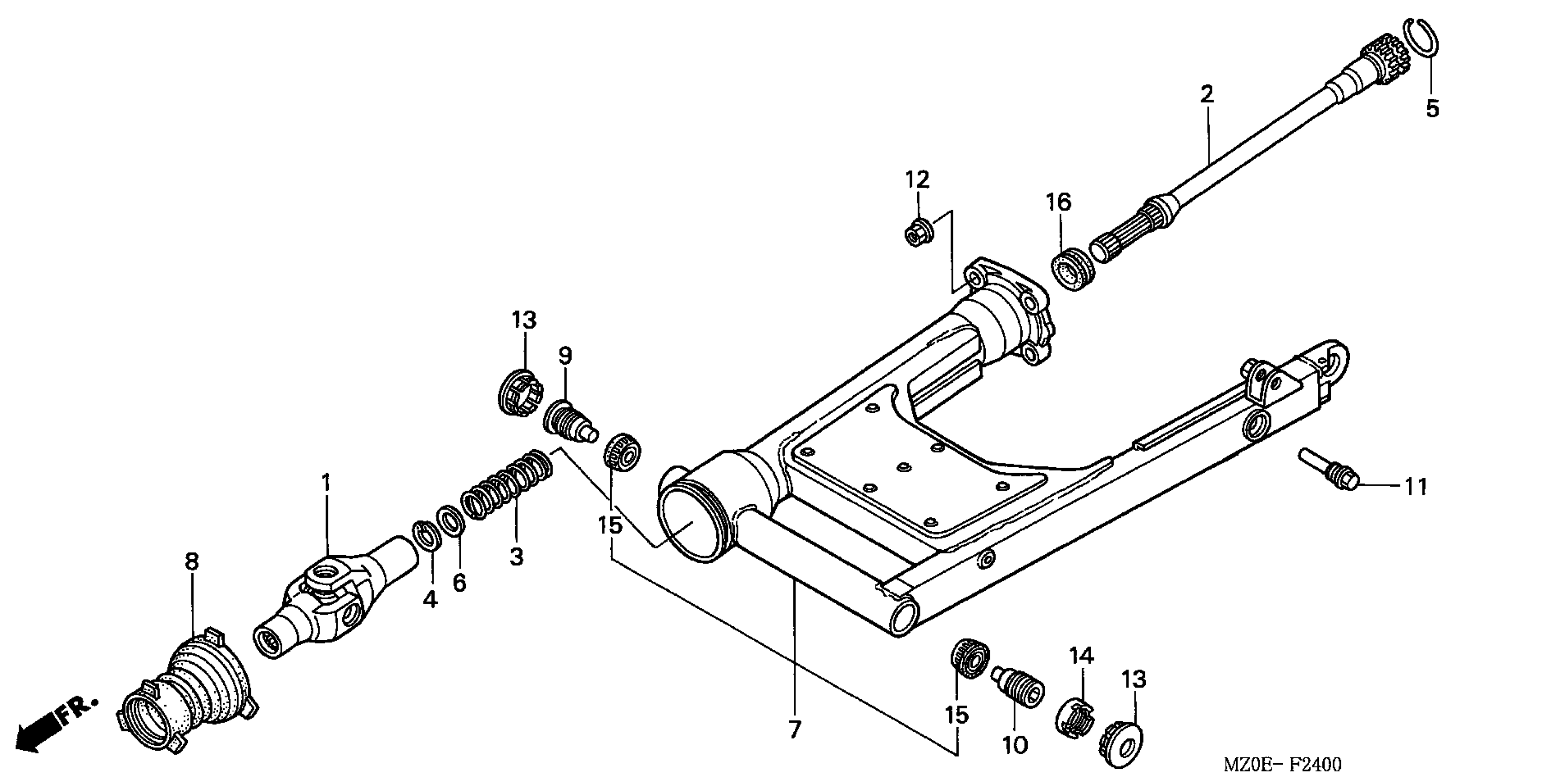

Honda GL1500CA (03) VALKYRIE, USA, VIN# 1HFSC340-3A600001 SWINGARM Diagram

JOINT, YOKE

40200-MZ0-A00

$186.52

SHAFT, PROPELLER

40201-MZ0-A00

$210.12

SPRING, PROPELLER SHAFT

40215-MN5-000

$6.40

CIRCLIP

40219-MG9-000

$3.87

RING, STOPPER

40221-MB0-000

$4.31

STOPPER, PROPELLER SHAFT SPRING

40222-MN5-000

Unavailable

SWINGARM ASSY., RR. (NOT AVAILABLE) This part replaces 52100-MZ0-A40.

52100-MZ0-000

Unavailable

BOOT, JOINT

52104-MZ0-A40

Unavailable

BOLT, R. SWINGARM PIVOT

90121-MAM-A60

$11.03

BOLT, L. SWINGARM PIVOT

90122-MAM-A60

$11.04

BOLT, BRAKE STOPPER

90158-MZ0-000

$24.04

NUT, HEX. (10MM)

90308-357-000

$4.65

CAP, R. LOCK NUT

90312-MB0-700

$16.71

NUT, SWINGARM PIVOT LOCK

90355-469-000

$16.10

BEARING, TAPER ROLLER (17X40X23.5) (NSK)

91066-HA7-672

$56.99

OIL SEAL (27X43X7)

91261-ME9-005

$11.14
