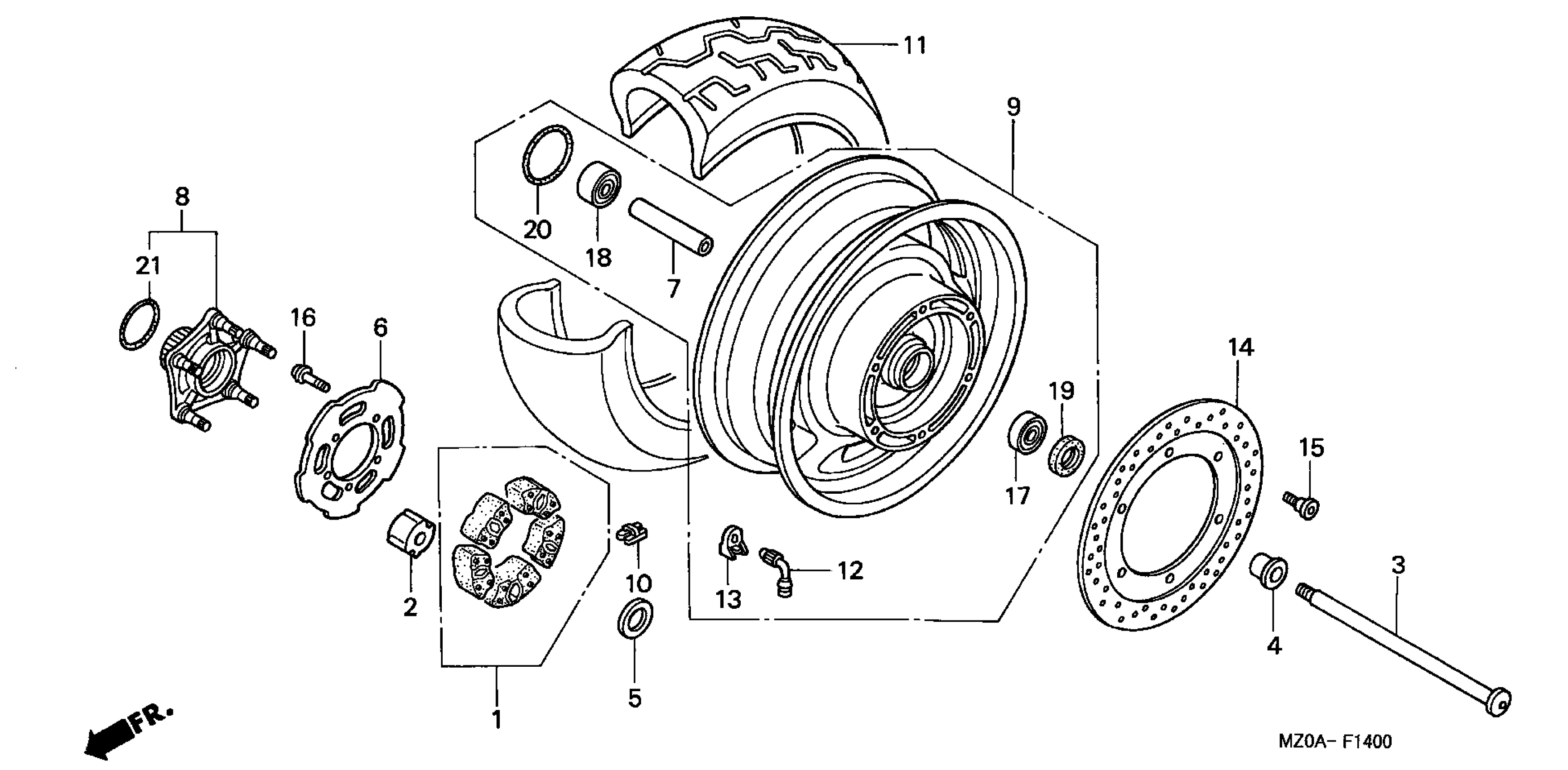

Honda GL1500CA (03) VALKYRIE, USA, VIN# 1HFSC340-3A600001 REAR WHEEL Diagram

#

Description
Price

1

DAMPER SET, WHEEL

06410-MBH-000

$54.62

2

PIECE, DAMPER WHEEL

41242-MR5-000

$17.49

3

AXLE, RR. WHEEL

42301-MZ0-A80

Unavailable

4

COLLAR, RR. BRAKE PANEL SIDE

42313-422-000

$38.23

5

WASHER, THRUST

42616-MAJ-G20

$7.32

6

HOLDER, DAMPER

42617-MT8-000

$42.97

7

COLLAR, RR. AXLE DISTANCE

42620-MZ1-000

Unavailable

8

FLANGE SET, FINAL DRIVEN

42630-MT8-305

$309.64

9

WHEEL SUB-ASSY., RR.

42650-MBY-671

Unavailable

10

WEIGHT, BALANCE (10G) This part replaces 42704-MB0-000.

42704-MCF-D60

$12.74

10

WEIGHT, BALANCE (10G)

42704-MCF-D60

$12.74

10

WEIGHT, BALANCE (20G) This part replaces 42705-MB0-000.

42705-MCF-D60

$15.38

10

WEIGHT, BALANCE (20G)

42705-MCF-D60

$15.38

10

WEIGHT, BALANCE (30G) This part replaces 42706-MB0-000.

42706-MCF-D60

$14.48

10

WEIGHT, BALANCE (30G)

42706-MCF-D60

$14.48

11

TIRE, RR. (180/70R16) (77H) (DUNLOP)

42711-MZ0-A01

Unavailable

12

VALVE, RIM (DUNLOP)

42753-MN5-004

$16.38

13

HOLDER, RIM VALVE

42754-MN5-000

$5.12

14

DISK, RR. BRAKE

43251-MBY-671

$297.34

15

BOLT, DISK (8X24) (TSUKIBOSHI) This part replaces 90105-MBB-000.

90105-MV9-003

$6.21

15

BOLT, DISK (8X24)

90105-MV9-003

$6.21

16

BOLT, DISK (6X17)

90106-MBB-000

$3.65

17

BEARING, RADIAL BALL (6204UU)

91052-MAE-004

$27.50

18

BEARING, RADIAL BALL (20X47X20.6) (NTN)

91053-MN5-003

$74.94

19

DUST SEAL (30X47X8) (NOK) This part replaces 91253-443-761.

91253-443-762

$12.13

19

DUST SEAL (30X47X8)

91253-443-762

$12.13

20

O-RING (61X2)

91302-MA6-003

$5.17

21

O-RING (50.5X3.5) (ARAI)

91358-MG9-003

$3.76
