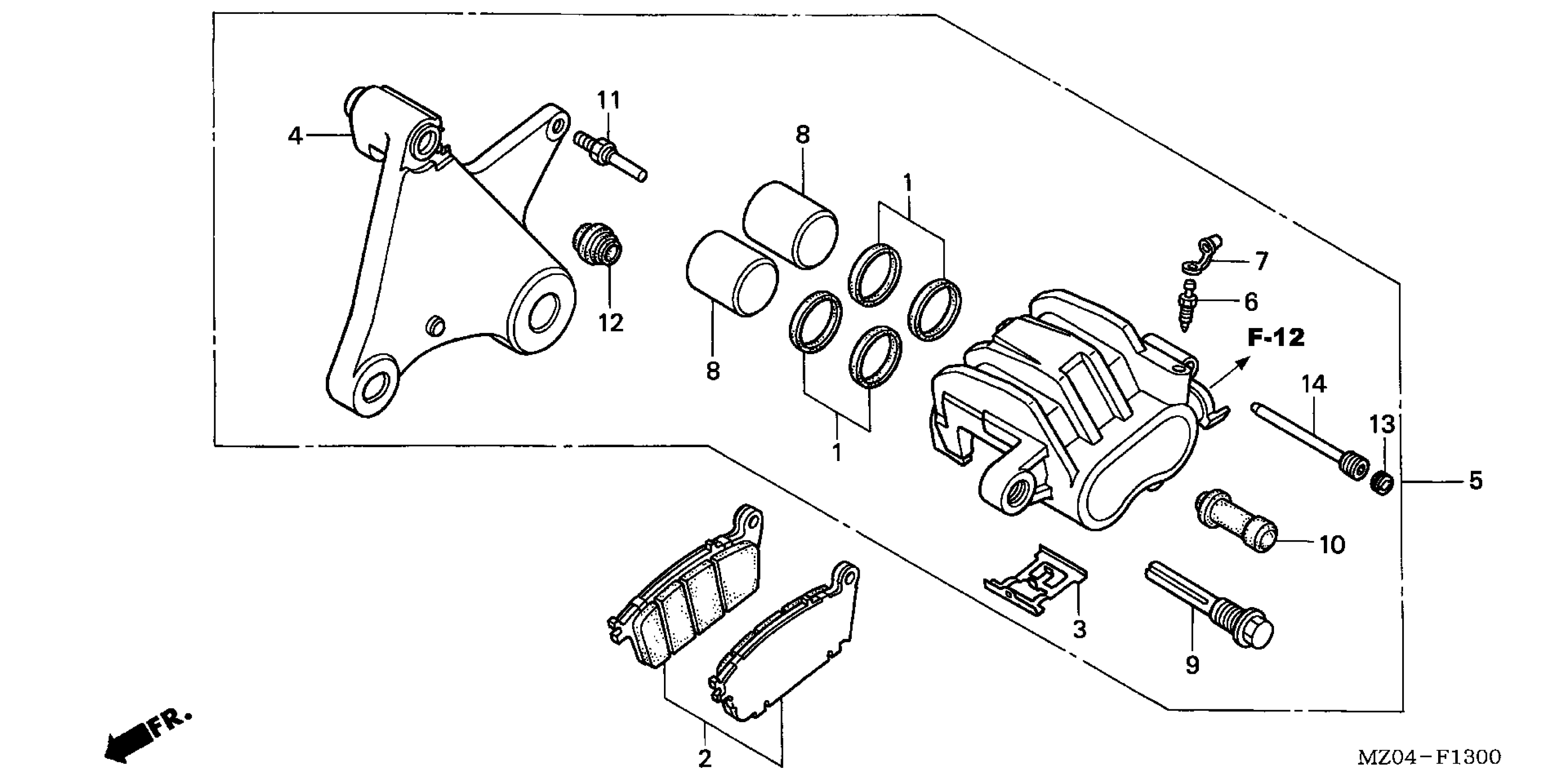

Honda GL1500CA (03) VALKYRIE, USA, VIN# 1HFSC340-3A600001 REAR BRAKE CALIPER Diagram

#

Description
Price

1

SEAL SET, PISTON

06431-MA3-405

$6.82

1

SEAL SET, PISTON This part replaces 06431-MZ0-760.

06431-MA3-405

$6.82

2

PAD SET, RR.

06435-MZ0-006

$47.54

2

PAD SET, RR. This part replaces 06435-MZ0-760.

06435-MZ0-006

$47.54

3

SPRING, PAD

43108-MT3-006

$8.76

3

SPRING, PAD This part replaces 43108-MZ0-760.

43108-MT3-006

$8.76

4

BRACKET, RR.

43110-MZ0-006

Unavailable

4

BRACKET, RR. This part replaces 43110-MZ0-760.

43110-MZ0-006

Unavailable

5

CALIPER SUB-ASSY., RR. BRAKE (NISSIN)

43150-MZ0-006

Unavailable

5

CALIPER SUB-ASSY., RR. BRAKE (NISSIN) This part replaces 43150-MZ0-760.

43150-MZ0-006

Unavailable

6

SCREW, BLEEDER (NISSIN)

43352-HC5-971

$3.93

6

SCREW, BLEEDER (NISSIN) This part replaces 43352-MZ0-760.

43352-HC5-971

$3.93

7

CAP, BLEEDER

43353-KBP-930

$0.78

8

PISTON

45107-ML4-006

$34.00

8

PISTON This part replaces 45107-MZ0-760.

45107-ML4-006

$34.00

9

BOLT, PIN

45131-MA3-006

$15.79

9

BOLT, PIN This part replaces 45131-MZ0-760.

45131-MA3-006

$15.79

10

BOOT, PIN BUSH (NISSIN) This part replaces 45132-GW3-980.

45132-166-016

$5.07

10

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.07

11

BOLT, PIN

45131-166-016

$7.10

11

BOLT, PIN

45137-GW3-980

Unavailable

12

BOOT B

45133-MA3-006

$5.07

12

BOOT B This part replaces 45139-GW3-980.

45133-MA3-006

$5.07

13

PLUG, PIN This part replaces 45203-GW3-980.

45203-MG3-016

$4.76

13

PLUG, PIN

45203-MG3-016

$4.76

14

PIN, HANGER

45215-HE0-016

$9.41

14

PIN, HANGER This part replaces 45215-MZ0-890.

45215-HE0-016

$9.41
