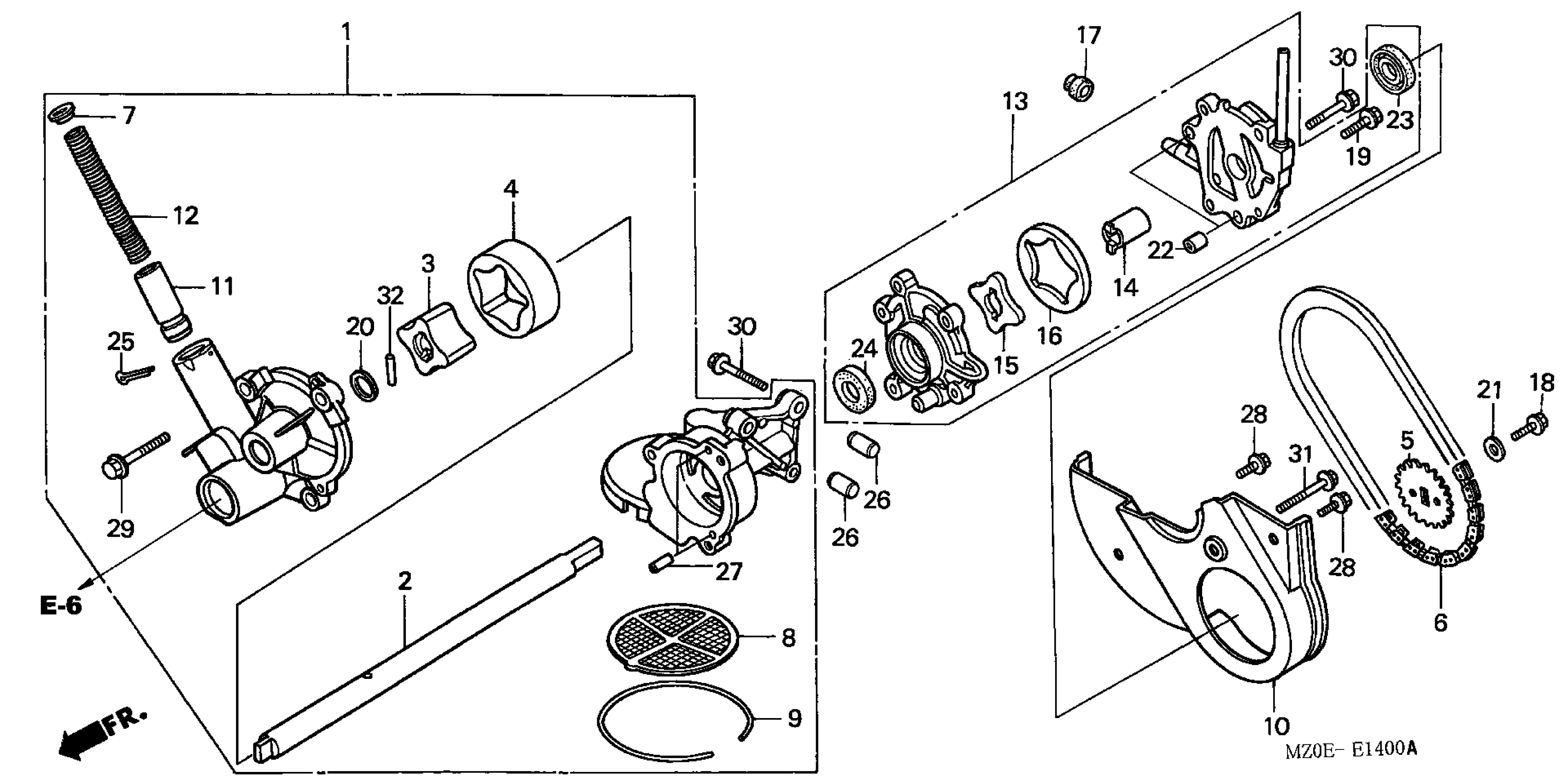

Honda GL1500CA (03) VALKYRIE, USA, VIN# 1HFSC340-3A600001 OIL PUMP Diagram

PUMP ASSY., OIL

15110-MN5-030

Unavailable

SHAFT, OIL PUMP

15111-MN5-020

Unavailable

ROTOR (INNER)

15124-MJ0-000

Unavailable

ROTOR (OUTER)

15125-MJ0-000

$23.66

SPROCKET, OIL PUMP DRIVEN (24T)

15134-MN5-000

Unavailable

CHAIN, OIL PUMP DRIVE (SC-0412HX54L) (DAIDO)

15135-MN5-003

Unavailable

SEAT, RELIEF VALVE

15142-371-000

Unavailable

SCREEN, OIL PUMP

15150-MG7-000

Unavailable

RING, SNAP (92MM)

15160-PA5-003

Unavailable

GUIDE, OIL PUMP CHAIN

15171-MN5-000

Unavailable

VALVE, RELIEF

15231-MN5-010

Unavailable

SPRING, RELIEF VALVE

15232-MN5-000

Unavailable

PUMP ASSY., SCAVENGE OIL

15240-MAM-000

$159.51

COLLAR, OIL PUMP

15243-MN5-010

Unavailable

ROTOR (INNER)

15244-MN5-000

Unavailable

ROTOR (OUTER)

15245-MN5-000

Unavailable

GROMMET, SCAVENGE OIL PUMP

15247-MN5-000

Unavailable

BOLT, HEX. (6X16)

90021-KE8-010

$2.28

BOLT, FLANGE (6X25) (CT200)

90121-952-000

$2.25

WASHER, THRUST (12MM)

90456-MC7-000

$2.72

WASHER (6X2.3)

90488-MB0-000

$4.37

PIN, DOWEL (8X14)

90501-MB0-000

$3.11

OIL SEAL (16X24X4)

91211-MN5-003

Unavailable

OIL SEAL (13X21X4)

91212-MN5-003

$8.02

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

PIN, SPLIT (3.0X45)

94201-30450

$1.49

PIN, DOWEL (8X14)

94301-08140

$2.25

PIN, DOWEL (5X8)

94303-05080

$2.14

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

BOLT, FLANGE (6X32)

95701-06032-08

$1.89

BOLT, FLANGE (6X45)

95701-06045-08

$2.06

ROLLER (5X17.8)

96220-50178

$1.49
