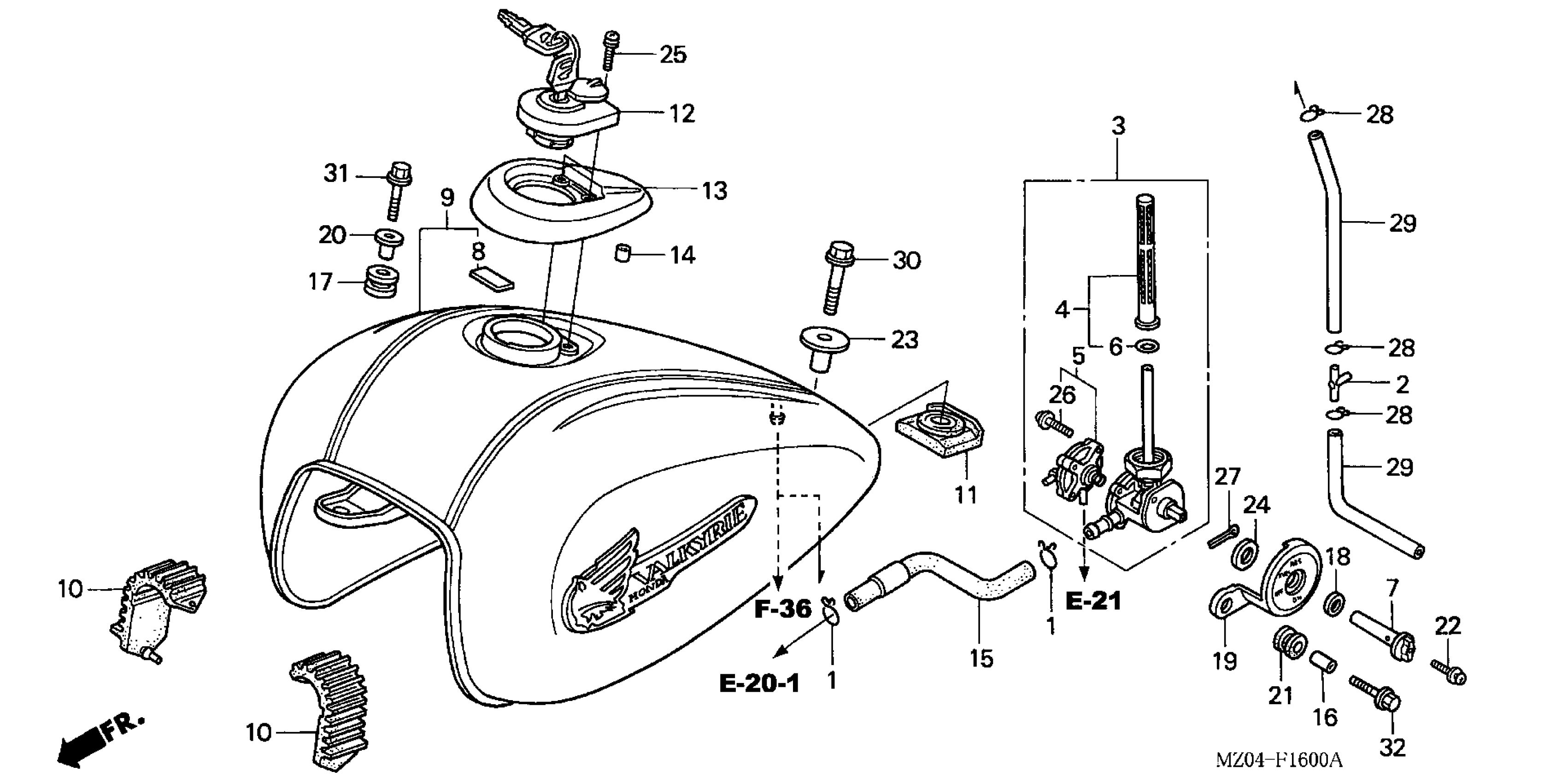

Honda GL1500CA (03) VALKYRIE, USA, VIN# 1HFSC340-3A600001 FUEL TANK Diagram

CLIP, OIL DRAIN TUBE

15707-634-000

$5.13

T-JOINT

16180-195-731

$12.95

PETCOCK ASSY., AUTO This part replaces 16950-MZ0-023.

16950-MZ0-033

$207.56

SCREEN SET, FUEL STRAINER

16952-MZ0-003

$22.69

COVER SET, PETCOCK This part replaces 16953-MV9-000.

16953-MBZ-B51

$52.66

O-RING

16958-KM9-005

$3.89

LEVER, PETCOCK

16963-MZ0-000

$31.50

FILM, PROTECTOR

17503-MY1-300

$3.44

TANK SET, FUEL (TYPE5) (WL) (NOT AVAILABLE) This part replaces 17520-MZ0-B30ZA.

17520-MZ0-A80ZC

Unavailable

RUBBER, FUEL TANK

17611-MZ0-000

Unavailable

RUBBER, RR. FUEL TANK

17613-MM8-000

$39.01

CAP COMP,FUEL FILLER This part replaces 17620-MW3-681.

17620-MW3-682

$106.30

COVER, FUEL CAP

17621-MZ0-000

Unavailable

RUBBER, CAP COVER

17623-MZ0-000

Unavailable

TUBE, FUEL

17701-MZ0-000

$5.42

COLLAR, THROTTLE LEVER

17879-758-000

$2.52

RUBBER, RADIATOR MOUNTING

19051-GE2-000

$4.98

DUST SEAL, BRAKE CAM

43134-300-000

$2.09

COVER, VALVE LEVER

50356-MZ0-000

Unavailable

COLLAR, SETTING

61104-422-000

$6.91

RUBBER, HEADLIGHT MOUNTING

61315-958-680

$3.38

SCREW-WASHER (5X25)

90020-KV3-000

$3.24

COLLAR, FUEL TANK SETTING

90324-MM8-680

Unavailable

WASHER, THRUST (17.2MM)

90403-KV3-830

Unavailable

SCREW-WASHER (4X16)

93892-04016-00

$1.49

SCREW-WASHER (4X16)

93892-04016-08

$1.49

SCREW-WASHER (4X16) This part replaces 93892-04016-18.

93892-04016-08

$1.49

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$1.49

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

PIN, SPLIT (2.5X30)

94201-25300

$1.49

CLIP, TUBE (B8)

95002-02080

$1.80

BULK HOSE, VACUUM (4.5X1000) (4.5X320)

95005-45001-20M

$34.14

BOLT, FLANGE (8X35)

95701-08035-07

$1.49

BOLT, FLANGE (6X25)

96001-06025-07

$1.49

BOLT, FLANGE (6X28)

96001-06028-07

$1.51
