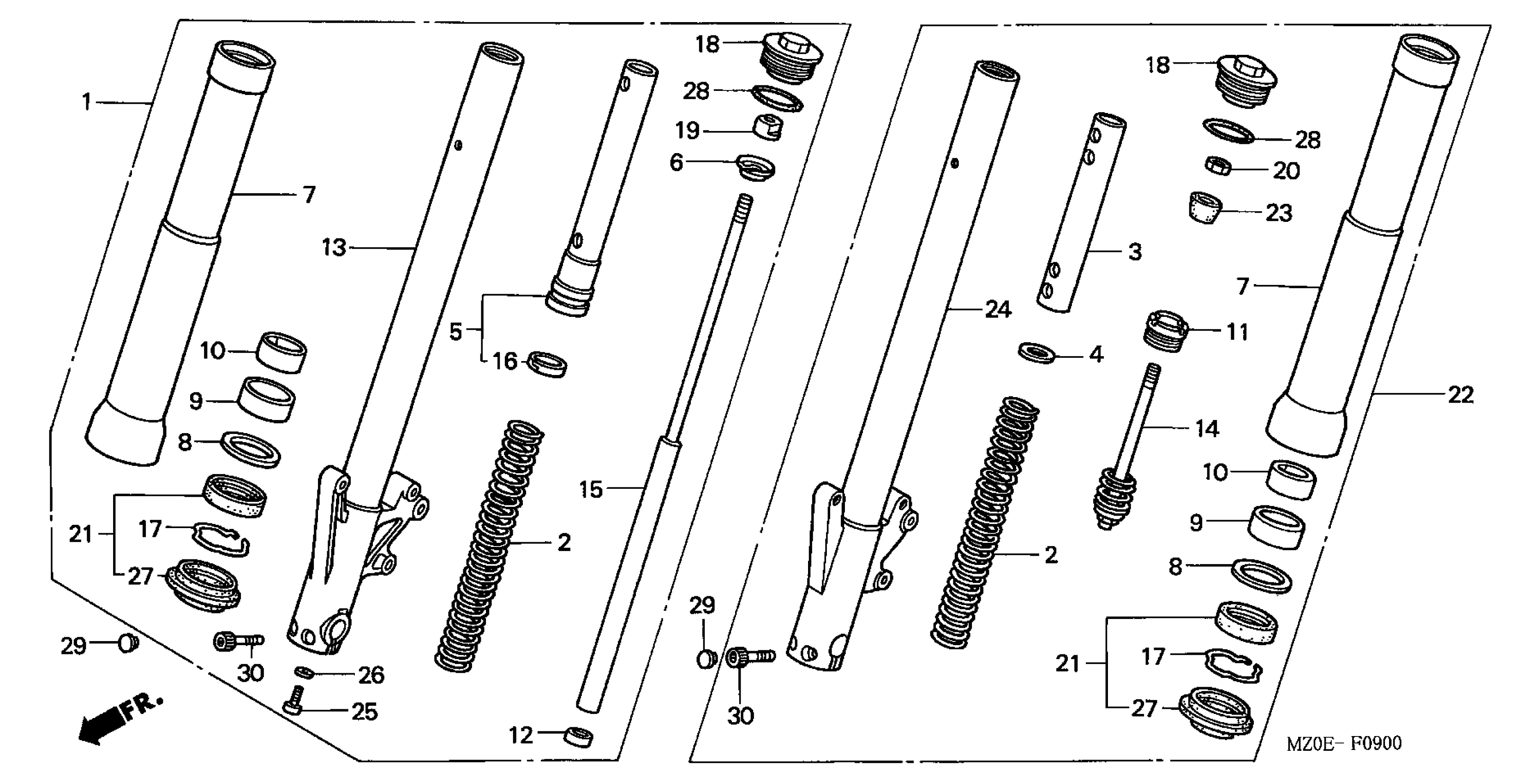

Honda GL1500CA (03) VALKYRIE, USA, VIN# 1HFSC340-3A600001 FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR. (SHOWA)

51400-MZ0-003

Unavailable

2

SPRING, FR. FORK

51401-MZ0-003

Unavailable

3

COLLAR, SPRING

51402-MZ0-003

Unavailable

4

PLATE, SPRING JOINT

51403-MZ0-003

Unavailable

5

COLLAR, SPRING

51404-MZ0-003

Unavailable

6

STOPPER, SPRING SEAT

51408-MZ0-003

$12.58

7

TUBE (OUTER)

51410-MZ0-003

Unavailable

8

RING, BACK-UP

51412-KZ3-003

$8.46

9

BUSH, GUIDE This part replaces 51414-MT7-003.

51414-MCH-003

$20.62

10

BUSH, SLIDER This part replaces 51415-KZ3-701.

51415-MCH-003

$10.66

10

BUSH, SLIDER

51415-MCH-003

$10.66

11

BOLT, FORK PIPE (INNER)

51415-MZ0-003

Unavailable

12

PLATE, CENTERING

51421-MR8-901

Unavailable

13

PIPE, R. SLIDE

51425-MZ0-003

Unavailable

14

ROD

51426-MZ0-003

Unavailable

15

DAMPER, FR.

51430-MZ0-003

Unavailable

16

RING, PISTON

51435-KZ3-701

Unavailable

17

RING, OIL SEAL STOPPER

51447-KZ3-003

$4.76

18

BOLT, FR. FORK

51450-MZ0-003

$109.38

19

NUT, LOCK (SHOWA)

51451-KAE-871

Unavailable

20

NUT, HEX. (10MM)

51451-MAJ-G41

$2.64

21

SEAL SET, FR. FORK

51490-MW0-003

$34.63

22

FORK ASSY., L. FR. (SHOWA)

51500-MZ0-003

Unavailable

23

RUBBER, STOPPER

51517-MZ0-003

$13.90

24

PIPE, L. SLIDE

51525-MZ0-003

Unavailable

25

BOLT, SOCKET (8MM)

90116-KV3-701

$3.62

26

WASHER, SPECIAL (8MM)

90544-283-000

$2.61

27

DUST SEAL

91254-KZ3-003

$15.18

28

O-RING (44.7X2.4)

91356-KZ3-003

$3.66

29

CAP, SOCKET BOLT (8MM)

91455-MB0-010

$3.36

30

BOLT, SOCKET (8X30)

96600-08030-00

$1.90
