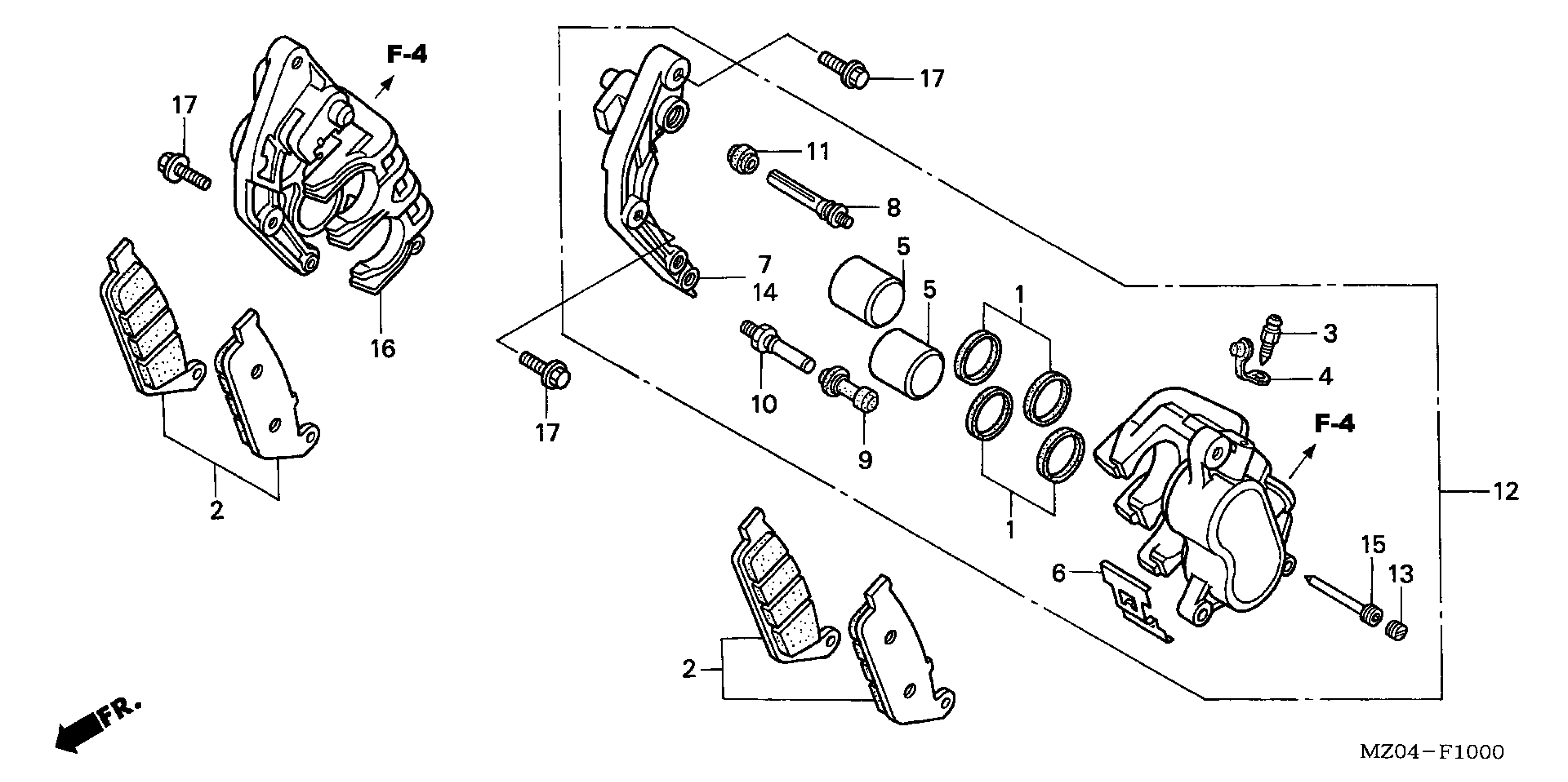

Honda GL1500CA (03) VALKYRIE, USA, VIN# 1HFSC340-3A600001 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

SEAL SET, PISTON

06431-MA3-405

$7.33

1

SEAL SET, PISTON This part replaces 06431-MZ0-760.

06431-MA3-405

$7.33

2

PAD SET, FR.

06455-MV4-405

$55.60

2

PAD SET, FR. This part replaces 06455-MZ0-760.

06455-MV4-405

$55.60

3

SCREW, BLEEDER (NISSIN)

43352-HC5-971

$4.22

3

SCREW, BLEEDER (NISSIN) This part replaces 43352-MZ0-760.

43352-HC5-971

$4.22

4

CAP, BLEEDER

43353-KBP-930

$1.49

5

PISTON

45107-ML4-006

$37.87

5

PISTON This part replaces 45107-MZ0-760.

45107-ML4-006

$37.87

6

SPRING, PAD (NISSIN)

45108-ML7-922

$6.19

6

SPRING, PAD (NISSIN) This part replaces 45108-MZ0-760.

45108-ML7-922

$6.19

7

BRACKET, L. FR.

45110-MZ0-006

Unavailable

7

BRACKET, L. FR. (NOT AVAILABLE) This part replaces 45110-MZ0-760.

45110-MZ0-006

Unavailable

8

BOLT A, PIN

45131-ML7-921

$15.44

8

BOLT A, PIN This part replaces 45131-MZ0-890.

45131-ML7-921

$15.44

9

BOOT, PIN BUSH (NISSIN) This part replaces 45132-GW3-980.

45132-166-016

$5.46

9

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

10

BOLT, PIN

45131-166-016

$7.63

10

BOLT, PIN

45137-GW3-980

Unavailable

11

BOOT B

45133-MA3-006

$5.46

11

BOOT B This part replaces 45139-GW3-980.

45133-MA3-006

$5.46

12

CALIPER SUB-ASSY., L. FR. BRAKE (NISSIN)

45150-MZ0-006

Unavailable

12

CALIPER SUB-ASSY., L. FR. BRAKE (NISSIN) This part replaces 45150-MZ0-760.

45150-MZ0-006

Unavailable

13

PLUG, PIN This part replaces 45203-GW3-980.

45203-MG3-016

$5.12

13

PLUG, PIN

45203-MG3-016

$5.12

14

BRACKET, R. FR.

45210-MZ0-006

Unavailable

14

BRACKET, R. FR. (NOT AVAILABLE) This part replaces 45210-MZ0-760.

45210-MZ0-006

Unavailable

15

PIN, HANGER

45215-ML7-922

$10.67

15

PIN, HANGER This part replaces 45215-MZ0-760.

45215-ML7-922

$10.67

16

CALIPER SUB-ASSY., R. FR. BRAKE (NISSIN)

45250-MZ0-006

Unavailable

16

CALIPER SUB-ASSY., R. FR. BRAKE (NISSIN) This part replaces 45250-MZ0-760.

45250-MZ0-006

Unavailable

17

BOLT, SPECIAL FLANGE (8X32)

90101-MZ8-000

$6.75
