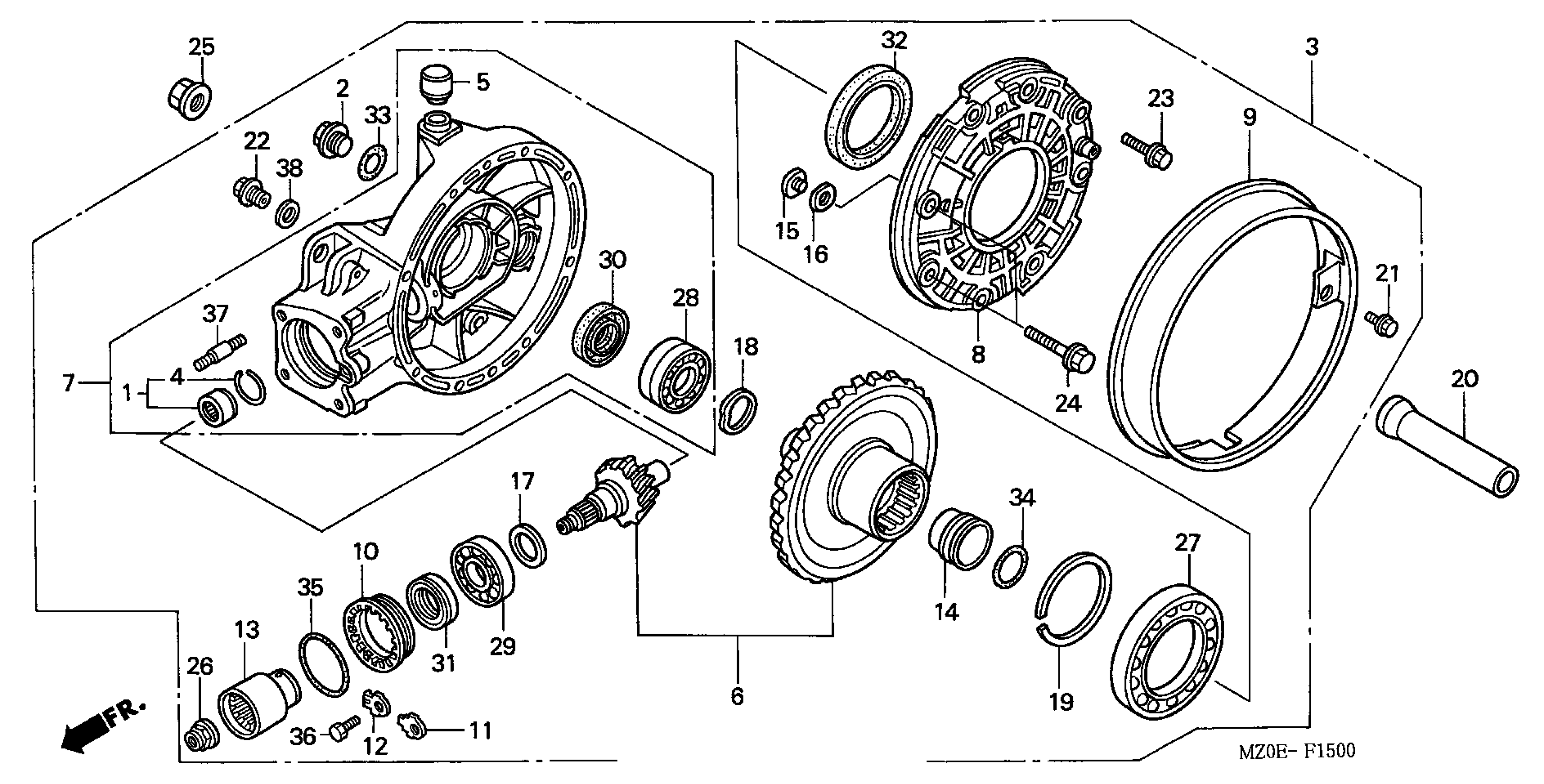

Honda GL1500CA (03) VALKYRIE, USA, VIN# 1HFSC340-3A600001 FINAL DRIVEN GEAR Diagram

#

Description
Price

1

BEARING SET, NEEDLE

06910-MZ0-000

$30.49

2

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

2

CAP, VALVE ADJ.

12361-300-000

Unavailable

2

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

3

GEAR ASSY., FINAL

41300-MZ0-A80

Unavailable

4

RING, STOPPER

41305-MB4-770

$5.19

5

CAP, BREATHER This part replaces 41306-MB0-010.

41306-MB0-020

$8.51

5

CAP, BREATHER

41306-MB0-020

$8.51

6

GEAR SET, FINAL

41310-MZ0-000

Unavailable

7

CASE SUB-ASSY., FINAL GEAR

41311-MZ0-A80

$946.37

8

COVER, GEAR CASE

41321-MN5-000

$185.40

9

PLATE, DUST GUARD

41324-MAJ-G00

$29.66

10

RETAINER, BEARING

41331-MN5-000

$106.56

11

LOCK A, BEARING ADJUSTING (SINGLE TAB)

41332-415-000

$2.32

12

LOCK B, BEARING ADJUSTING (DOUBLE TABS)

41333-415-000

$2.32

13

JOINT, PINION

41410-MN5-000

$57.29

14

HOLDER, O-RING

41433-MG9-000

Unavailable

15

PIN, RING GEAR STOPPER

41436-MB0-310

$29.49

16

SHIM A, STOPPER PIN (0.10)

41437-MB0-310

$5.22

16

SHIM B, STOPPER PIN (0.15)

41438-MB0-310

$4.90

17

SHIM A, PINION GEAR (1.32)

41450-MG9-000

$6.63

17

SHIM B, PINION GEAR (1.38)

41451-MG9-000

$6.63

17

SHIM C, PINION GEAR (1.44)

41452-MG9-000

$6.63

17

SHIM D, PINION GEAR (1.50)

41453-MG9-000

$6.63

17

SHIM E, PINION GEAR (1.56)

41454-MG9-000

$6.63

17

SHIM F, PINION GEAR (1.62)

41455-MG9-000

$6.63

17

SHIM G, PINION GEAR (1.68)

41456-MG9-000

$6.63

18

WASHER, SPECIAL (35X40)

41510-MB0-003

$11.34

19

SPACER A, RING GEAR (1.82)

41530-MG9-000

$11.75

19

SPACER B, RING GEAR (1.88)

41531-MG9-000

$11.75

19

SPACER C, RING GEAR (1.94)

41532-MG9-000

$11.75

19

SPACER D, RING GEAR (2.00)

41533-MG9-000

$11.75

19

SPACER E, RING GEAR (2.06)

41534-MG9-000

$11.59

19

SPACER F, RING GEAR (2.12)

41535-MG9-000

$11.19

19

SPACER G, RING GEAR (2.18)

41536-MG9-000

$11.19

19

SPACER H, RING GEAR (2.24)

41537-MG9-000

$11.75

19

SPACER I, RING GEAR (2.30)

41538-MG9-000

$11.75

20

COLLAR B, RR. DISTANCE

42625-MW5-000

Unavailable

21

BOLT, FLANGE (6X12) (CT200)

90013-883-000

$1.43

22

BOLT, PLUG (14MM)

90081-MC7-000

$10.06

23

BOLT, FLANGE (8X27)

90133-MB0-000

$7.73

24

BOLT, FLANGE (10X35)

90134-HA0-000

$7.53

25

NUT, FLANGE (18MM)

90306-MN5-003

$27.01

26

NUT, HEX. (16MM)

90381-MT3-000

$6.91

27

BEARING, RADIAL BALL (65X100X11) (TOYO)

91051-MN5-003

$97.74

28

BEARING, RADIAL BALL (35X62X18) ( TOYO)

91052-MN5-003

$54.74

29

BEARING, RADIAL BALL (QJ3/28V1)

91061-MT3-003

$62.32

30

OIL SEAL (35X54X8) (NOK)

91261-MY3-003

$13.21

31

OIL SEAL (39X56X7) (NOK)

91262-MY3-003

$12.37

32

OIL SEAL (65X85X7) (NOK)

91265-MY3-003

$15.47

33

O-RING (30.8MM)

91302-001-020

$3.46

34

O-RING (39.5X2.4) (ARAI)

91356-MG9-003

$2.95

35

O-RING (64.5X3.5) (ARAI)

91359-MG9-003

$4.31

36

BOLT, HEX. (6X12)

92101-06012-0A

$1.31

37

BOLT, STUD (10X32)

92900-10032-0E

$3.40

38

WASHER, DRAIN PLUG (14MM)

94109-14000

$0.57
