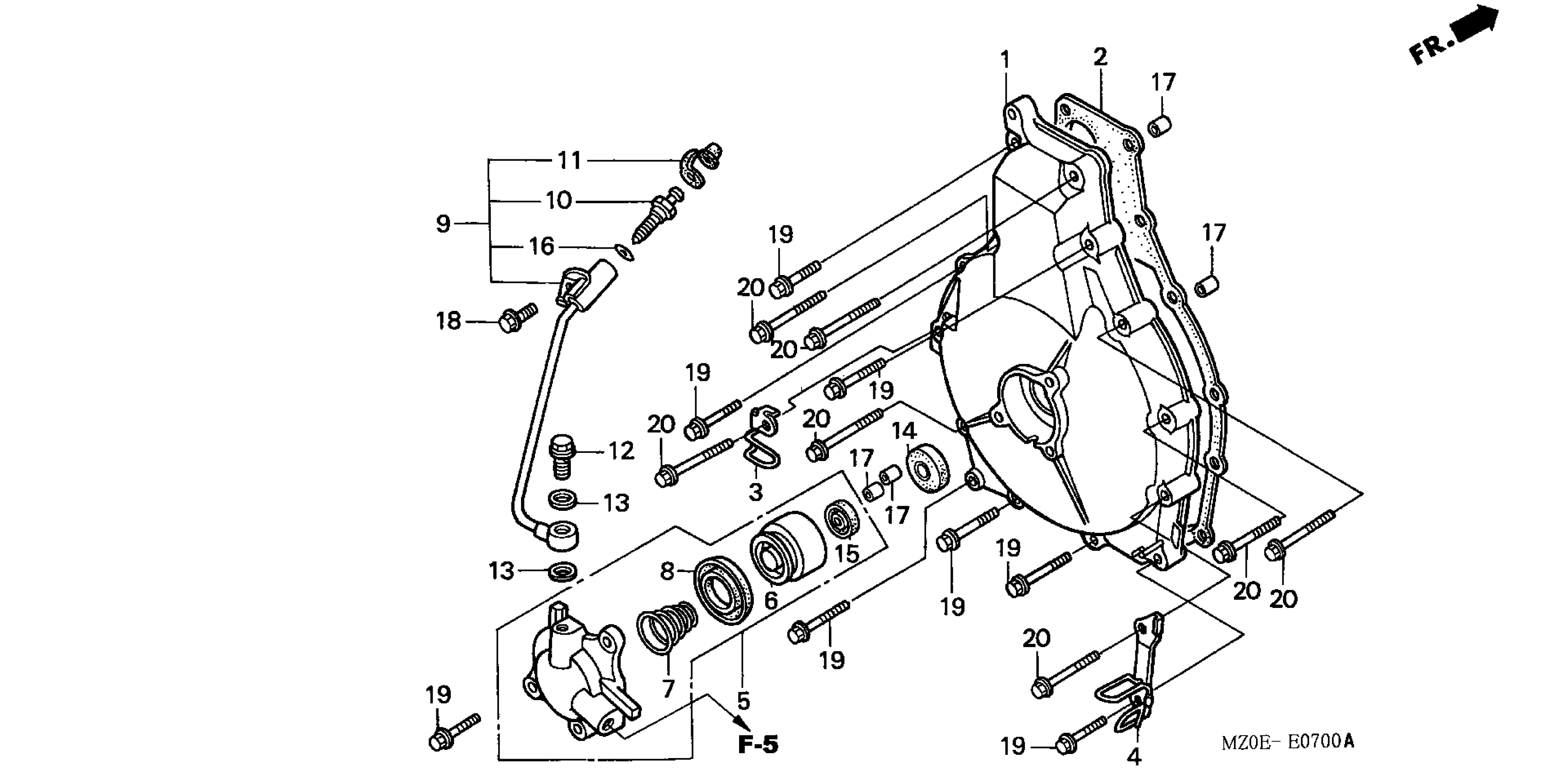

Honda GL1500CA (03) VALKYRIE, USA, VIN# 1HFSC340-3A600001 CLUTCH COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11341-MN5-020

Unavailable

2

GASKET, CLUTCH COVER

11351-MN5-651

$24.66

2

GASKET, CLUTCH COVER This part replaces 11351-MZ0-760.

11351-MN5-651

$24.66

3

CLAMP A, TUBE

11352-MZ0-000

Unavailable

4

CLAMP C, TUBE

11354-MZ0-000

Unavailable

5

CYLINDER ASSY., SLAVE

22860-MZ0-000

$115.34

6

PISTON, SLAVE CYLINDER

22863-MJ8-003

$26.65

7

SPRING, SLAVE CYLINDER

22864-MB0-003

$6.25

8

CUP, SLAVE CYLINDER

22865-MJ8-003

$11.50

9

PIPE ASSY., BLEEDER

22865-MZ0-000

Unavailable

10

SCREW, BLEEDER

43352-MG9-006

$5.44

11

CAP, BLEEDER This part replaces 43353-MG9-006.

43353-461-771

$5.05

11

CAP, BLEEDER This part replaces 43353-443-761.

43353-461-771

$5.05

11

CAP, BLEEDER

43353-461-771

$5.05

12

BOLT, OIL (10X22)

90145-KM3-751

$11.02

13

WASHER, OIL BOLT

90545-300-000

$3.99

14

OIL SEAL (8X25X8) (ARAI)

91204-MB0-013

$4.06

15

OIL SEAL (8X18X5)

91209-MB0-003

$4.06

16

O-RING (5.8X1.9) (NISSIN)

91355-MG9-006

$3.15

17

PIN, DOWEL (8X14)

94301-08140

$2.25

18

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

19

BOLT, FLANGE (6X28)

95701-06028-08

$2.08

20

BOLT, FLANGE (6X40)

95701-06040-08

$1.80
