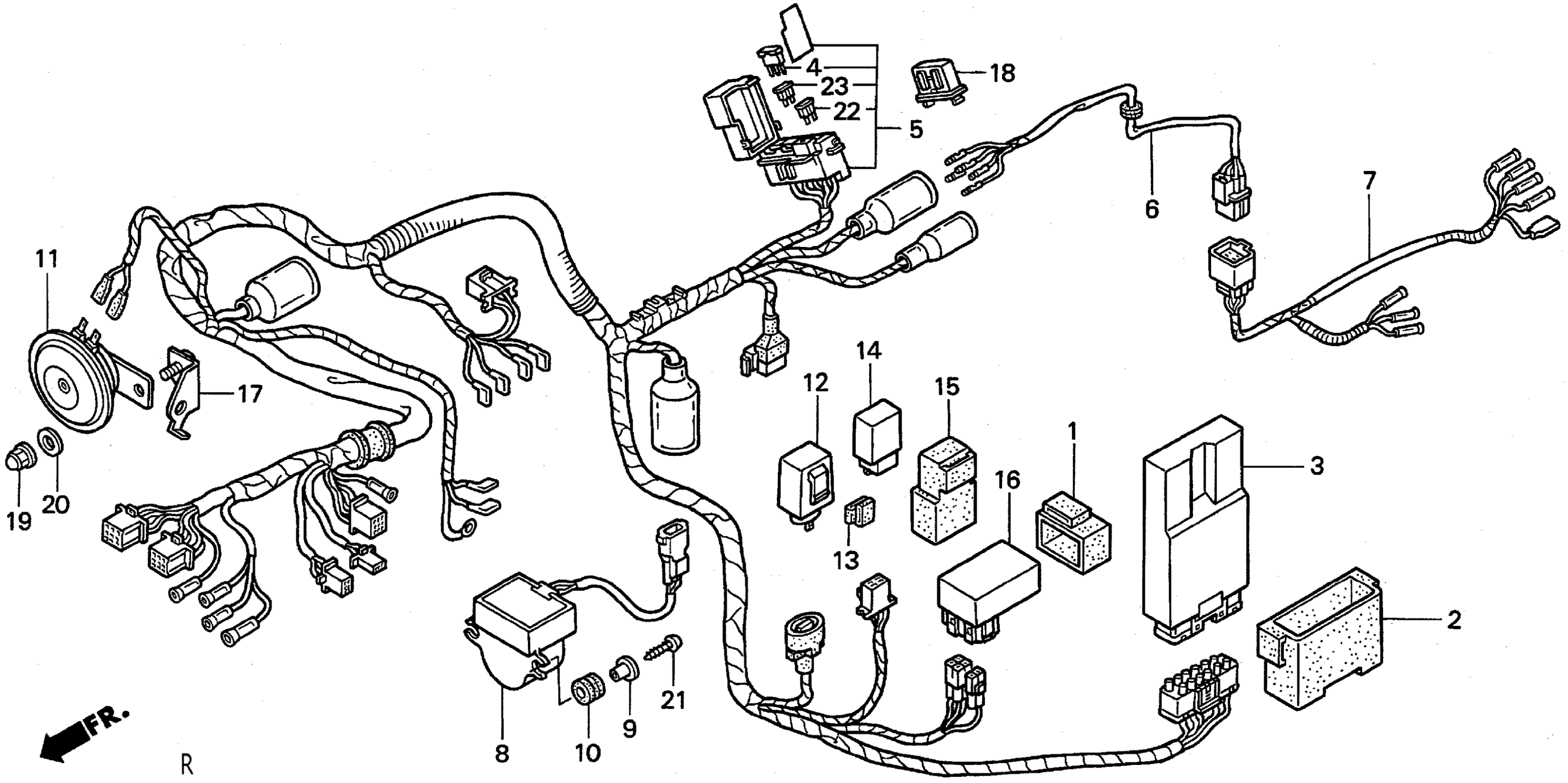

Honda GL1500CA (00) VALKYRIE, USA, VIN# 1HFSC340-YA300001 WIRE HARNESS Diagram

#

Description
Price

2

CUSHION, SPARK UNIT

30405-MT6-000

Unavailable

3

MODULE, IGNITION CONTROL (CDI)

30410-MZ0-671

Unavailable

4

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$10.81

5

WIRE HARNESS

32100-MZ0-A80

$1,020.97

6

SUB-HARNESS, RR.

32102-MZ0-000

$10.89

6

SUB-HARNESS, RR. This part replaces 32102-MZ0-760.

32102-MZ0-000

$10.89

7

SUB-HARNESS, RR.

32103-MZ0-000

Unavailable

7

SUB-HARNESS, RR. This part replaces 32103-MZ0-760.

32103-MZ0-000

Unavailable

8

SENSOR, STOP This part replaces 35161-MZ0-003.

35161-MZ0-023

Unavailable

8

SENSOR, STOP This part replaces 35161-MZ0-013.

35161-MZ0-023

Unavailable

8

SENSOR, STOP

35161-MZ0-023

Unavailable

9

COLLAR

35162-MN5-003

$7.25

10

GROMMET

35163-MN5-003

$3.15

11

HORN ASSY. (LOW) This part replaces 38120-MZ0-A40.

38120-MZ0-G20

Unavailable

11

HORN ASSY. (LOW)

38120-MZ0-G20

Unavailable

12

RELAY, TURN SIGNAL (MITSUBA)

38301-KK9-952

$67.94

13

SUSPENSION, TURN SIGNAL RELAY

38306-GE7-000

$4.74

14

RELAY, STARTER (MITSUBA)

38501-GN2-014

$49.65

15

SUSPENSION, STARTER RELAY (MITSUBA)

38506-GC7-611

$4.49

17

STAY, HORN

50330-MZ0-A40

Unavailable

18

STAY, FUSE BOX

80105-MW3-600

$14.18

19

NUT, CAP (8MM) This part replaces 90301-SA0-000.

90443-KF9-900

$4.27

19

NUT, CAP (8MM)

90443-KF9-900

$4.27

20

WASHER, PLAIN (10MM)

90502-MM8-610

$2.92

21

SCREW, TAPPING (4X25) (NOT AVAILABLE)

93911-14620

Unavailable

22

FUSE, MINI (5A)

98200-40500

$1.49

23

FUSE, MINI (10A)

98200-41000

$1.49
