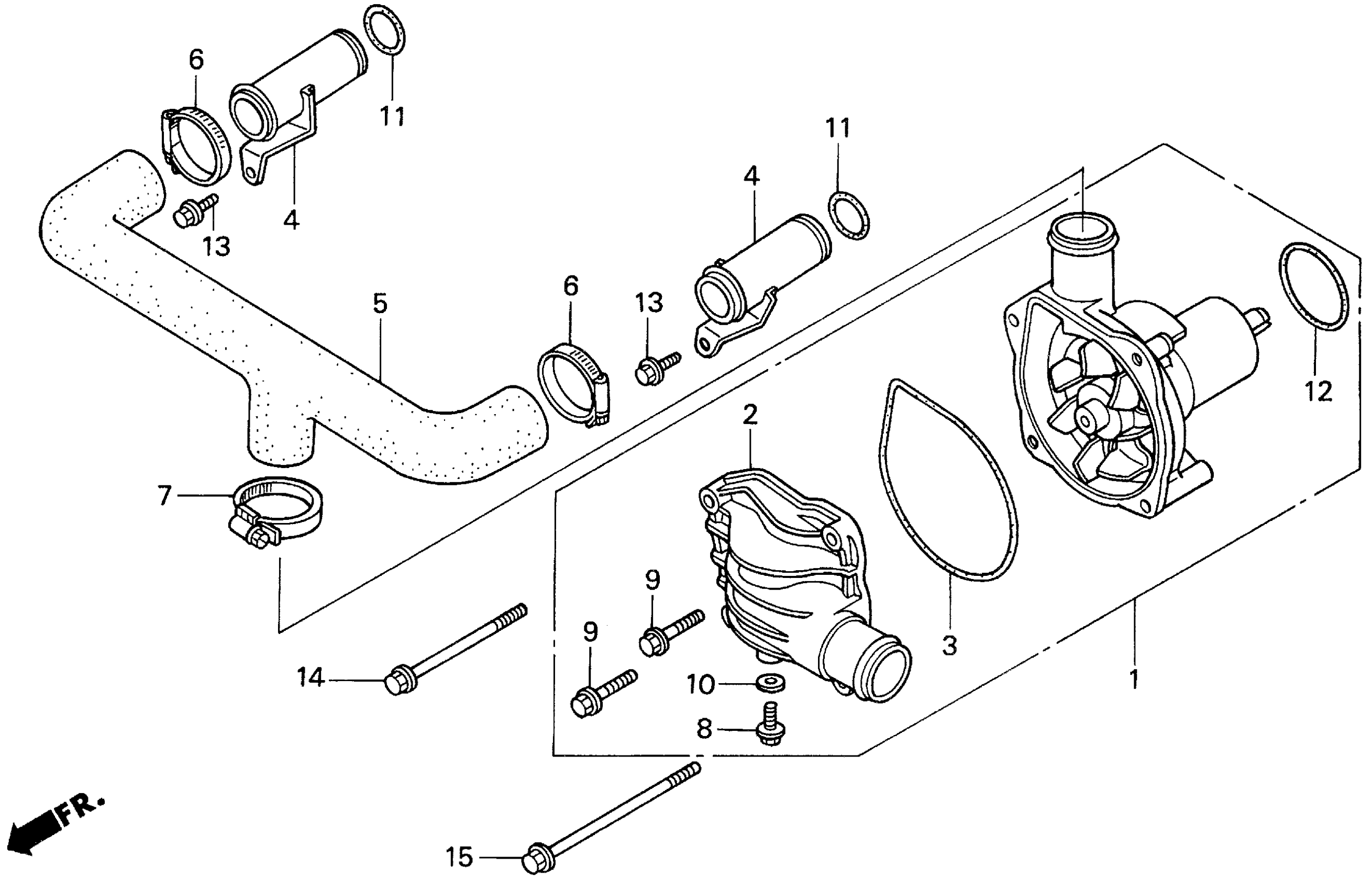

Honda GL1500CA (00) VALKYRIE, USA, VIN# 1HFSC340-YA300001 WATER PUMP Diagram

WATER PUMP ASSY.

19200-MZ0-000

Unavailable

COVER, WATER PUMP

19221-MZ0-305

Unavailable

GASKET, WATER PUMP COVER

19226-MN5-000

$4.94

PIPE, WATER INLET

19411-MN5-000

Unavailable

HOSE, WATER INLET

19414-MN5-000

$52.82

CLAMP, WATER HOSE

19503-MB1-870

$12.56

CLAMP, WATER HOSE

19515-MJ4-670

$17.15

BOLT, FLANGE (6X12) (CT200)

90013-883-000

$1.54

BOLT, FLANGE (6X25) (CT200)

90121-952-000

$2.25

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

O-RING (18.3X2.3) (ARAI)

91301-147-023

$2.20

O-RING (32.95X2.62) (ARAI)

91302-MB0-013

$2.92

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

BOLT, FLANGE (6X60)

95701-06060-08

$2.06

BOLT, FLANGE (6X95)

95701-06095-08

$2.79
