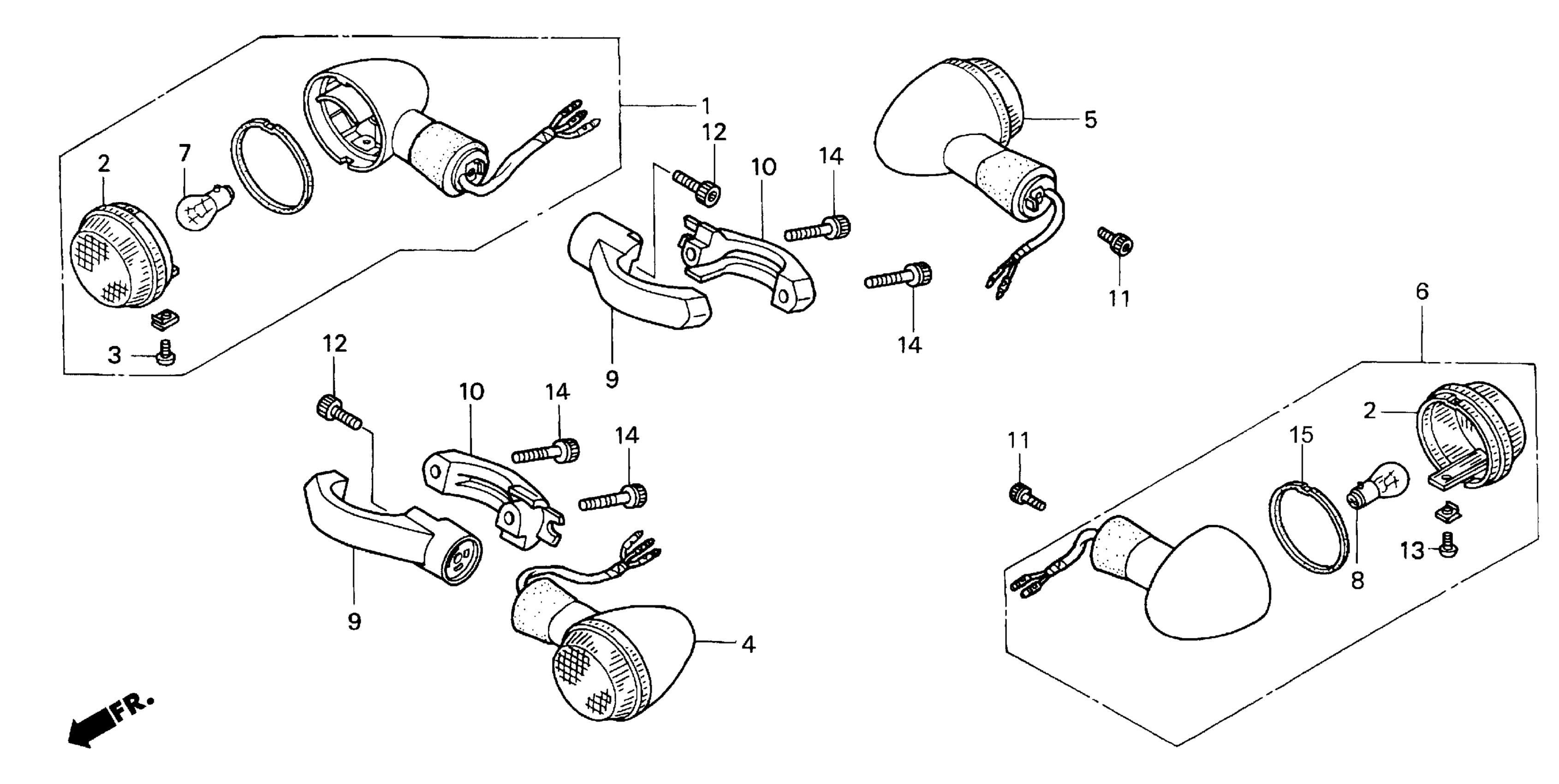

Honda GL1500CA (00) VALKYRIE, USA, VIN# 1HFSC340-YA300001 TURN SIGNAL (2) Diagram

TURN SIGNAL ASSY., R. FR.

33400-MZ0-A82

Unavailable

LENS, TURN SIGNAL (COO) This part replaces 33401-MBA-612.

33401-MFR-305

$10.20

LENS, TURN SIGNAL (COO)

33401-MFR-305

$10.20

SCREW, SPECIAL (4X8)

33403-MBA-611

$1.49

TURN SIGNAL ASSY., L. FR.

33450-MZ0-A82

Unavailable

WINKER ASSY,R RR This part replaces 33600-MBH-013.

33600-MBH-023

$72.44

TURN SIGNAL ASSY. This part replaces 33650-MBH-013.

33650-MBH-023

$70.52

BULB, TAIL/STOP LIGHT (12V 21/5W) (STANLEY)

34906-447-711

$9.38

BULB (12V 21W) (ECE) (STANLEY)

34908-634-611

$5.88

HOLDER A, FR. TURN SIGNAL

53103-MZ0-010

$25.36

HOLDER B, FR. TURN SIGNAL

53104-MZ0-010

Unavailable

SET,SOCKET BOLT,6 This part replaces 90001-GY6-900.

90001-GY6-305

$3.42

BOLT, SOCKET (6X15)

90071-ME9-000

$3.67

SCREW, TAPPING (4X8)

93903-24110

$1.49

BOLT, SOCKET (6X28)

96600-06028-00

$1.80

GASKET, LENS

33407-MBA-611

$3.15

NUT, CLIP

33408-MBA-611

$2.11
