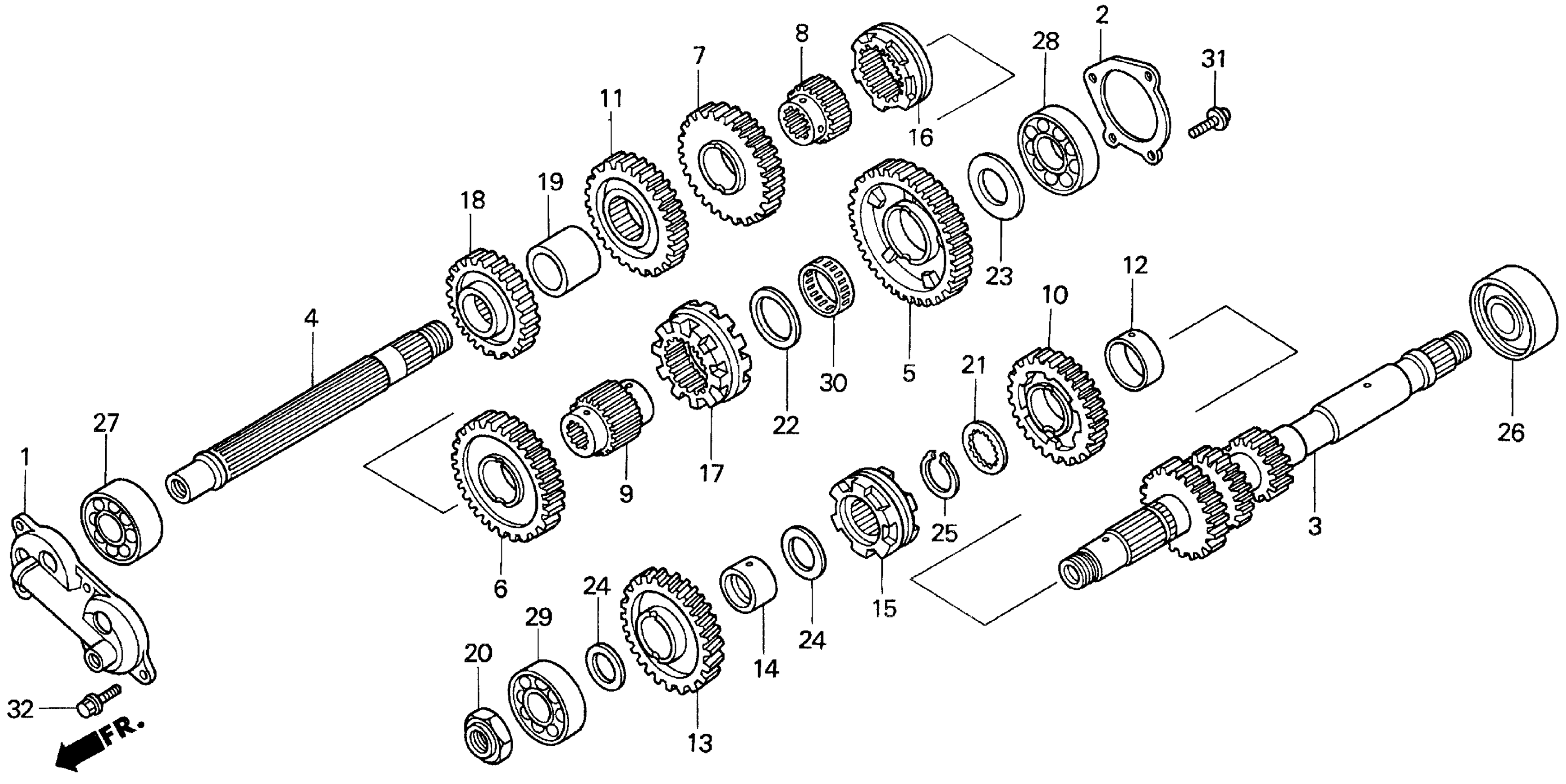

Honda GL1500CA (00) VALKYRIE, USA, VIN# 1HFSC340-YA300001 TRANSMISSION Diagram

#

Description
Price

1

HOLDER, TRANSMISSION BEARING

23150-MN5-000

$87.67

2

PLATE, COUNTERSHAFT BEARING SETTING

23161-MN5-000

Unavailable

3

SHAFT, MAIN (24T/18T/15T)

23210-MAM-L40

$283.51

4

COUNTERSHAFT

23220-MN5-000

$150.54

5

GEAR, COUNTERSHAFT LOW (40T)

23421-MT8-000

Unavailable

6

GEAR, COUNTERSHAFT SECOND (31T)

23441-MZ0-000

Unavailable

7

GEAR, COUNTERSHAFT THIRD (31T)

23451-MZ0-000

Unavailable

8

COLLAR, SPLINE (28X43X34.4)

23456-MT8-000

$82.89

9

COLLAR, SPLINE (28X43X59.4)

23457-MN5-000

$101.59

10

GEAR, MAINSHAFT FOURTH (30T)

23461-MZ0-000

Unavailable

11

GEAR, COUNTERSHAFT FOURTH (30T)

23471-MZ0-000

Unavailable

12

COLLAR (28MM)

23472-MT3-000

$27.69

13

GEAR, MAINSHAFT FIFTH (36T)

23481-MZ0-000

Unavailable

14

COLLAR (23X30X17.5)

23482-MZ0-000

Unavailable

15

SHIFTER, FR.

23483-MZ0-000

Unavailable

16

SHIFTER, CENTER

23484-MZ0-000

Unavailable

17

SHIFTER, RR.

23485-MZ0-000

Unavailable

18

GEAR, COUNTERSHAFT FIFTH (29T)

23491-MZ0-000

Unavailable

19

COLLAR (27.8X35X28.6)

23492-MT8-000

$19.00

20

NUT, HEX. (22MM)

90201-MZ0-000

$11.89

21

WASHER, SPLINE (28X34X1.5)

90451-MM5-000

$5.62

22

WASHER (35.2X46X1.6)

90467-MN5-000

$8.16

23

WASHER (25X47X2.6)

90468-MN5-000

$8.16

24

WASHER (23X35X2)

90471-MZ0-000

$5.69

25

CIRCLIP (28MM)

90603-MN4-000

$4.11

26

BEARING, BALL (28X54X20.6) (NTN)

91001-MN5-003

$74.13

27

BEARING, RADIAL BALL (63/22) (KOYO)

91003-MN5-003

Unavailable

28

BEARING, RADIAL BALL (6305) (NTN)

91006-MN5-003

$33.95

29

BEARING, RADIAL BALL (23X62X17)

91006-MZ0-003

Unavailable

30

BEARING, NEEDLE (35X40X16) (NTN)

91014-MN5-003

Unavailable

31

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

32

BOLT, FLANGE (6X20)

95701-06020-08

$1.49
