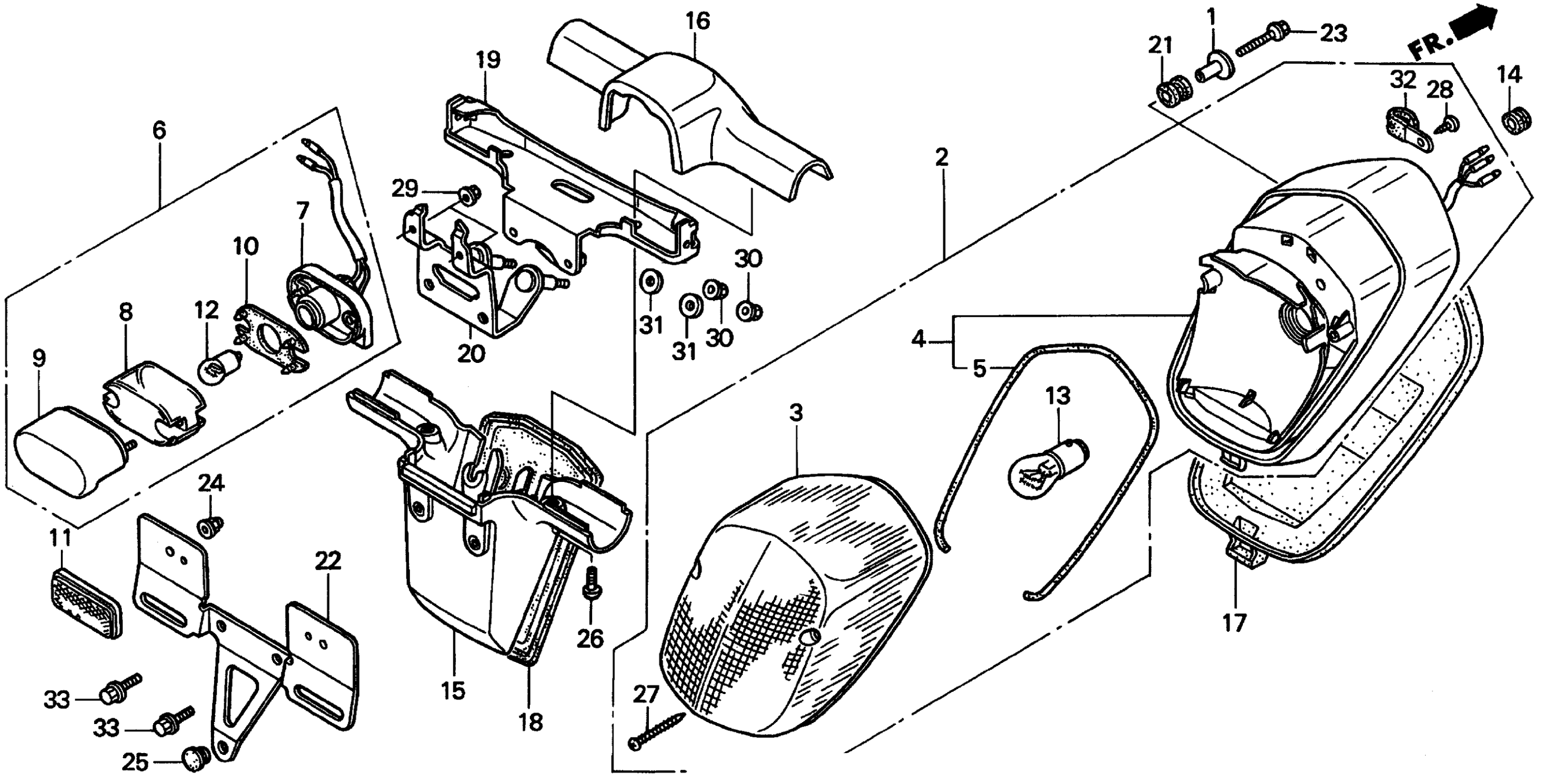

Honda GL1500CA (00) VALKYRIE, USA, VIN# 1HFSC340-YA300001 TAILLIGHT Diagram

COLLAR, AIR CLEANER SETTING

17216-HA7-670

$6.16

TAILLIGHT ASSY.

33701-MZ0-671

Unavailable

LENS, TAILLIGHT

33702-MZ0-003

$39.94

BASE, TAILLIGHT

33704-MZ0-671

Unavailable

GASKET, TAILLIGHT

33709-MZ0-000

$7.59

LIGHT ASSY., LICENSE (12V 8W)

33720-MZ0-671

$134.44

BASE, LICENSE LIGHT

33721-MZ0-003

Unavailable

LENS, LICENSE LIGHT

33722-MB1-013

$19.68

COVER, LICENSE LIGHT

33727-KR3-000

$27.97

GASKET, LENS

33729-MB1-003

$6.30

REFLECTOR, RR. REFLEX

33741-MR1-671

$19.03

BULB (12V8W) This part replaces 34616-568-671.

34909-505-003

$2.92

BULB (12V8W) This part replaces 34902-500-003.

34909-505-003

$2.92

BULB (12V8W) This part replaces 34908-272-000.

34909-505-003

$2.92

BULB (12V8W)

34909-505-003

$2.92

BULB (12V8W) This part replaces 34909-505-610.

34909-505-003

$2.92

BULB (12V 23/8W) (STANLEY)

34905-425-671

$6.67

GROMMET, OIL TUBE

55204-GJ2-000

$3.51

BRACKET, LICENSE LIGHT

80120-MZ0-000

$61.03

COVER, LICENSE LIGHT

80121-MZ0-700

$59.03

RUBBER, TAILLIGHT CUSHION

80122-MZ0-000

$18.16

RUBBER, LICENSE LIGHT CUSHION

80125-MZ0-000

$17.97

STAY A, LICENSE LIGHT

80126-MZ0-700

$31.70

STAY B, LICENSE LIGHT

80127-MZ0-700

$17.90

RUBBER, TAILLIGHT MOUNTING

80219-KCZ-000

$4.84

BRACKET, NUMBER PLATE

84701-MZ0-000

Unavailable

BOLT, FLANGE (5X25)

90112-GG2-900

$4.62

NUT, FLANGE CAP (5MM)

90167-SA0-980

$5.59

PLUG, HOLE

90852-446-630

$2.56

SCREW, PAN (5X14)

93500-05014-0A

$1.49

SCREW, TAPPING (4X35)

93901-348G0

$2.56

SCREW, TAPPING (4X10)

93903-34220

$1.49

NUT, FLANGE (4MM)

94050-04000

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

WASHER, PLAIN (6MM)

94103-06000

$1.49

CLIP (2X50)

94591-25000

$2.31

BOLT, FLANGE (6X18)

95701-06018-07

$1.55
