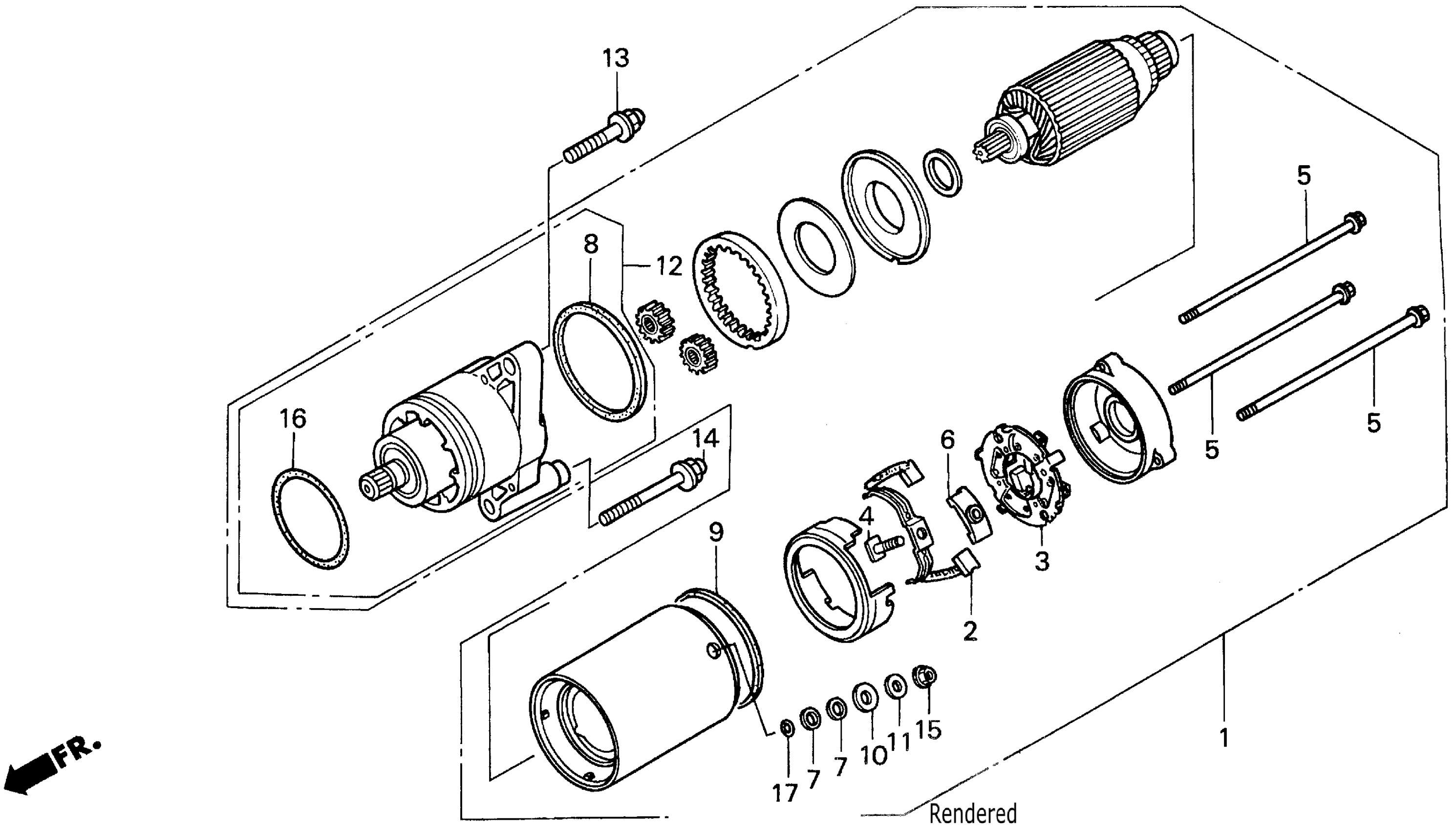

Honda GL1500CA (00) VALKYRIE, USA, VIN# 1HFSC340-YA300001 STARTER MOTOR Diagram

STARTER MOTOR ASSY. (MITSUBA)

31200-MZ0-003

Unavailable

BRUSH SET, TERMINAL

31201-MT8-008

$29.82

HOLDER SET, BRUSH

31203-MT8-008

Unavailable

BOLT, TERMINAL

31204-MN5-008

$3.86

BOLT, SETTING

31205-MT8-008

Unavailable

INSULATOR, TERMINAL

31206-MN5-008

$9.42

WASHER, INSULATOR

31207-MN5-008

$2.80

RING

31207-KS5-901

$2.90

RING, SEAL

31207-179-711

$3.93

WASHER, INSULATOR

31208-MN5-008

$2.97

WASHER (6MM)

31209-MN5-008

$2.97

GEAR ASSY. (NOT AVAILABLE)

31210-MW5-871

Unavailable

BOLT, FLANGE CAP (8X38)

90024-MZ0-000

Unavailable

BOLT, FLANGE CAP (8X60)

90027-MZ0-000

Unavailable

NUT-WASHER (6MM)

90071-MB0-000

$1.88

O-RING (59.6X2.4)

91309-MN5-008

$7.77

O-RING (4X2)

91320-MB0-000

$2.20
