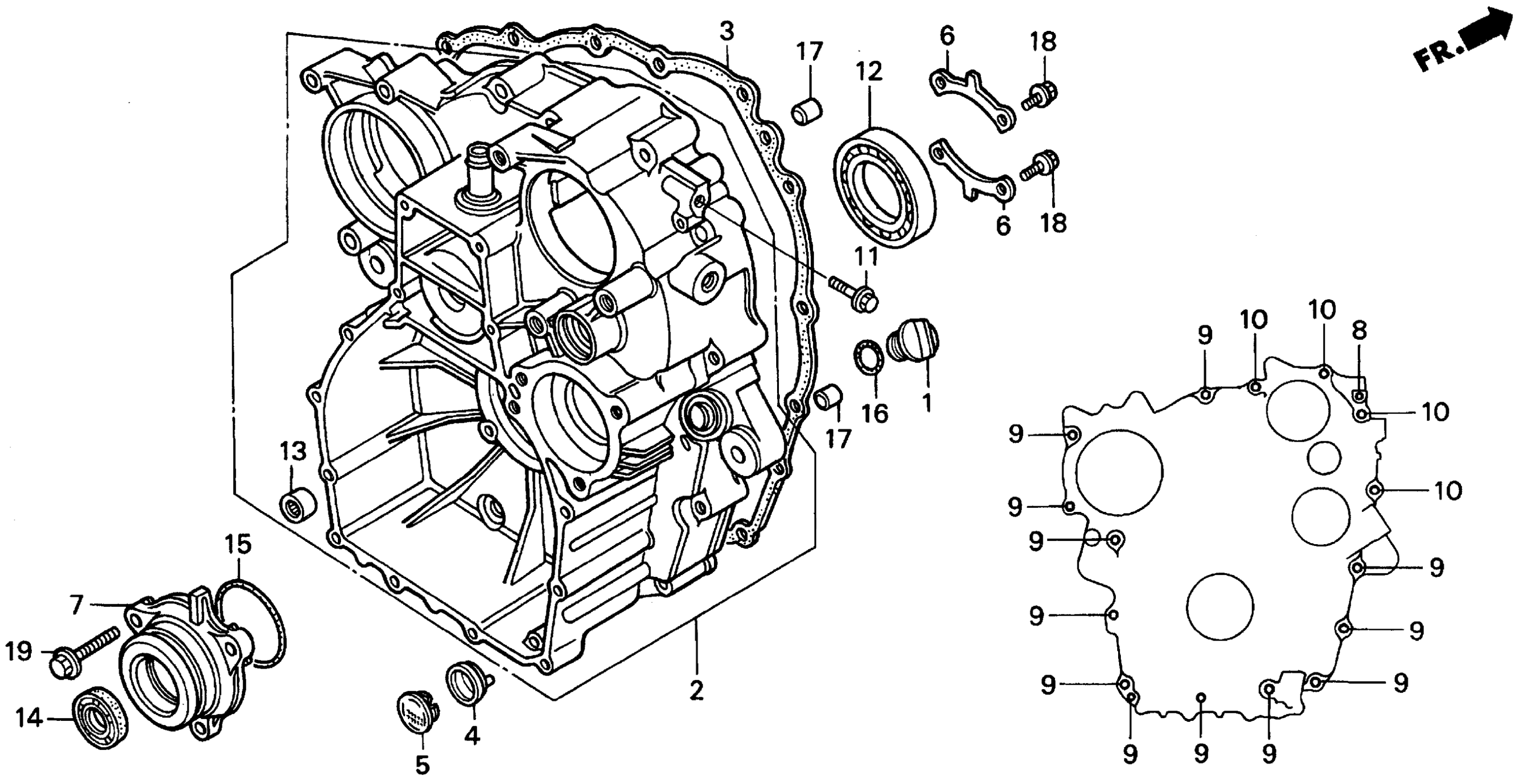

Honda GL1500CA (00) VALKYRIE, USA, VIN# 1HFSC340-YA300001 REAR CASE Diagram

CAP, OIL FILLER

15611-MB0-000

$9.93

CASE, RR.

21110-MZ0-000

Unavailable

GASKET, RR. CASE

21112-MN5-650

$43.70

GASKET, RR. CASE This part replaces 21112-MZ0-760.

21112-MN5-650

$43.70

BODY, SCAVENGE OIL PUMP STRAINER

21116-MT8-000

Unavailable

CAP, SCAVENGE OIL PUMP STRAINER

21117-MT8-000

Unavailable

PLATE, PRIMARY BEARING SETTING

21122-MN5-000

$9.75

HOLDER, FINAL SHAFT BEARING

23751-MN5-000

$112.13

BOLT, FLANGE (6X14)

90016-MN5-000

$3.89

BOLT, FLANGE CAP (8X45)

90025-MZ0-000

$8.13

BOLT, FLANGE CAP (8X55)

90026-MZ0-000

$7.79

BOLT, SPECIAL FLANGE (8X12)

90125-KR3-000

$3.89

BEARING, RADIAL BALL (6010) (NTN)

91002-MN5-003

$77.36

BEARING, NEEDLE (28X35X60)

91024-MN5-003

$49.64

OIL SEAL (28X48X9) (NOK)

91204-MN5-005

$13.54

O-RING (62.4X3.1) This part replaces 91304-MN5-003.

91316-PE7-730

$5.69

O-RING (62.4X3.1)

91316-PE7-730

$5.69

O-RING (62.4X3.1) This part replaces 91316-PT6-003.

91316-PE7-730

$5.69

O-RING (21.5X3.2)

91307-425-003

$2.59

PIN, DOWEL (10X16)

94301-10160

$2.28

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

BOLT, FLANGE (8X28) (NOT AVAILABLE)

95701-08028-02

Unavailable
