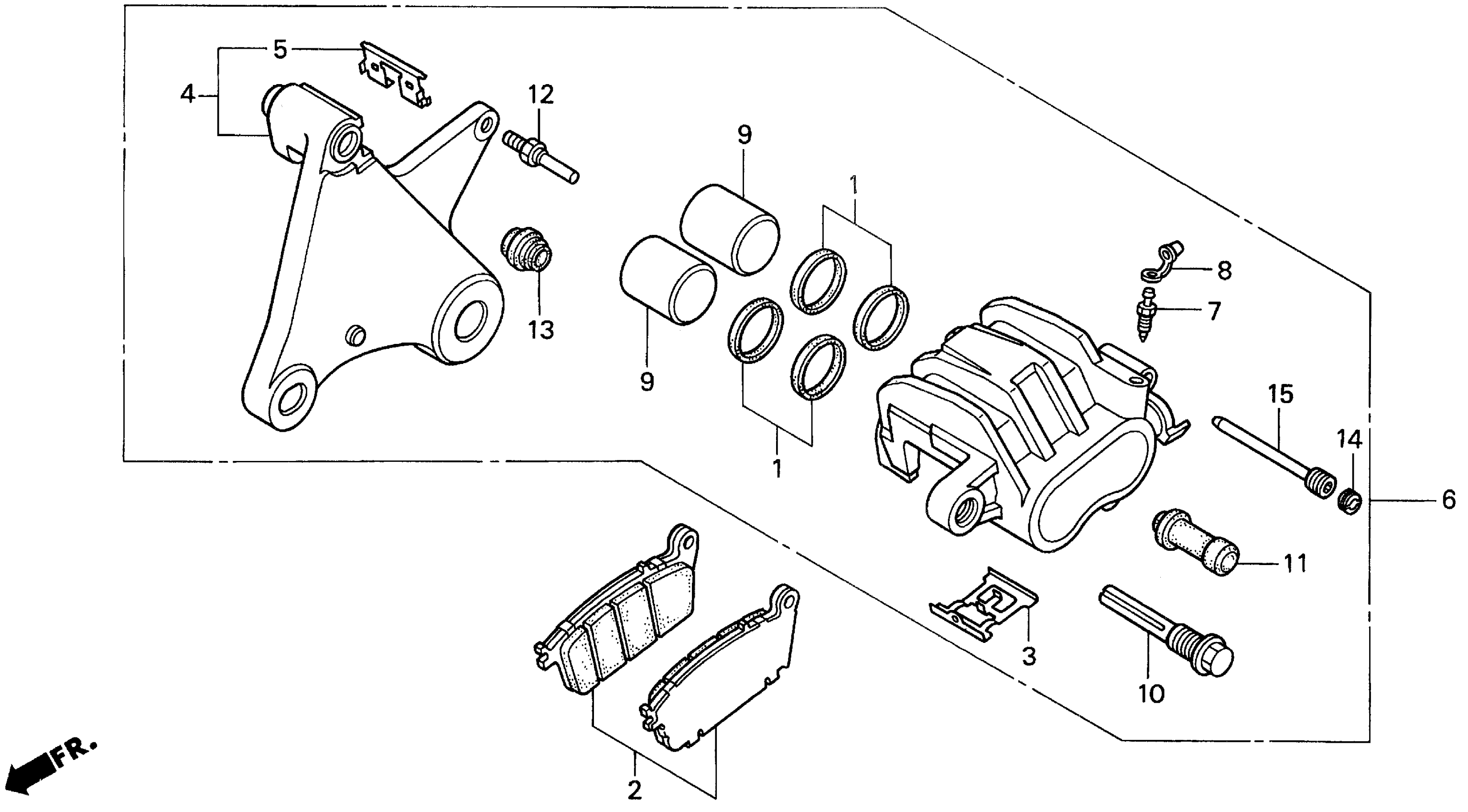

Honda GL1500CA (00) VALKYRIE, USA, VIN# 1HFSC340-YA300001 REAR BRAKE CALIPER Diagram

#

Description
Price

1

SEAL SET, PISTON

06431-MA3-405

$7.00

1

SEAL SET, PISTON This part replaces 06431-MZ0-760.

06431-MA3-405

$7.00

2

PAD SET, RR.

06435-MZ0-006

$48.60

2

PAD SET, RR. This part replaces 06435-MZ0-760.

06435-MZ0-006

$48.60

3

SPRING, PAD

43108-MT3-006

$8.99

3

SPRING, PAD This part replaces 43108-MZ0-760.

43108-MT3-006

$8.99

4

BRACKET, RR. This part replaces 43110-MZ0-760.

43110-MZ0-006

Unavailable

5

RETAINER

43112-MT3-006

$6.67

6

CALIPER SUB-ASSY., RR. BRAKE (NISSIN)

43150-MZ0-006

Unavailable

6

CALIPER SUB-ASSY., RR. BRAKE (NISSIN) This part replaces 43150-MZ0-760.

43150-MZ0-006

Unavailable

7

SCREW, BLEEDER (NISSIN)

43352-HC5-971

$4.04

7

SCREW, BLEEDER (NISSIN) This part replaces 43352-MZ0-760.

43352-HC5-971

$4.04

8

CAP, BLEEDER

43353-KBP-930

$0.79

9

PISTON

45107-ML4-006

$34.77

9

PISTON This part replaces 45107-MZ0-760.

45107-ML4-006

$34.77

10

BOLT, PIN

45131-MA3-006

$16.14

10

BOLT, PIN This part replaces 45131-MZ0-760.

45131-MA3-006

$16.14

11

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

11

BOOT, PIN BUSH (NISSIN) This part replaces 45132-GW3-980.

45132-166-016

$5.21

12

BOLT, PIN

45131-166-016

$7.28

12

BOLT, PIN

45137-GW3-980

Unavailable

13

BOOT B

45133-MA3-006

$5.21

13

BOOT B This part replaces 45139-GW3-980.

45133-MA3-006

$5.21

14

PLUG, PIN

45203-MG3-016

$4.88

14

PLUG, PIN This part replaces 45203-GW3-980.

45203-MG3-016

$4.88

15

PIN, HANGER

45215-HE0-016

$9.61

15

PIN, HANGER This part replaces 45215-MZ0-890.

45215-HE0-016

$9.61
