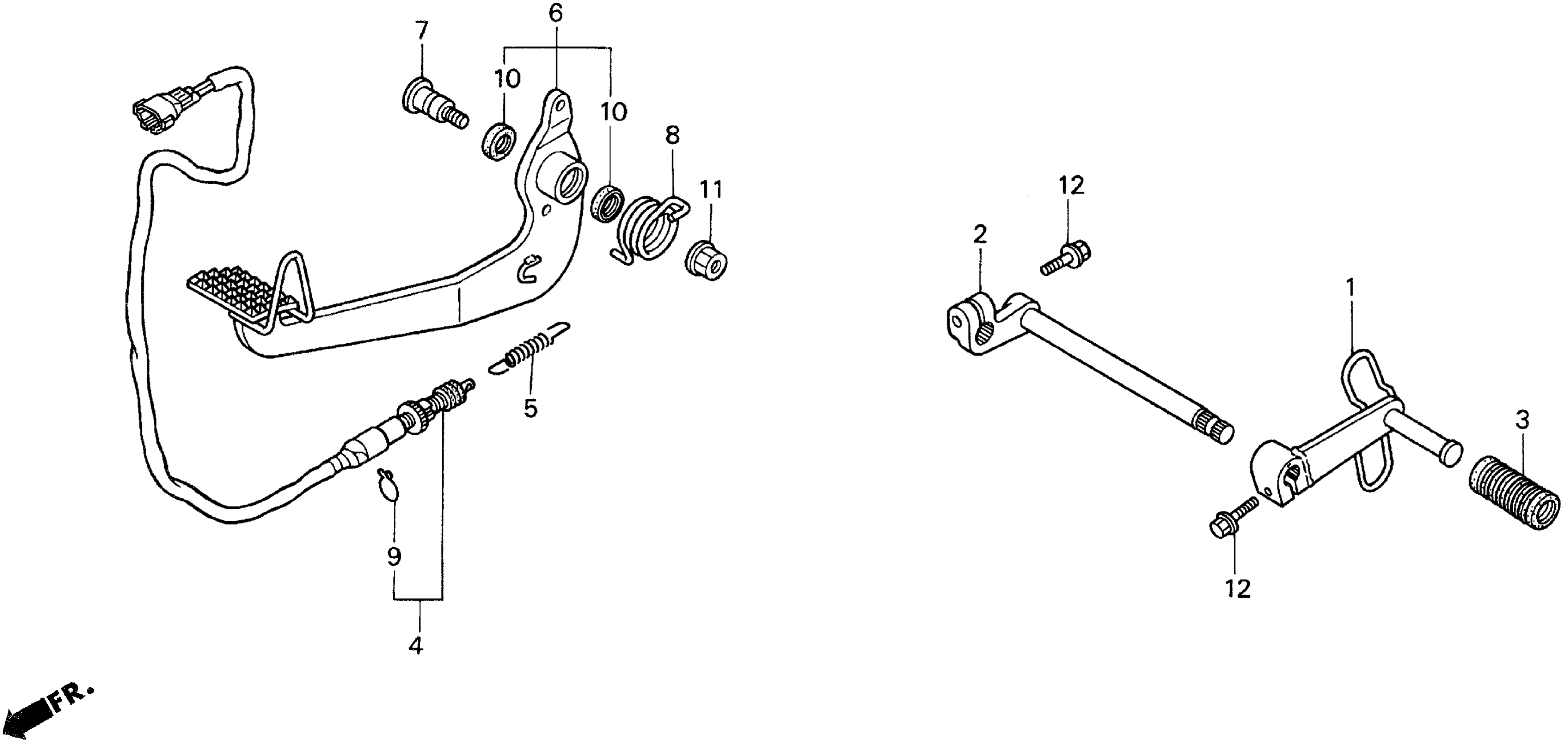

Honda GL1500CA (00) VALKYRIE, USA, VIN# 1HFSC340-YA300001 PEDAL Diagram

PEDAL, GEARSHIFT

24701-MZ0-000

Unavailable

ARM, GEARSHIFT

24711-MN5-000

$53.05

RUBBER, GEARSHIFT PEDAL

24781-KR3-770

$3.39

SWITCH ASSY., RR. STOP

35350-MZ0-003

Unavailable

SPRING, STOP SWITCH

35357-KY2-700

$5.90

PEDAL ASSY., BRAKE

46500-MZ0-000

Unavailable

SHAFT, BRAKE PIVOT

46513-MZ0-000

Unavailable

SPRING, BRAKE PEDAL

46514-MZ0-000

Unavailable

CLIP, SWITCH COVER

90601-KAF-003

$2.67

DUST SEAL (15X20X3) This part replaces 91251-MT4-000.

91251-MT4-003

$3.80

DUST SEAL (15X20X3)

91251-MT4-003

$3.80

NUT, FLANGE (8MM)

94050-08000

$1.49

BOLT, FLANGE (6X20)

95701-06020-00

$1.55
