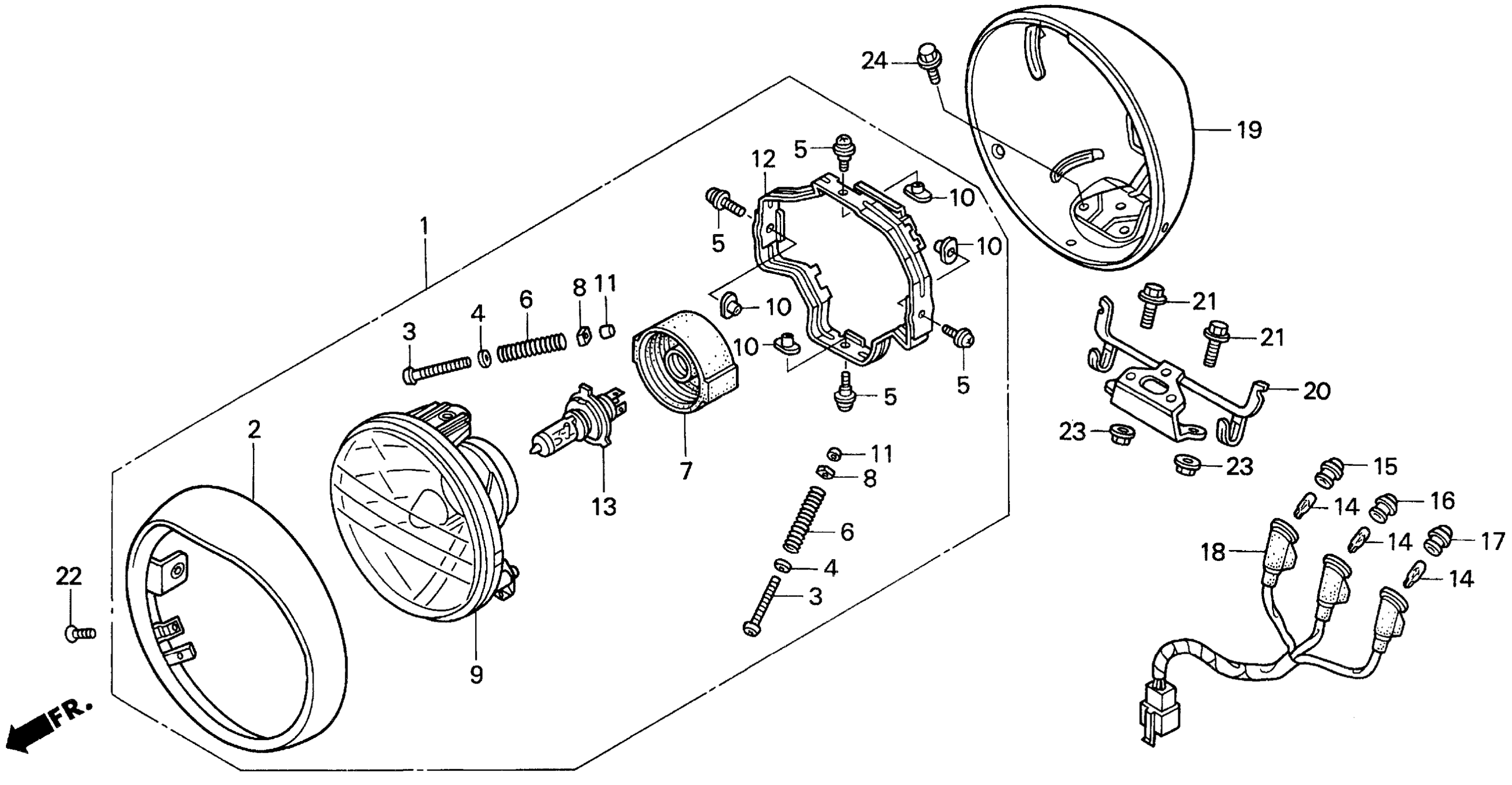

Honda GL1500CA (00) VALKYRIE, USA, VIN# 1HFSC340-YA300001 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT ASSY.

33100-MZ0-671

Unavailable

2

RIM, HEADLIGHT

33101-MZ0-671

Unavailable

3

SCREW, BEAM ADJUSTING

33103-MAH-671

$4.74

4

WASHER

33105-MAH-671

$1.69

5

SCREW-WASHER

33106-MZ0-671

$2.72

6

SPRING, BEAM ADJUSTING

33107-MK7-671

$3.87

7

COVER, RUBBER

33112-MZ0-671

$15.62

8

NUT, BEAM ADJUSTING

33118-438-841

$2.06

9

HEADLIGHT UNIT

33120-MBH-671

Unavailable

9

HEADLIGHT UNIT This part replaces 33120-MZ0-671.

33120-MBH-671

Unavailable

10

NUT, SPECIAL

33128-MAH-671

$3.50

11

COVER, SCREW

33136-426-830

$1.74

12

RING, HEADLIGHT

33153-MZ0-671

Unavailable

13

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601.

34901-MC7-602

$34.13

13

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601AH.

34901-MC7-602

$34.13

14

BULB, WEDGE BASE (T6.5) (12V 3W)

34908-KM1-671

$6.75

15

LENS, HIGH BEAM PILOT (BLUE)

37551-MZ0-018

$7.60

16

LENS, TURN SIGNAL PILOT (ORANGE)

37561-MZ0-008

$9.35

17

LENS, NEUTRAL PILOT (GREEN)

37571-MZ0-008

$9.37

18

SOCKET, PILOT

37606-MZ0-008

Unavailable

19

CASE, HEADLIGHT

61301-MZ0-000

Unavailable

20

STAY, HEADLIGHT

61311-MZ0-000

Unavailable

21

BOLT, SPECIAL FLANGE (8X26)

90183-438-000

$4.65

22

SCREW, OVAL (5X12)

93700-05012-0B

$0.82

23

NUT, FLANGE (8MM)

94050-08000

$0.87

24

BOLT, FLANGE (6X10)

95701-06010-00

$1.16
