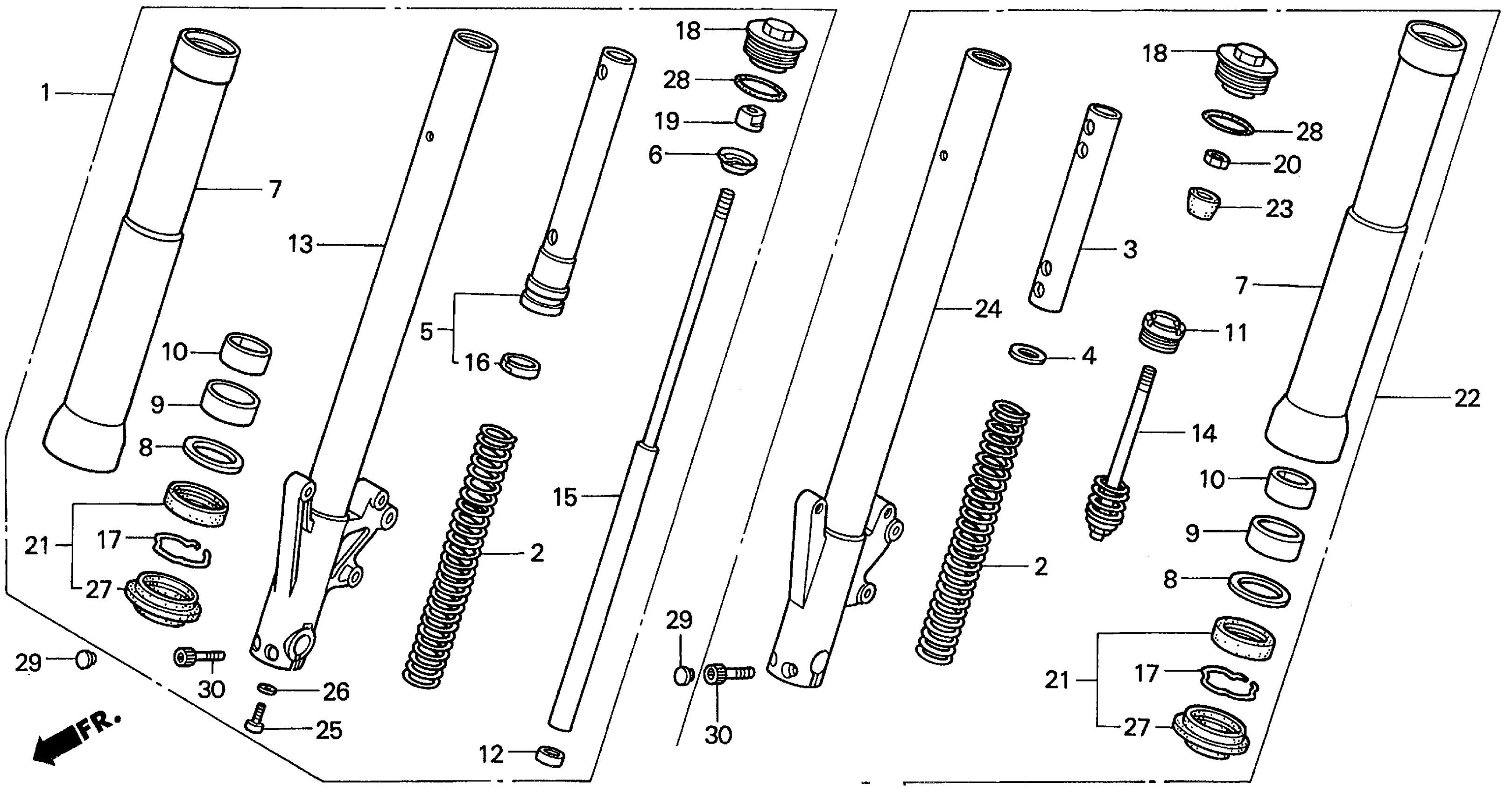

Honda GL1500CA (00) VALKYRIE, USA, VIN# 1HFSC340-YA300001 FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR. (SHOWA) (NOT AVAILABLE)

51400-MZ0-003

Unavailable

2

SPRING, FR. FORK

51401-MZ0-003

Unavailable

3

COLLAR, SPRING

51402-MZ0-003

Unavailable

4

PLATE, SPRING JOINT

51403-MZ0-003

Unavailable

5

COLLAR, SPRING

51404-MZ0-003

Unavailable

6

STOPPER, SPRING SEAT (NOT AVAILABLE)

51408-MZ0-003

$13.82

7

TUBE (OUTER)

51410-MZ0-003

Unavailable

8

RING, BACK-UP

51412-KZ3-003

$9.43

9

BUSH, GUIDE This part replaces 51414-MT7-003.

51414-MCH-003

$22.97

10

BUSH, SLIDER This part replaces 51415-KZ3-701.

51415-MCH-003

$11.87

10

BUSH, SLIDER

51415-MCH-003

$11.87

11

BOLT, FORK PIPE (INNER)

51415-MZ0-003

Unavailable

12

PLATE, CENTERING

51421-MR8-901

Unavailable

13

PIPE, R. SLIDE

51425-MZ0-003

Unavailable

14

ROD

51426-MZ0-003

Unavailable

15

DAMPER, FR.

51430-MZ0-003

Unavailable

16

RING, PISTON

51435-KZ3-701

Unavailable

17

RING, OIL SEAL STOPPER

51447-KZ3-003

$5.12

18

BOLT, FR. FORK

51450-MZ0-003

$125.48

19

NUT, LOCK (SHOWA)

51451-KAE-871

Unavailable

20

NUT, HEX. (10MM)

51451-MAJ-G41

$2.90

21

SEAL SET, FR. FORK

51490-MW0-003

$38.57

22

FORK ASSY., L. FR. (SHOWA) (NOT AVAILABLE)

51500-MZ0-003

Unavailable

23

RUBBER, STOPPER

51517-MZ0-003

$15.26

24

PIPE, L. SLIDE

51525-MZ0-003

Unavailable

25

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.89

26

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.87

27

DUST SEAL

91254-KZ3-003

$16.91

28

O-RING (44.7X2.4)

91356-KZ3-003

$3.92

29

CAP, SOCKET BOLT (8MM)

91455-MB0-010

$3.77

30

BOLT, SOCKET (8X30)

96600-08030-00

$2.08
