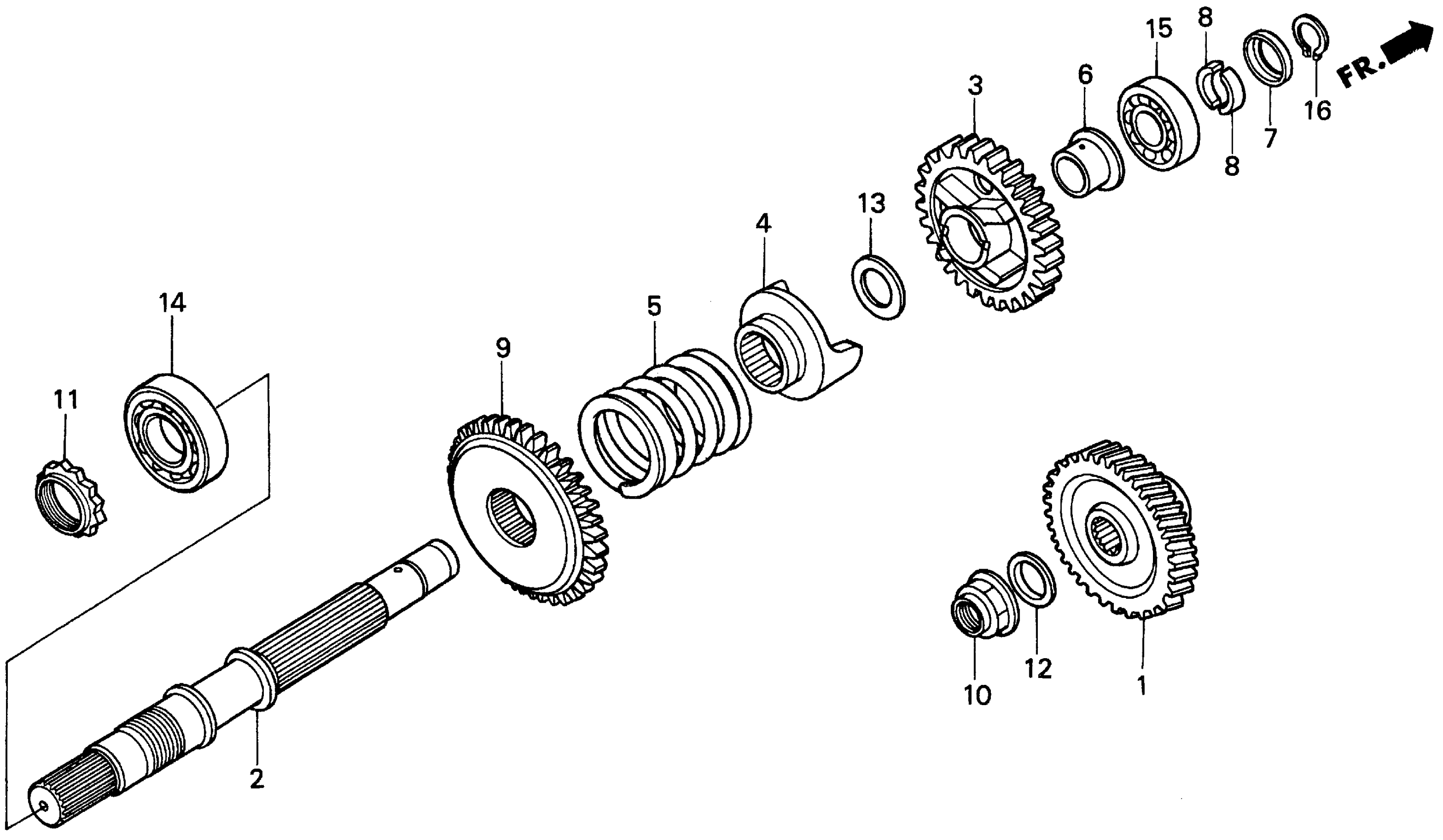

Honda GL1500CA (00) VALKYRIE, USA, VIN# 1HFSC340-YA300001 FINAL SHAFT Diagram

GEAR, FINAL DRIVE (35T)

23501-MZ0-000

Unavailable

SHAFT, FINAL GEAR

23511-MN5-000

Unavailable

GEAR, FINAL DRIVEN (34T)

23521-MZ0-000

Unavailable

LIFTER, FINAL DAMPER

23721-MN5-000

$43.77

SPRING, FINAL DAMPER

23732-MN5-000

Unavailable

COLLAR (22X26X27.6)

23733-MN5-000

$9.61

RETAINER, FINAL SHAFT

23741-MN5-000

$5.03

WASHER, SPRING STOPPER

23742-MN5-000

$11.87

GEAR, REVERSE DRIVEN (45T)

28178-MCA-000

$117.33

GEAR, REVERSE DRIVEN (45T) This part replaces 28178-MN5-000.

28178-MCA-000

$117.33

NUT, SPECIAL (22MM)

90205-MN5-000

$37.23

NUT, LOCK (30MM)

90241-MB0-000

$21.10

WASHER, SPRING (22MM)

90421-MN5-003

$12.70

WASHER (22.2X35X2.6)

90498-MN5-000

$8.49

BEARING, BALL (22X52X15)

91005-MN5-003

Unavailable

BEARING, RADIAL BALL (6206) (NTN)

91006-MT3-003

$21.55

BEARING, RADIAL BALL (6206) (NTN) This part replaces 91011-MN5-003.

91006-MT3-003

$21.55

CIRCLIP, OUTER (22MM)

94510-22000

$1.49
