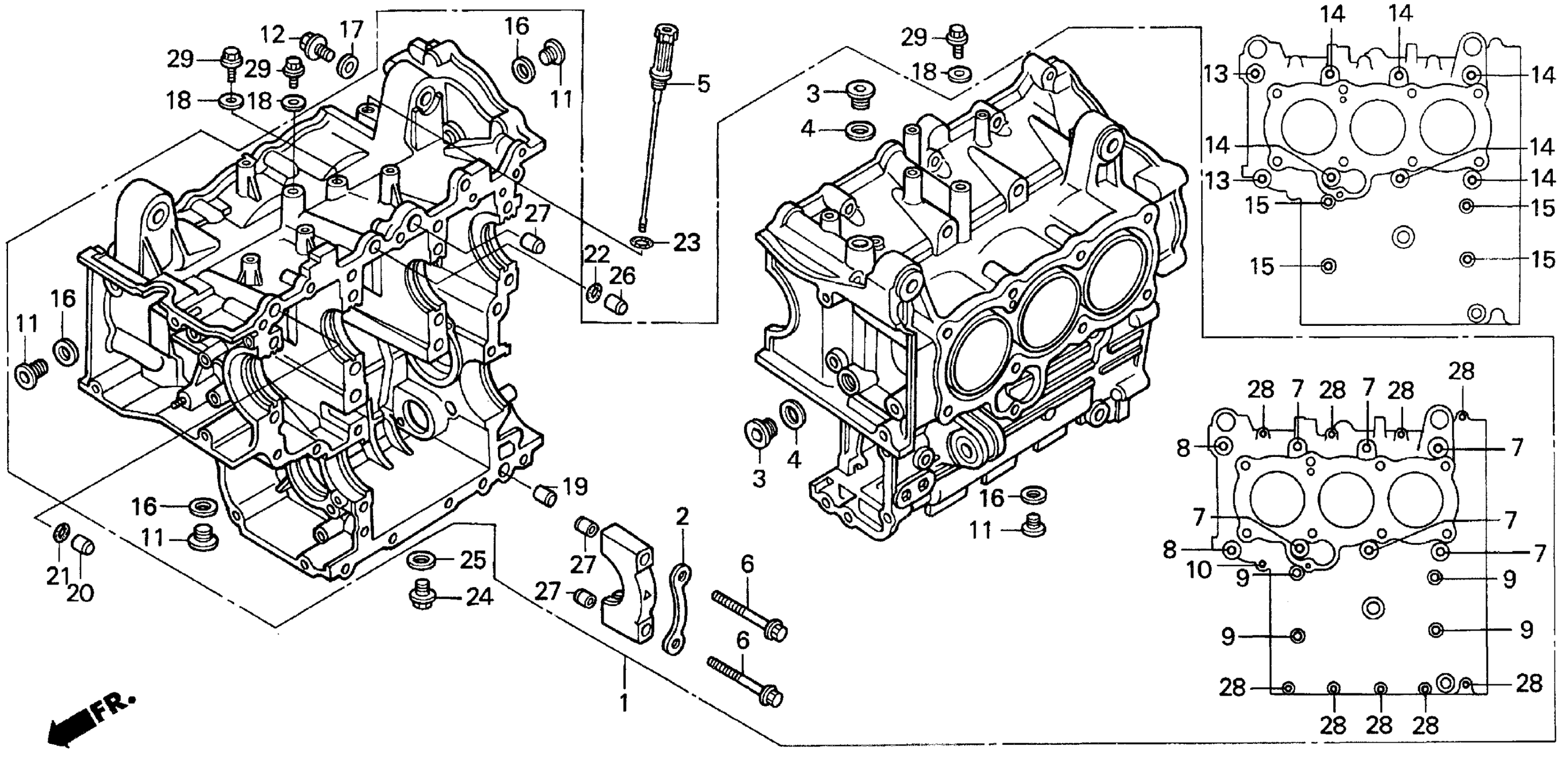

Honda GL1500CA (00) VALKYRIE, USA, VIN# 1HFSC340-YA300001 CYLINDER BLOCK Diagram

#

Description
Price

1

BLOCK ASSY., CYLINDER (SC34E)

04911-MZ0-710

$1,404.85

2

PLATE, BEARING CAP

11125-MN5-010

$15.70

3

BOLT, SEALING (18MM)

12206-ML8-300

$9.11

5

DIPSTICK, OIL

15650-MZ0-A00

Unavailable

6

BOLT, FLANGE (10X87)

90003-MN5-013

$9.03

7

BOLT, FLANGE (10X120) (SATO)

90009-371-015

$10.71

8

BOLT, FLANGE (10X135)

90011-MN5-004

$15.13

9

BOLT, FLANGE (8X123)

90012-MN5-000

$9.11

10

BOLT, FLANGE (6X35)

90019-MN5-000

Unavailable

11

BOLT, SEALING (20MM)

90048-MN5-000

$13.75

12

BOLT, SPECIAL FLANGE (10X16)

90109-KN8-730

$4.65

13

WASHER (10MM) This part replaces 90403-ML4-610.

90403-ML4-611

$6.21

14

WASHER, SPECIAL (11X21X2.3)

90438-463-000

$2.53

15

WASHER, SEALING (8MM)

90441-MG8-000

$2.28

16

WASHER, SEALING (20MM)

90441-MN5-000

$5.08

17

WASHER, SEALING (10.2MM)

90443-MB0-000

$2.92

18

WASHER, SEALING (8MM)

90495-MN5-000

$3.56

19

COLLAR (15X20)

90702-371-000

$5.87

20

PIN, DOWEL (14X12)

90706-MN5-000

Unavailable

21

O-RING (13.8X2.5)

91303-377-000

$3.42

22

O-RING (7.8X1.9) (NOK)

91313-MN5-004

$2.18

23

O-RING (8.4X2.4)

91316-MJ8-003

$2.61

24

BOLT, DRAIN PLUG (14MM)

92800-14000

$3.67

25

WASHER, DRAIN PLUG (14MM)

94109-14000

$1.49

26

PIN, DOWEL (8X14)

94301-08140

$2.25

27

PIN, DOWEL (12X20)

94301-12200

$2.29

28

BOLT, FLANGE (6X35)

95701-06035-08

$1.79

29

BOLT, FLANGE (8X16)

95701-08016-08

$1.80
