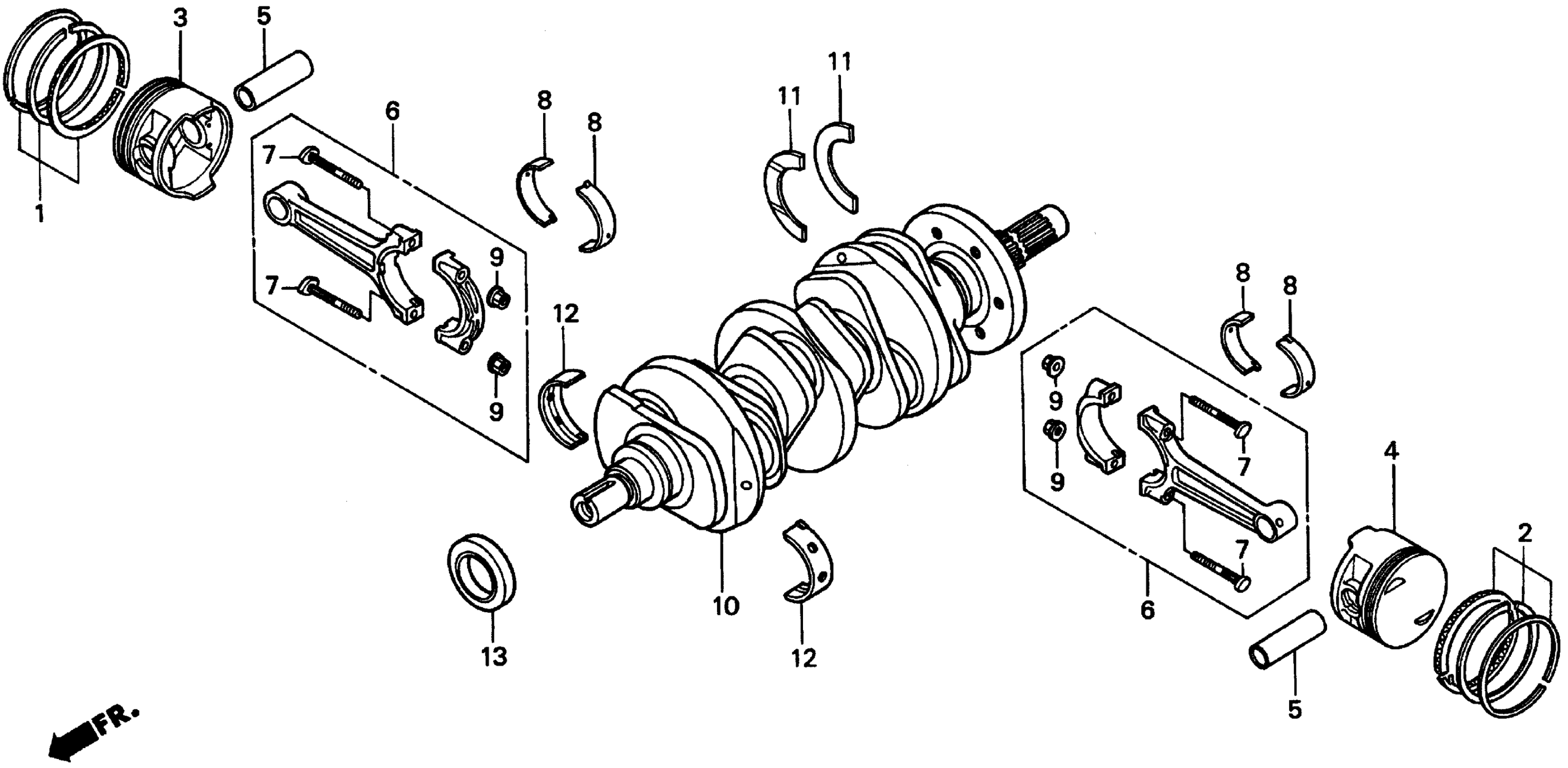

Honda GL1500CA (00) VALKYRIE, USA, VIN# 1HFSC340-YA300001 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

RING SET, PISTON (STD) (TEIKOKU)

13011-MN5-305

$77.02

1

RING SET, PISTON (STD) (TEIKOKU) This part replaces 13011-MN5-306.

13011-MN5-305

$77.02

1

RING SET, PISTON (OVER SIZE) (0.25) (TEIKOKU) | (Optional). This part replaces 13021-MN5-306.

13021-MN5-305

Unavailable

1

RING SET, PISTON (OVER SIZE) (0.50) (TEIKOKU) | (Optional). This part replaces 13031-MN5-306.

13031-MN5-305

Unavailable

1

RING SET, PISTON (OVER SIZE) (0.75) (TEIKOKU) | (Optional). This part replaces 13041-MN5-306.

13041-MN5-305

$59.39

1

RING SET, PISTON (1.00) (TEIKOKU) | (Optional). This part replaces 13051-MN5-306.

13051-MN5-305

$59.39

2

RING SET, PISTON (STD) (RIKEN)

13011-MZ0-305

Unavailable

2

RING SET, PISTON (OVER SIZE) (0.25) (RIKEN) | (Optional).

13021-MZ0-305

Unavailable

2

RING SET, PISTON (OVER SIZE) (0.50) (RIKEN) | (Optional).

13031-MZ0-305

$58.31

2

RING SET, PISTON (OVER SIZE) (0.75) (RIKEN) | (Optional).

13041-MZ0-305

Unavailable

2

RING SET, PISTON (OS 1.00) (RIKEN) | (Optional).

13051-MZ0-305

Unavailable

3

PISTON, R. (STD)

13101-MZ0-000

Unavailable

3

PISTON, R. (O.S. 0.25) | (Optional).

13103-MZ0-305

$76.87

3

PISTON, R. (O.S. 0.50) | (Optional).

13104-MZ0-305

Unavailable

3

PISTON, R. (O.S. 0.75) | (Optional).

13105-MZ0-305

$79.97

3

PISTON, R. (O.S. 1.00) | (Optional).

13106-MZ0-305

Unavailable

4

PISTON, L. (STD)

13102-MZ0-000

Unavailable

4

PISTON, L. (O.S. 0.25) | (Optional).

13107-MZ0-305

Unavailable

4

PISTON, L. (O.S. 0.50) | (Optional).

13108-MZ0-305

Unavailable

4

PISTON, L. (O.S. 0.75) | (Optional).

13109-MZ0-305

$79.97

4

PISTON, L. (O.S. 1.00) | (Optional).

13110-MZ0-305

Unavailable

5

PIN, PISTON

13111-MZ0-000

$15.77

6

ROD ASSY. C, CONNECTING This part replaces 13201-MT2-000.

13203-MT2-000

Unavailable

6

ROD ASSY. C, CONNECTING This part replaces 13202-MT2-000.

13203-MT2-000

Unavailable

6

ROD ASSY. C, CONNECTING

13203-MT2-000

Unavailable

6

ROD ASSY. C, CONNECTING This part replaces 13204-MT2-000.

13203-MT2-000

Unavailable

6

ROD ASSY. C, CONNECTING This part replaces 13205-MT2-000.

13203-MT2-000

Unavailable

7

BOLT, CONNECTING ROD

13213-MS2-610

$9.92

8

BEARING A, CONNECTING ROD (BLUE) (DAIDO)

13214-MN5-003

$14.51

8

BEARING B, CONNECTING ROD (BLACK) (DAIDO)

13215-MN5-003

$14.70

8

BEARING C, CONNECTING ROD (BROWN) (DAIDO)

13216-MN5-003

$15.39

8

BEARING D, CONNECTING ROD (GREEN) (DAIDO)

13217-MN5-003

$15.39

8

BEARING E, CONNECTING ROD (YELLOW) (DAIDO)

13218-MN5-003

$14.70

9

NUT, CONNECTING ROD

13215-ML7-000

$3.89

10

CRANKSHAFT

13310-MN5-010

Unavailable

11

BEARING, THRUST

13312-MN5-003

$18.21

12

BEARING A, MAIN (BLUE)

13314-MZ0-003

Unavailable

12

BEARING B, MAIN (BLACK)

13315-MZ0-003

Unavailable

12

BEARING C, MAIN (BROWN)

13316-MZ0-003

Unavailable

12

BEARING D, MAIN (GREEN)

13317-MZ0-003

$18.89

12

BEARING E, MAIN (YELLOW)

13318-MZ0-003

Unavailable

13

OIL SEAL (35X59X8) (ARAI)

91201-MN5-003

$15.44
