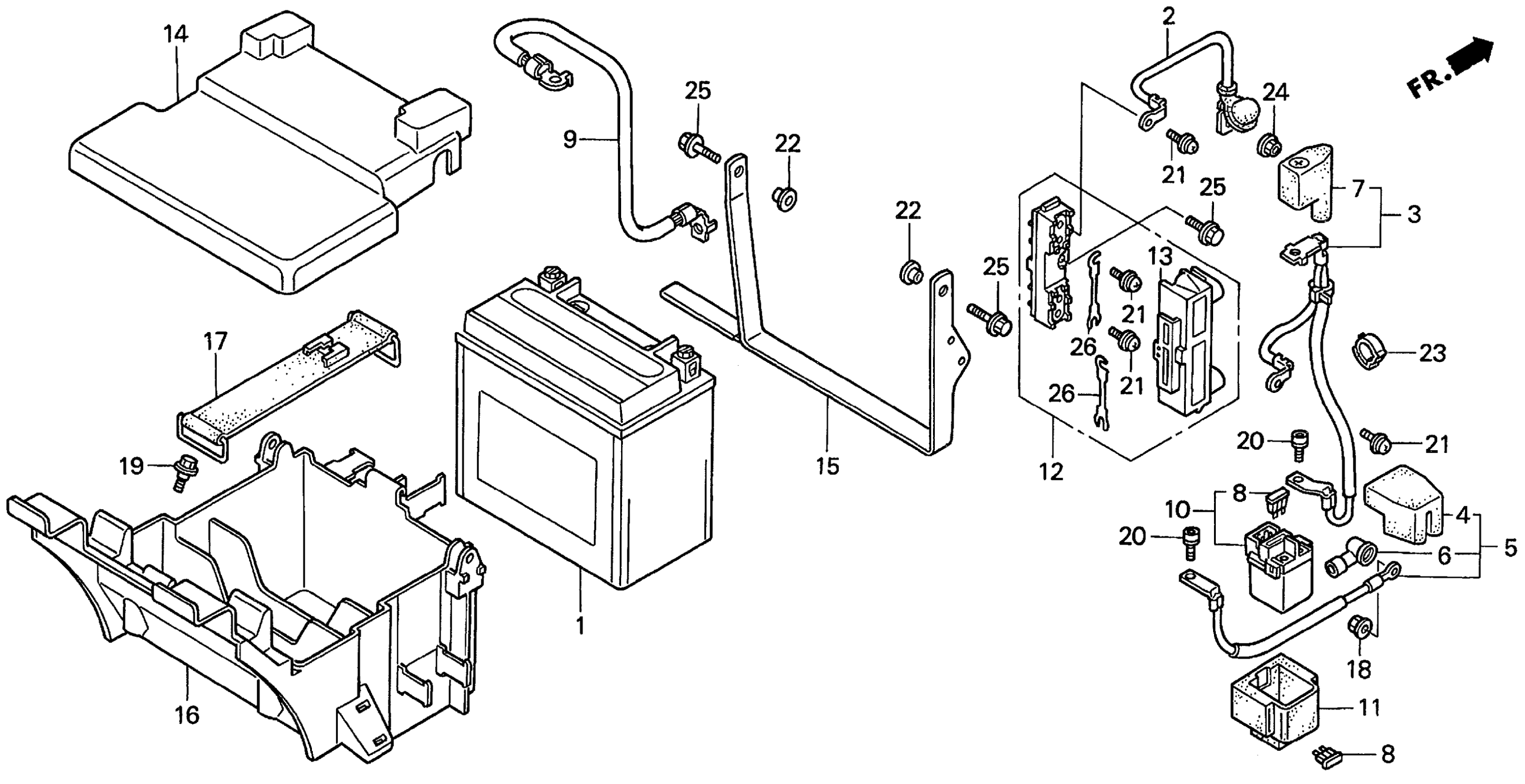

Honda GL1500CA (00) VALKYRIE, USA, VIN# 1HFSC340-YA300001 BATTERY Diagram

#

Description
Price

1

BATTERY (YTX14-BS) (YUASA) (MSDS) This part replaces 31500-HC4-726.

31500-HC4-726AH

Unavailable

1

BATTERY (YTX14-BS) (YUASA) (MSDS)

31500-HC4-726AH

Unavailable

1

BATTERY (YTX14-BS) (YUASA) (MSDS) This part replaces 31500-HM5-631.

31500-HC4-726AH

Unavailable

2

CABLE, ALTERNATOR

32120-MZ0-000

Unavailable

2

CABLE, ALTERNATOR This part replaces 32120-MZ0-760.

32120-MZ0-000

Unavailable

3

CABLE, STARTER BATTERY

32401-MZ0-000

Unavailable

4

COVER, STARTER MAGNETIC TERMINAL This part replaces 32406-KAZ-000.

32406-KAZ-010

$6.56

4

COVER, STARTER MAGNETIC TERMINAL

32406-KAZ-010

$6.56

5

CABLE, STARTER MOTOR (NOT AVAILABLE)

32410-MZ0-000

Unavailable

6

COVER, TERMINAL

32411-473-000

$6.05

7

COVER, BATTERY TERMINAL

32414-MW0-000

$3.59

8

FUSE, BLADE (30A)

98200-33000

$1.49

10

SWITCH ASSY., STARTER MAGNETIC This part replaces 35850-MT4-000.

35850-MT4-003

$78.00

10

SWITCH ASSY., STARTER MAGNETIC

35850-MT4-003

$78.00

11

RUBBER, SHOCK

35856-KBG-007

$10.43

12

BOX ASSY., MAIN FUSE

38250-MN5-003

Unavailable

13

COVER, MAIN FUSE BOX

38255-MN5-003

Unavailable

14

COVER, BATTERY BOX

50321-MZ0-000

Unavailable

15

HOLDER, BATTERY BOX

50322-MZ0-000

Unavailable

16

BOX, BATTERY

50325-MZ0-000

Unavailable

17

BAND, BATTERY

50330-MM5-000

Unavailable

18

NUT-WASHER (6MM)

90071-MB0-000

$1.97

19

BOLT, SPECIAL (6MM)

90109-434-000

$2.77

20

BOLT, SOCKET (5X9)

90111-MR5-000

$2.61

21

SCREW-WASHER (5X10)

90153-SB2-003

$5.19

22

COLLAR, GEARSHIFT LEVER SETTING

90522-170-700

$1.84

23

CLIP, WIRE HARNESS

90683-KJ2-003

$3.56

24

NUT, FLANGE (6MM)

94050-06080

$1.49

25

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

26

FUSE (55A)

98200-65500

$1.91
