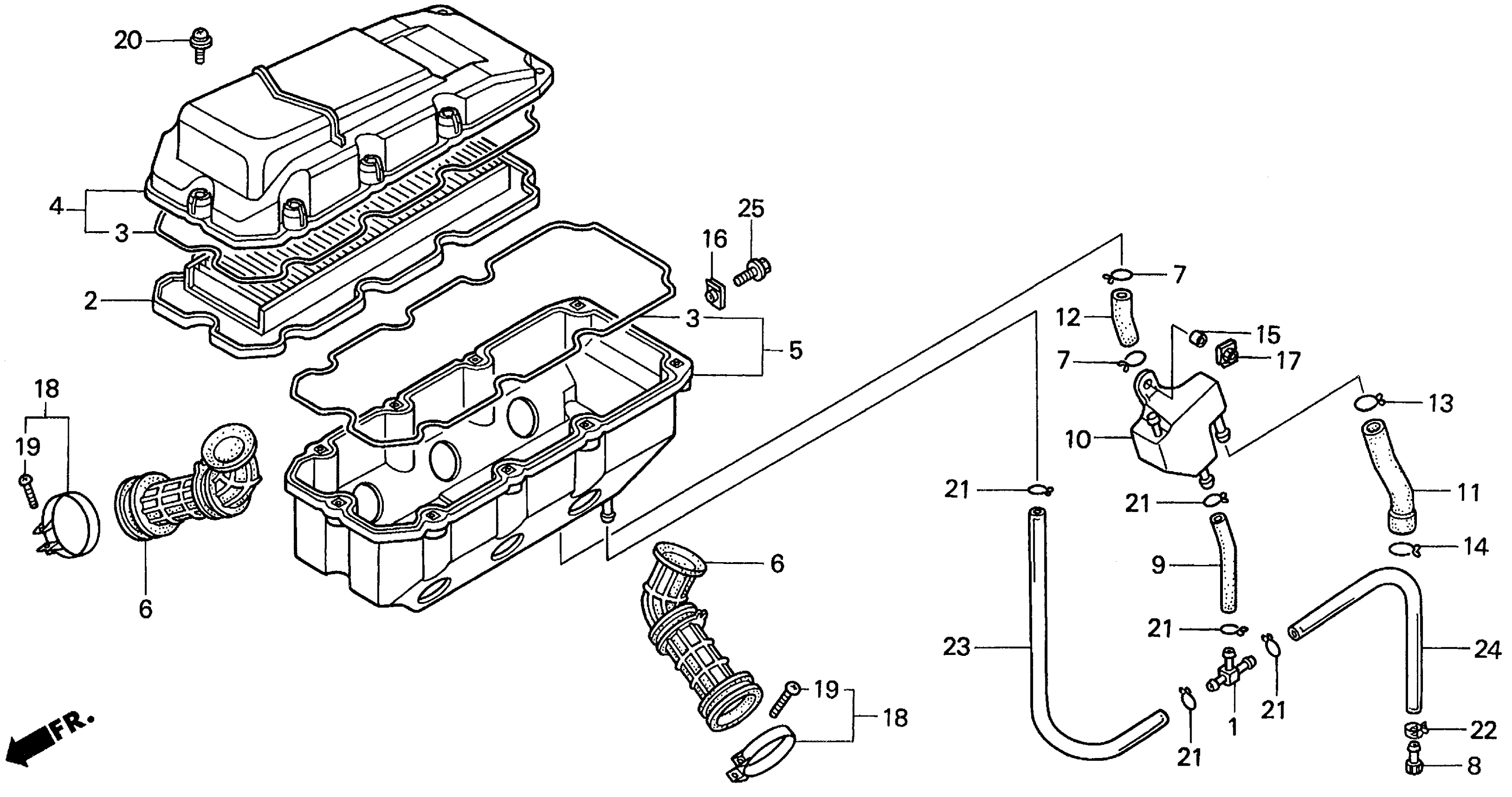

Honda GL1500CA (00) VALKYRIE, USA, VIN# 1HFSC340-YA300001 AIR CLEANER Diagram

#

Description
Price

1

T-JOINT

17195-MN5-000

$9.54

2

AIR CLEANER

17210-MZ0-000

$27.75

3

SEAL, AIR CLEANER HOUSING

17213-MZ0-000

$3.97

4

COVER, HOUSING AIR CLEANER

17221-MZ0-000

Unavailable

5

HOUSING, AIR CLEANER

17231-MZ0-000

Unavailable

6

TUBE, AIR CLEANER CONNECTING

17253-MZ0-000

$12.11

7

CLIP, BREATHER TUBE

17369-KB4-670

$5.41

8

PLUG, BREATHER TUBE

17370-419-700

$3.74

9

TUBE, AIR CLEANER DRAIN

17516-MZ0-000

Unavailable

10

CRANKCASE BREATHER STORAGE TANK

17551-MN5-000

Unavailable

11

TUBE A, BREATHER (NOT AVAILABLE)

17552-MZ0-000

Unavailable

12

TUBE B, BREATHER (NOT AVAILABLE)

17553-MZ0-000

Unavailable

13

CLIP, SUB-TANK HOSE

17724-102-700

$4.51

14

CLIP, AIR HOSE (21.5)

18532-634-670

$7.94

15

COLLAR B, RR. FENDER

80108-MA6-000

Unavailable

16

NUT, FENDER SETTING

84601-HA7-670

$5.54

17

NUT, CLIP (6MM)

90350-SB0-000

$7.46

18

BAND, AIR CLEANER CONNECTING TUBE (52)

95018-52250

$5.14

20

SCREW-WASHER (5X16)

93893-05016-07

$1.49

21

CLIP, TUBE (B12)

95002-02120

$2.00

22

CLAMP, TUBE (D12)

95002-41200-08

$2.34

23

BULK HOSE, VINYL (8X12X8000) (8X12X280)

95003-23008-60M

Unavailable

24

BULK HOSE, VINYL (8X12X8000) (8X12X450)

95003-23008-60M

Unavailable

25

BOLT, FLANGE (6X14)

95701-06014-07

$1.49
