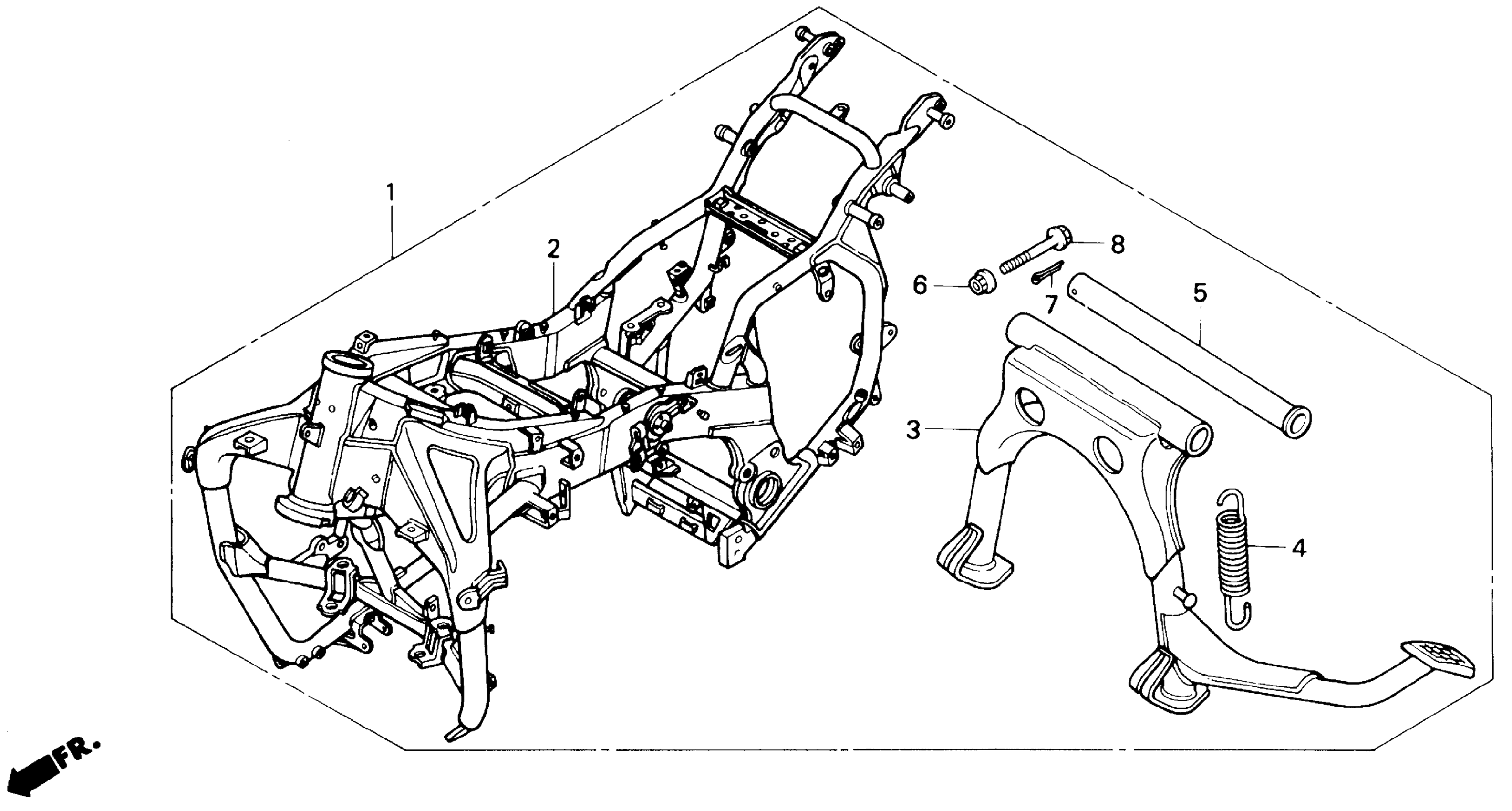

Honda GL1500AC (90) GOLD WING, USA, VIN# 1HFSC221-LA200001 TO 1HFSC221-LA200487 FRAME SET 90 Diagram

#

Description
Price

1

FRAME SET

50010-MT8-890

Unavailable

2

FRAME

50100-MT8-890

Unavailable

3

STAND, MAIN This part replaces 50500-MT8-770.

50500-MW5-000

Unavailable

3

STAND, MAIN

50500-MW5-000

Unavailable

4

SPRING, MAIN STAND

50510-MT2-000

$8.07

5

PIPE, MAIN STAND PIVOT This part replaces 50526-MN5-000.

50526-MW5-000

Unavailable

5

PIPE, MAIN STAND PIVOT

50526-MW5-000

Unavailable

6

NUT, FLANGE (8MM)

94050-08080

$1.49

7

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

7

PIN, SPLIT (2.5X30)

94201-25300

$1.49

8

BOLT, FLANGE (8X45)

95701-08045-08

$2.28
