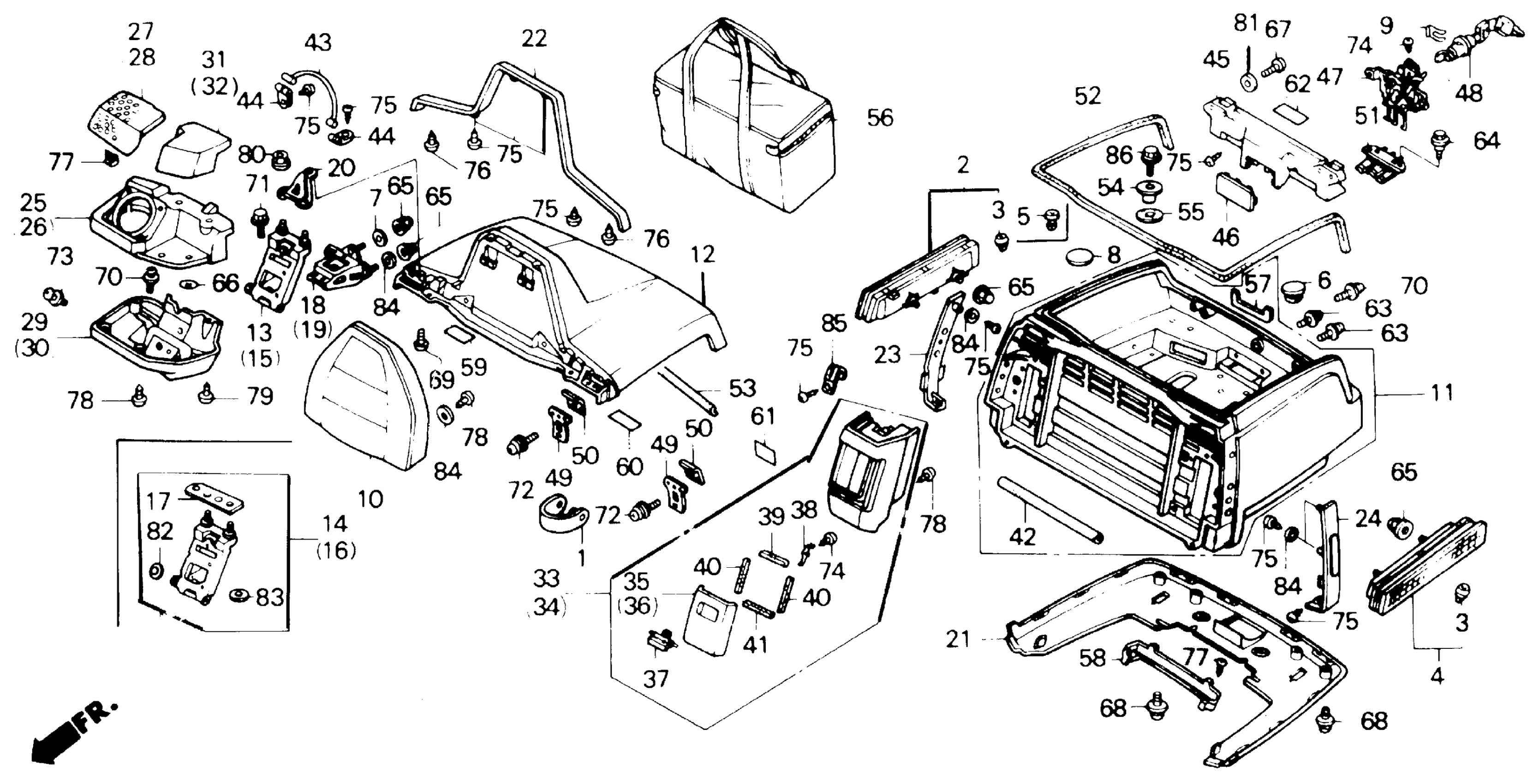

Honda GL1500AC (89) GOLD WING, USA, VIN# 1HFSC221-KA100001 TO 1HFSC221-KA101412 TRUNK BOX Diagram

GARNISH, R. TRUNK This part replaces 33950-MN5-003.

33950-MT2-004

Unavailable

GARNISH, R. TRUNK

33950-MT2-004

Unavailable

CAP A

33954-MN5-003

Unavailable

GARNISH, L. TRUNK This part replaces 33980-MN5-003.

33980-MT2-004

$81.75

GARNISH, L. TRUNK

33980-MT2-004

$81.75

PLUG, HEAD PIPE

50049-046-000

$2.03

CAP, MAIN STAND PIPE

50750-MB0-000

$5.90

WASHER, PLAIN

52427-KM4-003

Unavailable

SPRING, LOCK KEY SETTING

77235-469-000

$5.26

SEAT, BACK *NH159L* (TYPE1) (COSMOPOLITAN GRAY) This part replaces 77500-MN5-000ZA.

77500-MT8-000ZD

$136.75

SEAT, BACK (NH159L) (TYPE1)

77500-MT8-000ZD

$136.75

SEAT, BACK (R106L) (TYPE3)

77500-MN5-000ZC

Unavailable

SEAT, BACK (YR131L) (TYPE4) SEAT, BACK (NH188L) (TYPE5)

77500-MN5-000ZD

Unavailable

BOX, TRUNK *YR149M* (MARTINI BEIGE METALLIC)

80110-MN5-000ZC

$691.13

BOX, TRUNK *B127M* (COMMODORE BLUE GREEN METALLIC)

80110-MN5-000ZE

Unavailable

BOX, TRUNK *R114CU* (CANDY WINE BERRY RED-U) BOX, TRUNK *PB224M*

80110-MN5-000ZD

Unavailable

LID, TRUNK *YR149M* (MARTINI BEIGE METALLIC)

81120-MN5-000ZC

Unavailable

LID, TRUNK *B127M* (COMMODORE BLUE GREEN METALLIC)

81120-MN5-000ZE

Unavailable

LID, TRUNK *R114CU* (CANDY WINE BERRY RED-U) LID, TRUNK *PB224M*

81120-MN5-000ZD

$522.25

HINGE, R. TRUNK

81130-MN5-000

Unavailable

HINGE, L. TRUNK

81131-MN5-000

Unavailable

BRACKET, R. TRUNK HINGE (B)

81136-MN5-000

$67.46

BRACKET, L. TRUNK HINGE (B)

81137-MN5-000

$67.46

STIFFENER, TRUNK LID

81139-MN5-000

Unavailable

COVER, TRUNK (LOWER) *YR149M* (MARTINI BEIGE METALLIC)

81140-MN5-000ZC

$287.67

COVER, TRUNK (LOWER) *B127M* (COMMODORE BLUE GREEN METALLIC)

81140-MN5-000ZE

Unavailable

CVR, TRUNK *R114CU* This part replaces 81140-MN5-000ZD.

81140-MN5-610ZD

Unavailable

GARNISH, TRUNK LID

81145-MN5-000

Unavailable

GARNISH, R. TRUNK SIDE (NOT AVAILABLE)

81146-MN5-000

Unavailable

GARNISH, L. TRUNK SIDE (NOT AVAILABLE)

81147-MN5-000

Unavailable

COVER, R. ARMREST (YR121L) (TYPE2)

81150-MN5-000ZB

Unavailable

COVER, R. ARMREST (TYPE1)

81150-MN5-000ZA

Unavailable

COVER, R. ARMREST (R58L) (TYPE3) COVER, R. ARMREST (NH188L)

81150-MN5-000ZC

Unavailable

COVER, L. ARMREST (YR121L) (TYPE2)

81151-MN5-000ZB

Unavailable

COVER, L. ARMREST (NH159L) (TYPE1)

81151-MN5-000ZA

Unavailable

COVER, L. ARMREST (R58L) (TYPE3) COVER, L. ARMREST (NH188L)

81151-MN5-000ZC

Unavailable

COVER B, R. ARMREST (TYPE2)

81152-MN5-000ZB

Unavailable

COVER B, R. ARMREST (NH159L) (TYPE1)

81152-MN5-000ZA

$65.25

COVER B, R. ARMREST (R58L) (TYPE3) COVER B, R. ARMREST (NH188L)

81152-MN5-000ZC

Unavailable

COVER B, L. ARMREST (TYPE2)

81153-MN5-000ZB

Unavailable

COVER B, L. ARMREST (NH159L) (TYPE1)

81153-MN5-000ZA

$65.25

COVER B, L. ARMREST (R58L) (TYPE3) COVER B, L. ARMREST (NH188L)

81153-MN5-000ZC

Unavailable

BODY, R. ARMREST (YR121L) (TYPE2)

81154-MN5-000ZB

Unavailable

BODY, R. ARMREST (TYPE1)

81154-MN5-000ZA

Unavailable

BODY, R. ARMREST (R58L) (TYPE3) BODY, R. ARMREST (NH188L)

81154-MN5-000ZC

Unavailable

BODY, L. ARMREST (YR121L) (TYPE2)

81156-MN5-000ZB

Unavailable

BODY, L. ARMREST (NH159L) (TYPE1)

81156-MN5-000ZA

Unavailable

BODY, L. ARMREST (R58L) (TYPE3) BODY, L. ARMREST (NH188L)

81156-MN5-000ZC

$44.54

CUSHION, R. ARMREST (YR121L) (TYPE2) (NOT AVAILABLE)

81158-MN5-000ZB

Unavailable

CUSHION, R. ARMREST (NH159L) (TYPE1)

81158-MN5-000ZA

Unavailable

CUSHION, R. ARMREST (R58L) (TYPE3) (NOT AVAILABLE) CUSHION, R. ARMREST (NH188L)

81158-MN5-000ZC

Unavailable

CUSHION, L. ARMREST (YR121L) (TYPE2)

81159-MN5-000ZB

Unavailable

CUSHION, L. ARMREST (NH159L) (TYPE1)

81159-MN5-000ZA

Unavailable

CUSHION, L. ARMREST (R58L) (TYPE3) (NOT AVAILABLE) CUSHION, L. ARMREST (NH188L)

81159-MN5-000ZC

Unavailable

POCKET ASSY., R. TRUNK (YR121L) (TYPE2)

81160-MN5-000ZB

Unavailable

POCKET ASSY. *NH159L* (COSMOPOLITAN GRAY) This part replaces 81160-MN5-000ZA.

81160-MN5-000ZG

Unavailable

POCKET ASSY. *NH159L* (COSMOPOLITAN GRAY)

81160-MN5-000ZG

Unavailable

POCKET ASSY., R. TRUNK (R58L) (TYPE3)

81160-MN5-000ZC

Unavailable

POCKET ASSY., L. TRUNK (TYPE2)

81161-MN5-000ZB

Unavailable

POCKET ASSY., L. TRUNK (NH159L) (TYPE1)

81161-MN5-000ZA

Unavailable

POCKET ASSY., L. TRUNK (R58L) (TYPE3)

81161-MN5-000ZC

Unavailable

LID, R. TRUNK POCKET (TYPE2)

81164-MN5-000ZB

Unavailable

LID, R. TRUNK POCKET (TYPE1)

81164-MN5-000ZA

$43.70

LID, R. TRUNK POCKET (R58L) (TYPE3) LID, R. TRUNK POCKET (NH188L)

81164-MN5-000ZC

Unavailable

LID, L. TRUNK POCKET (YR121L) (TYPE2)

81165-MN5-000ZB

Unavailable

LID, L. TRUNK POCKET (TYPE1)

81165-MN5-000ZA

$36.92

LID, L. TRUNK POCKET (R58L) (TYPE3) LID, L. TRUNK POCKET (NH188L)

81165-MN5-000ZC

Unavailable

KNOB, TRUNK POCKET (YR121L) (TYPE2)

81166-MN5-000ZB

Unavailable

KNOB, TRUNK POCKET (NH159L) (TYPE1)

81166-MN5-000ZA

$38.87

KNOB, TRUNK POCKET (R58L) (TYPE3) KNOB, TRUNK POCKET (NH188L)

81166-MN5-000ZC

Unavailable

SPRING, TRUNK POCKET

81169-MN5-000

$4.53

RUBBER, TRUNK POCKET SEAL (A)

81173-MN5-300

$3.57

RUBBER, TRUNK POCKET SEAL (B)

81174-MN5-300

Unavailable

RUBBER, TRUNK POCKET SEAL (C)

81175-MN5-300

$3.68

RUBBER, SEAL | Use up to Frame SN KA100662

81240-ML8-300

Unavailable

RUBBER, SEAL | Use from Frame SN KA100663

81241-MT2-000

Unavailable

STOPPER, TRUNK LID

81250-MN5-000

$8.84

STAY B, LID STOPPER

81254-MN5-000

$5.23

CATCH ASSY., TRUNK This part replaces 81305-MN5-003.

81305-MT8-771

Unavailable

CATCH ASSY., TRUNK

81305-MT8-771

Unavailable

COVER, OPENER UNIT

81306-MN5-003

$37.84

OPENER UNIT

81310-MAM-003

Unavailable

OPENER UNIT This part replaces 81310-MN5-003.

81310-MAM-003

Unavailable

LOCK, OPENER UNIT

81312-MN5-000

Unavailable

STRIKER, TRUNK

81325-MN5-000

Unavailable

PLATE, TRUNK STRIKER SETTING

81329-MN5-000

Unavailable

LEVER ASSY., LUGGAGE BAG OPENER (MITSUI)

81335-MN5-003

Unavailable

RUBBER, TRUNK SEAL (A)

81350-MN5-000

$25.05

RUBBER, TRUNK SEAL (B)

81351-MN5-000

Unavailable

COLLAR, SADDLEBAG SETTING

81355-MN5-000

$6.60

RUBBER, BAG MOUNT

81356-MN5-000

$3.43

BAG, TRUNK (INNER) (TYPE1) (BLUE)

81360-MN5-000ZA

Unavailable

BAG, TRUNK (INNER) (TYPE2) (BROWN)

81360-MN5-000ZB

$90.05

RUBBER, TRUNK SEAL (C) | Use from Frame SN KA100363

81361-MN5-300

Unavailable

COVER, LICENSE LIGHT

84705-MN5-000

Unavailable

LABEL, TIRE

87505-MT2-300

Unavailable

LABEL, TRUNK SADDLEBAG

87520-MT2-300

$4.94

LABEL, TRUNK POCKET

87525-MT2-300

Unavailable

LABEL, KEY POSITION

87526-MAM-300

Unavailable

LABEL, KEY POSITION This part replaces 87526-MN5-300.

87526-MAM-300

Unavailable

SCREW (5X12)

90104-964-000

$2.34

BOLT, FLANGE (6MM)

90112-GC6-000

$3.90

NUT, FLANGE CAP (5MM)

90167-SA0-980

$5.59

NUT, CLIP

90301-GE0-000

$2.13

SCREW, PAN (5X12)

93500-05012-0G

$1.49

SCREW-WASHER (4X12)

93891-04012-07

$1.49

SCREW-WASHER (5X10)

93893-05010-07

$1.49

SCREW-WASHER (5X12)

93893-05012-07

$1.49

SCREW-WASHER (5X12) | Use up to Frame SN KA100512

93893-05012-07

$1.49

BOLT, FLANGE (5X10) | Use from Frame SN KA100513

90002-GC3-000

$2.33

SCREW-WASHER (5X16)

93893-05016-07

$1.49

SCREW-WASHER (5X12)

93894-05012-07

$1.49

SCREW, TAPPING (4X10)

93903-24280

$1.49

SCREW, TAPPING (4X12)

93903-24380

$1.49

SCREW, TAPPING (4X12)

93903-24380

$1.49

SCREW, TAPPING (4X16)

93903-24480

$1.49

SCREW, TAPPING (5X16)

93903-25380

$1.49

SCREW, TAPPING (5X20)

93903-25480

$1.49

NUT, FLANGE (5MM)

94050-05080

$1.49

WASHER, PLAIN (5MM)

94101-05700

$1.49

WASHER, PLAIN (5MM)

94103-05700

$1.49

CLIP, WIRE (4X50)

94591-45000

$2.92

BOLT, FLANGE (6X20)

96001-06020-07

$1.49
