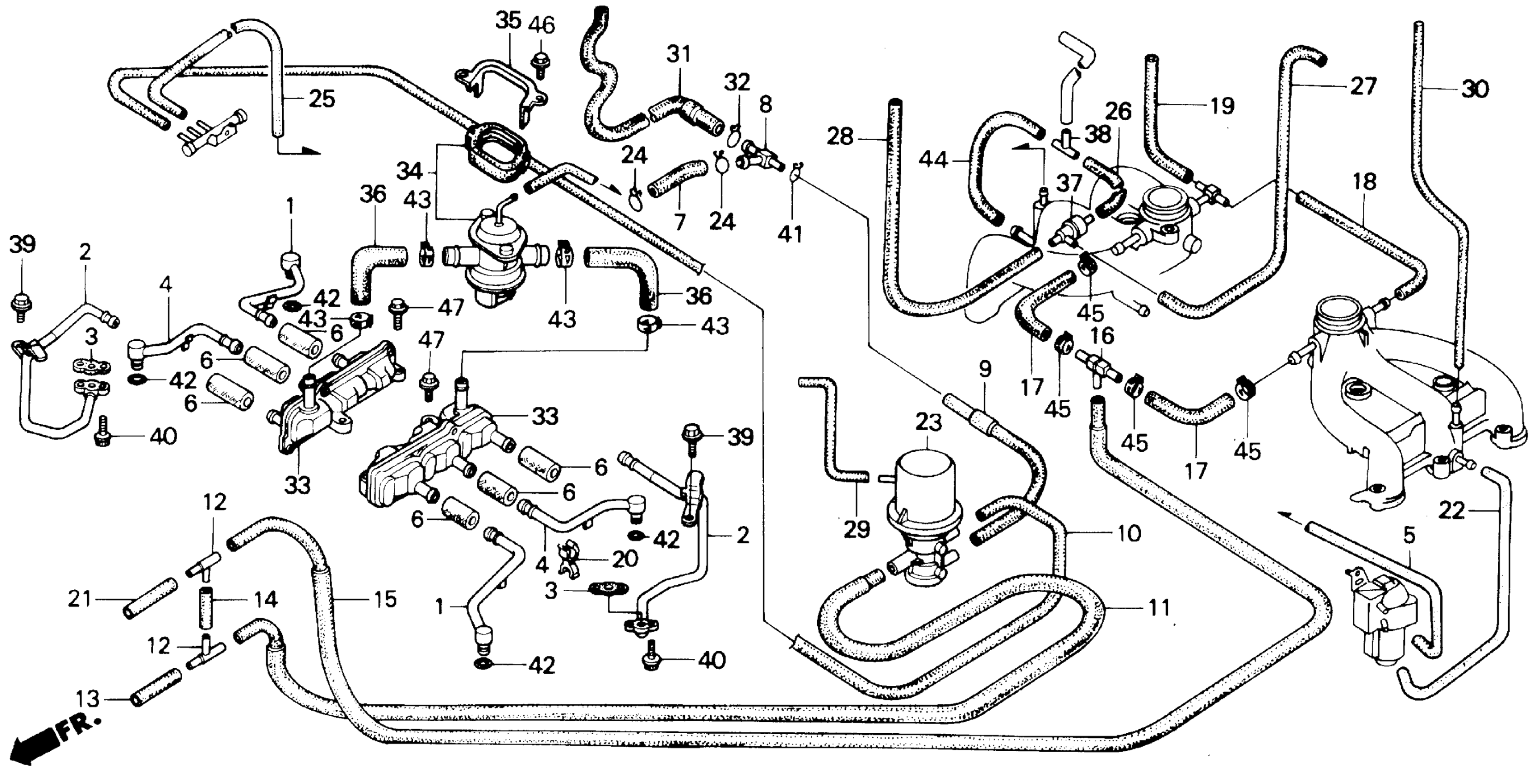

Honda GL1500AC (88) GOLD WING, USA, VIN# 1HFSC221-JA000001 TO 1HFSC221-JA001461 TUBING (2) 88 Diagram

#

Description
Price

1

PIPE A, AIR FEED

17010-MT2-305

Unavailable

1

PIPE A, AIR FEED This part replaces 17130-MN5-000.

17010-MT2-305

Unavailable

2

PIPE, AIR FEED (B)

17140-MN5-000

Unavailable

3

GASKET, AIR FEED PIPE

17142-MN5-000

$2.92

4

PIPE C, AIR FEED This part replaces 17150-MN5-000.

17020-MT2-305

Unavailable

5

TUBE, PRESSURE BOOST (A) (NOT AVAILABLE)

17160-MN5-010

Unavailable

6

HOSE, AIR FEED (A) This part replaces 17161-MN5-000.

17161-MN5-010

$8.85

6

HOSE, AIR FEED (A)

17161-MN5-010

$8.85

7

TUBE A, AIR IN.

17162-MN5-000

Unavailable

8

JOINT B (THREE-WAY)

17163-MN5-000

Unavailable

9

TUBE B, AIR IN.

17164-MN5-000

Unavailable

10

TUBE, PRESSURE BOOST (B) (NOT AVAILABLE)

17165-MN5-000

Unavailable

11

TUBE, AIR IN. (C) (NOT AVAILABLE) This part replaces 17166-MN5-000.

17166-MN5-010

Unavailable

11

TUBE, AIR IN. (C) (NOT AVAILABLE)

17166-MN5-010

Unavailable

12

JOINT (THREE-WAY) (C) (NOT AVAILABLE)

17167-MN5-000

Unavailable

13

TUBE, AIR IN. (D) (NOT AVAILABLE)

17168-MN5-000

Unavailable

14

TUBE, AIR IN. (E) (NOT AVAILABLE)

17169-MN5-000

Unavailable

15

TUBE, AIR IN. (YELLOW) (NOT AVAILABLE) This part replaces 17170-MN5-000.

17170-MN5-010

Unavailable

15

TUBE, AIR IN. (YELLOW) (NOT AVAILABLE)

17170-MN5-010

Unavailable

16

VALVE, CHECK (NOT AVAILABLE)

17171-MN5-003

Unavailable

17

TUBE, AIR IN. (G)

17172-MN5-000

$11.73

18

TUBE, PRESSURE BOOST (C)

17173-MN5-000

$11.73

19

TUBE, PRESSURE BOOST (E) (NOT AVAILABLE)

17175-MN5-000

Unavailable

20

CLAMP J, HOSE

17176-MN5-000

Unavailable

21

TUBE, AIR IN. (H) (NOT AVAILABLE)

17177-MN5-000

Unavailable

22

TUBE, PRESSURE BOOST (F) (NOT AVAILABLE)

17178-MN5-000

Unavailable

23

VALVE ASSY., SHOT AIR (NOT AVAILABLE)

17340-MN5-003

Unavailable

24

CLIP, BREATHER TUBE

17369-KB4-670

$5.41

25

TUBE (3.5X95) (BLUE 1) (NOT AVAILABLE)

17451-MN5-010

Unavailable

26

TUBE (3.5MM) (BLUE 2) (NOT AVAILABLE)

17452-MN5-740

Unavailable

27

TUBE (3.5MM) (BLUE 3) (NOT AVAILABLE)

17453-MN5-000

Unavailable

28

TUBE (3.5X270) (BLUE 4) (NOT AVAILABLE)

17454-MN5-000

Unavailable

29

TUBE (3.5MM) (YELLOW 4) (NOT AVAILABLE)

17457-MN5-000

Unavailable

30

TUBE (3.5X195) (PINK 1) (NOT AVAILABLE)

17458-MN5-000

Unavailable

31

TUBE (14MM) (GREEN 4) (NOT AVAILABLE) This part replaces 17472-MN5-000.

17472-MN5-010

Unavailable

31

TUBE (14MM) (GREEN 4) (NOT AVAILABLE)

17472-MN5-010

Unavailable

32

CLIP, SUB-TANK HOSE

17724-102-700

$4.51

33

CASE ASSY., REED VALVE

18610-MN5-004

Unavailable

34

VALVE ASSY., AIR INJECTION CONTROL

18650-MN5-024

Unavailable

35

STAY, AIR INJECTION VALVE

18652-MN5-000

Unavailable

36

HOSE, AIR IN.

18654-MN5-000

Unavailable

37

VALVE, IN. AIR SHOT AIR CHECK This part replaces 36627-MN5-000.

36627-MN5-003

$42.75

37

VALVE, IN. AIR SHOT AIR CHECK

36627-MN5-003

$42.75

38

JOINT, THREE WAY

36010-PA6-004

Unavailable

38

JOINT (THREE-WAY) This part replaces 38773-PB9-000.

36010-PA6-004

Unavailable

39

BOLT, FLANGE (6X14)

90016-MN5-000

$3.89

40

BOLT, SOCKET (6X18)

90040-MN5-000

$3.31

41

CLIP, TUBE (B14)

90654-MK3-780

$2.74

42

O-RING (9.8X2.4)

91305-422-000

$2.47

42

O-RING (9.8X2.4) This part replaces 91352-425-003.

91305-422-000

$2.47

43

CLAMP, FUEL TUBE (D20) (CHUO HATSUJO) This part replaces 91405-PE0-003.

91417-SZ3-003

$6.40

43

CLAMP, FUEL TUBE (D20) (CHUO HATSUJO)

91417-SZ3-003

$6.40

45

CLAMP, TUBE (D12)

95002-41200-08

$2.34

46

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

47

BOLT, FLANGE (6X25)

95701-06025-08

$1.72
