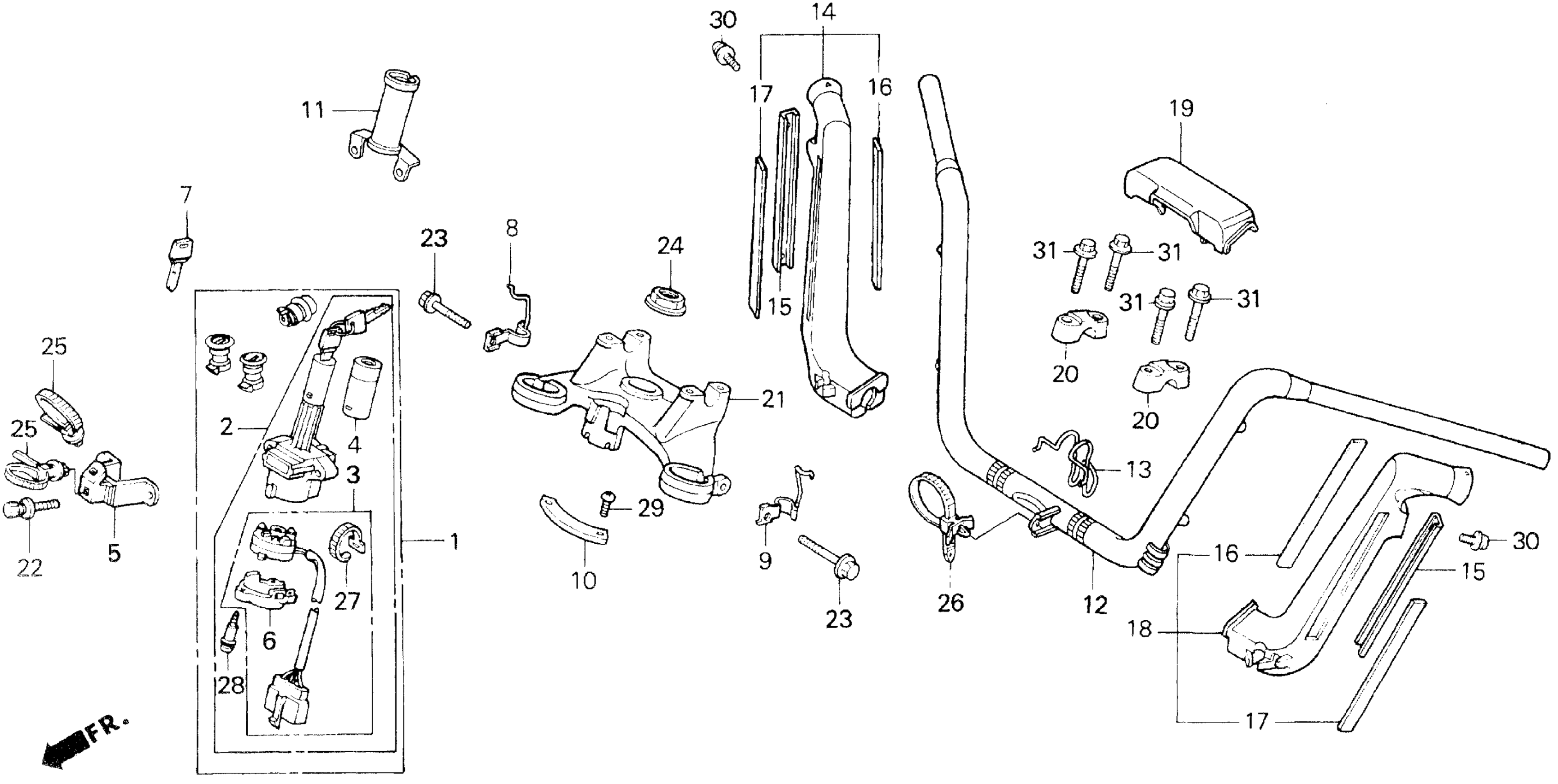

Honda GL1500AAC (99) GOLD WING ASPENCADE, USA, VIN# 1HFSC221-XA100001 HANDLEBAR Diagram

LOCK SET

35010-MAM-L40

Unavailable

SWITCH ASSY., COMBINATION & LOCK

35100-MT8-771

Unavailable

BASE, CONTACT

35101-MT8-771

Unavailable

CAP

35102-MT8-770

$23.30

STAY, COMBINATION SWITCH WIRE CLAMP

35105-MN5-000

Unavailable

COVER, SWITCH

35105-MT8-770

Unavailable

KEY,BLANK (NO.1) | (Optional). This part replaces 35121-MAM-850.

35121-MT8-831

Unavailable

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-MAM-830.

35122-KW3-771

$10.10

CLAMP, R. HOSE (UPPER)

45158-MZ3-000

Unavailable

CLAMP, L. HOSE (UPPER)

45159-MZ3-010

Unavailable

COVER, HANDLE STOPPER

50341-MN5-000

Unavailable

GUARD, COMBINATION SWITCH

50410-MT8-000

Unavailable

HANDLEBAR

53100-MZ3-000

Unavailable

GUIDE, THROTTLE CABLE

53101-MW5-000

Unavailable

COVER, R. HANDLEBAR *NH1* (BLACK)

53110-MN5-000ZK

Unavailable

PLATE, HANDLE COVER SETTING *NH1R* (BLACK)

53111-MAM-A60ZE

$57.67

MOLDING A, HANDLE COVER

53115-MN5-300

Unavailable

MOLDING B, HANDLE COVER

53116-MN5-300

Unavailable

COVER, L. HANDLEBAR *NH1* (BLACK)

53120-MN5-000ZK

Unavailable

COVER, HANDLE CENTER

53130-MN5-000

Unavailable

HOLDER (UPPER)

53131-MN5-000

Unavailable

BRIDGE, FORK TOP

53230-MZ3-000

Unavailable

BOLT, COMBINATION SWITCH SETTING

90103-MN5-000

Unavailable

BOLT, FLANGE (8X35)

90112-KE1-760

Unavailable

NUT, STEERING STEM

90304-MJ4-670

$15.40

CLIP, WIRE HARNESS

90672-MN5-000

Unavailable

STRAP, CABLE (118MM) (BLACK)

90672-SA0-003

$6.24

BAND, SELF-LOCK

91058-MG9-681

$2.21

SCREW, TAPPING (3X16)

91059-MG9-681

$2.39

SCREW, PAN (4X6)

93500-04006-0G

$1.49

SCREW-WASHER (4X8)

93891-04008-07

$1.49

SCREW-WASHER (4X8) This part replaces 93891-04008-17.

93891-04008-07

$1.49

BOLT, FLANGE (8X35)

95701-08035-02

$1.97
