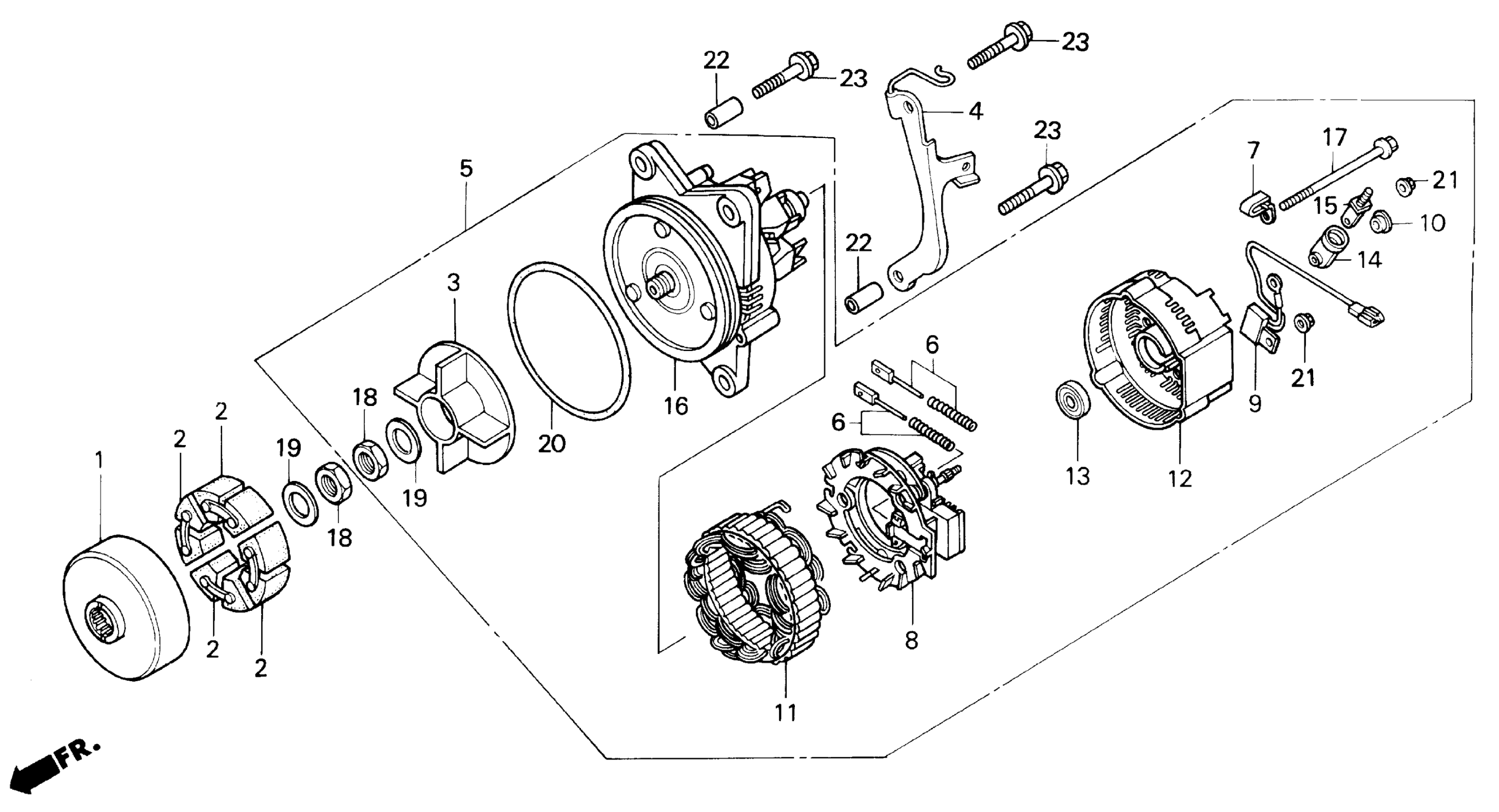

Honda GL1500AAC (95) GOLD WING ASPENCADE, USA, VIN# 1HFSC221-SA700001 ALTERNATOR Diagram

#

Description
Price

1

CONNECTOR, ALTERNATOR (A)

13531-MT8-000

Unavailable

2

RUBBER, ALTERNATOR DAMPER

13534-MN5-020

$6.86

3

CONNECTOR, ALTERNATOR (B)

13541-MN5-000

Unavailable

4

CLAMP, PCV TUBE

17305-MT2-740

Unavailable

5

ALTERNATOR ASSY. (HITACHI) This part replaces 31100-MT2-005.

31100-MT2-015

$637.44

5

ALTERNATOR ASSY. (HITACHI)

31100-MT2-015

$637.44

6

BRUSH, ALTERNATOR

31101-MN5-005

$13.66

7

CLAMP, ALTERNATOR WIRE

31103-MN5-005

Unavailable

8

RECTIFIER, REGULATE

31105-MN5-005

Unavailable

9

WIRE, ALTERNATOR

31108-MN5-005

$38.10

10

CAP, TERMINAL

31109-MN5-005

Unavailable

11

CORE, STATOR (HITACHI)

31110-MN5-005

$163.28

12

COVER, RR. (HITACHI)

31112-MN5-005

Unavailable

13

BEARING, RR. (HITACHI)

31113-MN5-005

$28.23

14

HOUSING, OUTPUT (HITACHI)

31114-MN5-005

Unavailable

15

TERMINAL, OUTPUT (HITACHI)

31115-MN5-005

$53.93

16

CORE, ROTOR (HITACHI) This part replaces 31120-MT2-005.

31120-MT2-015

$351.49

16

CORE, ROTOR (HITACHI)

31120-MT2-015

$351.49

17

BOLT, ALTERNATOR

90062-MN5-005

$2.18

18

NUT, HEX. (14MM)

90204-MN5-000

$9.20

19

WASHER (14.2X23X2.6)

90408-MN5-000

$5.64

20

O-RING (84.5X4) (ARAI)

91320-MN5-003

$7.10

21

NUT-WASHER (5MM)

94071-05080

$1.49

22

PIN A, DOWEL (10X16)

94301-10160

$2.28

23

BOLT, FLANGE (8X38)

95701-08038-08

$2.28
