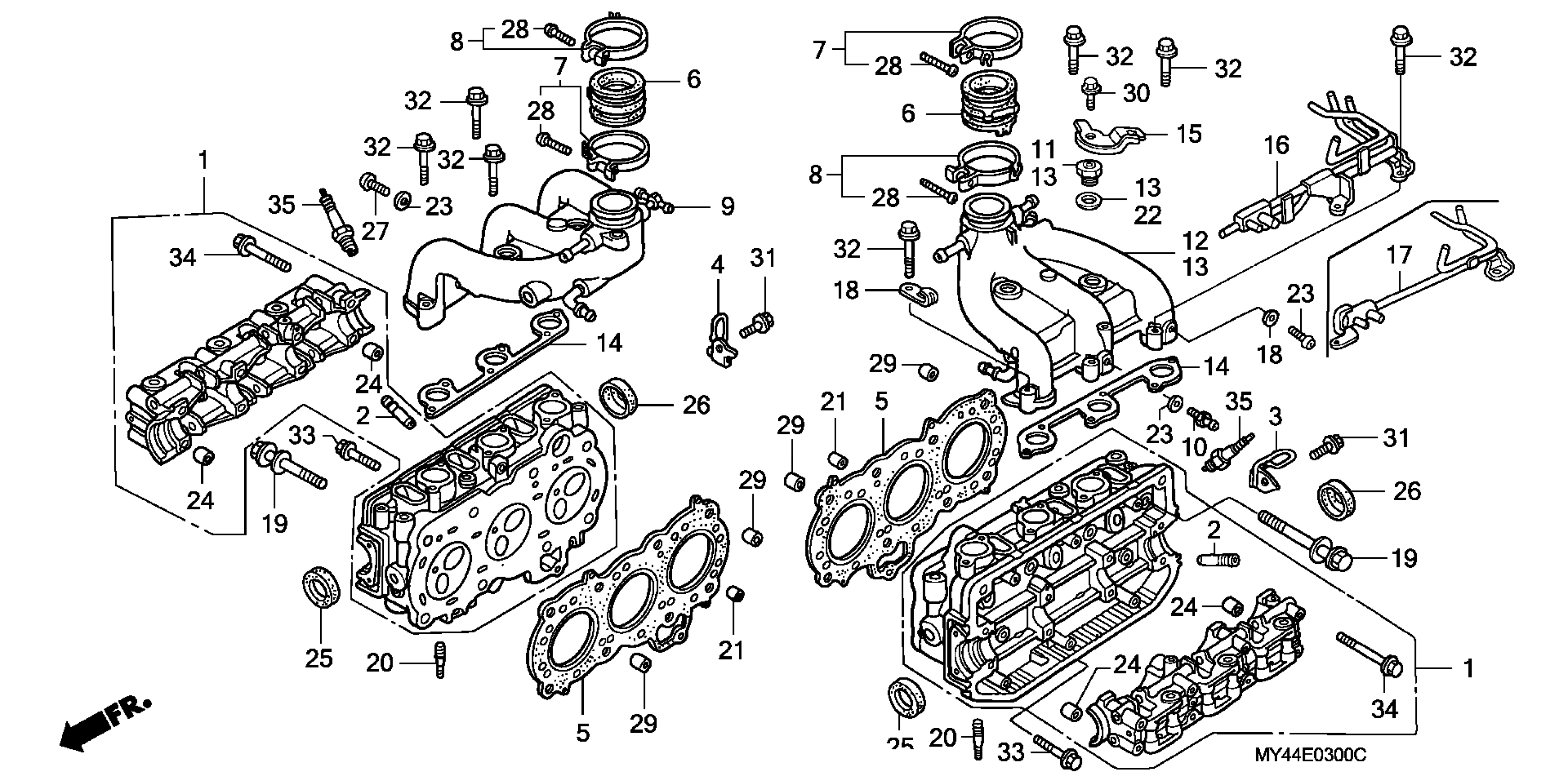

Honda GL1500AAC (93) GOLD WING ASPENCADE, USA, VIN# 1HFSC221-PA500001 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD This part replaces 12200-MT8-010.

12200-MT8-040

Unavailable

1

CYLINDER HEAD This part replaces 12200-MT8-020.

12200-MT8-040

Unavailable

1

CYLINDER HEAD This part replaces 12200-MT8-030.

12200-MT8-040

Unavailable

1

CYLINDER HEAD

12200-MT8-040

Unavailable

2

GUIDE, VALVE (OVER SIZE)

12204-MN5-305

Unavailable

3

CLAMP, TUBE (G)

12214-MN5-000

Unavailable

4

CLAMP, TUBE (D)

12215-MT2-000

Unavailable

5

GASKET, CYLINDER HEAD

12251-MN5-004

$30.91

5

GASKET, CYLINDER HEAD This part replaces 12251-MN5-013.

12251-MN5-004

$30.91

5

GASKET, CYLINDER HEAD (0.75/1.00) | (Optional).

12251-MN5-305

Unavailable

6

INSULATOR, CARBURETOR

16211-MN5-000

$16.44

7

BAND A, INSULATOR

16218-MN5-000

$12.48

8

BAND B, INSULATOR

16219-MN5-000

$12.48

9

MANIFOLD, R. IN.

17110-MY4-000

Unavailable

10

JOINT, PRESSURE BOOST (D)

17113-MT8-000

Unavailable

11

BOLT, SEALING (20MM)

17116-MT2-740

Unavailable

13

MANIFOLD, L. IN.

17120-MY4-740

Unavailable

14

GASKET, IN. MANIFOLD This part replaces 17231-MN5-003.

17231-MN5-004

$19.87

14

GASKET, IN. MANIFOLD

17231-MN5-004

$19.87

15

STAY, AIR VENT PIPE

17303-MT2-740

Unavailable

16

PIPE A, INSTALL

17380-MT8-000

Unavailable

18

CLIP, WIRE HARNESS

32170-443-850

$5.05

19

BOLT, FLANGE (9X91)

90010-MT8-003

$12.28

20

BOLT, STUD (8-6X40)

90035-MN5-000

$4.53

21

ORIFICE (2.0)

90084-MN5-000

Unavailable

22

WASHER, SEALING (20MM)

90441-MN5-000

$5.08

23

WASHER, SEALING (5MM)

90452-323-000

$1.59

24

PIN, DOWEL (10X13.5)

90701-GB4-680

Unavailable

25

OIL SEAL (27X43X9)

91209-371-003

$17.60

26

CAP, SEAL (43X9)

91209-463-013

$11.58

27

SCREW, PAN (5X8)

93500-05008-0A

$1.49

28

SCREW, PAN (5X25)

93500-05025-0G

$1.49

29

PIN, DOWEL (12X20)

94301-12200

$2.29

30

BOLT, FLANGE (6X10)

95701-06010-08

$1.61

31

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

32

BOLT, FLANGE (6X35)

95701-06035-08

$1.79

33

BOLT, FLANGE (6X40)

95701-06040-08

$1.80

34

BOLT, FLANGE (8X80)

95701-08080-00

$1.64

35

SPARK PLUG (DPR6EA-9) (NGK) | (Optional).

98069-56916

$2.62

35

SPARK PLUG (X20EPR-U9) (DENSO) | (Optional).

98069-56926

$2.54

35

SPARK PLUG (DPR7EA-9) (NGK)

98069-57916

$2.62

35

SPARK PLUG (X22EPR-U9) (DENSO)

98069-57926

$2.54

35

SPARK PLUG (DPR8EA-9) (NGK) | (Optional).

98069-58916

$2.62

35

SPARK PLUG (X24EPR-U9) (DENSO) | (Optional).

98069-58926

$2.54
