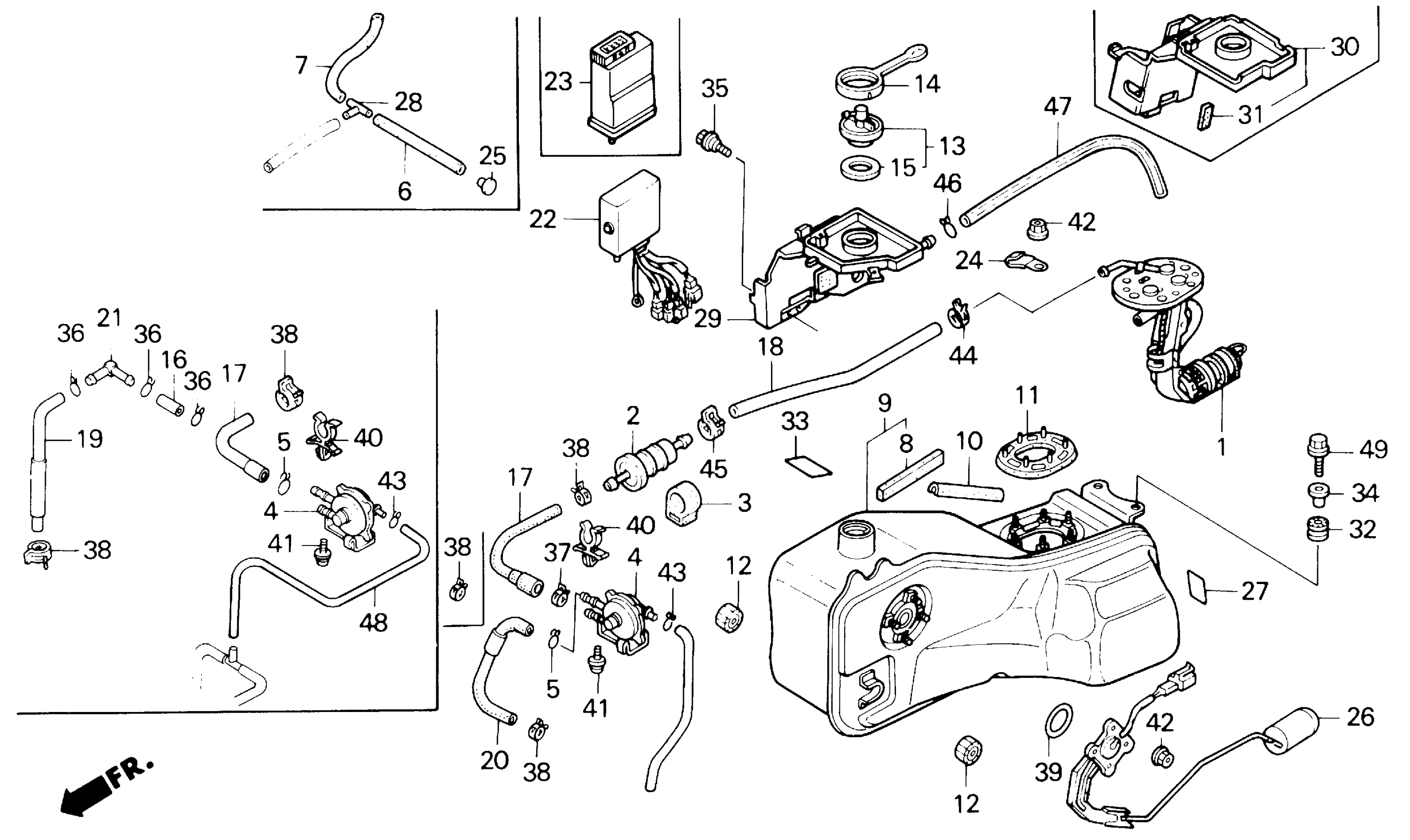

Honda GL1500AAC (91) GOLD WING ASPENCADE, USA, VIN# 1HFSC221-MA300001 FUEL TANK Diagram

#

Description
Price

1

PUMP ASSY., FUEL

16700-MAF-000

$504.18

1

PUMP ASSY., FUEL This part replaces 16700-MT2-000.

16700-MAF-000

$504.18

1

PUMP ASSY., FUEL This part replaces 16700-MT2-010.

16700-MAF-000

$504.18

2

FILTER, FUEL

16900-MG8-003

$23.49

3

CUSHION, FUEL STRAINER

16905-MG7-000

$7.95

4

PETCOCK ASSY., AUTOMATIC FUEL This part replaces 16970-MN5-003.

16970-MN5-023

$229.36

4

PETCOCK ASSY., AUTOMATIC FUEL This part replaces 16970-MN5-013.

16970-MN5-023

$229.36

4

PETCOCK ASSY., AUTOMATIC FUEL

16970-MN5-023

$229.36

5

CLIP, BREATHER TUBE

17369-KB4-670

$5.41

8

CUSHION, BATTERY TRAY (A)

17509-MN5-000

$4.48

9

TANK, FUEL

17510-MZ3-000

$1,031.69

9

TANK, FUEL This part replaces 17510-MT8-000.

17510-MZ3-000

$1,031.69

10

TRIM, FUEL TANK

17516-MK7-000

$9.94

11

GASKET, BASE

17574-MN5-000

$10.10

12

CUSHION, FR. FUEL TANK

17611-MG2-000

$11.43

12

CUSHION, FR. FUEL TANK This part replaces 17611-429-000.

17611-MG2-000

$11.43

13

CAP, FUEL FILLER

17670-MW5-741

Unavailable

15

GASKET, FUEL FILLER CAP

17682-679-013

$8.95

17

TUBE, L. FUEL

17704-MN5-010

$17.46

18

TUBE A, FUEL

17707-MN5-000

Unavailable

20

TUBE B, FUEL

17708-MT2-000

Unavailable

23

CONTROL UNIT, ENGINE

30410-MW5-741

Unavailable

24

CLAMP, WIRE

32111-426-000

Unavailable

24

CLAMP, WIRE This part replaces 32111-460-780.

32111-426-000

Unavailable

26

FUEL UNIT

37800-MT8-008

Unavailable

27

LABEL, FUSE BOX

38215-MN5-000

Unavailable

30

TRAY, FUEL FILLER (NOT AVAILABLE)

83502-MT8-000

Unavailable

31

CUSHION, SPARK UNIT

84102-ML7-000

$2.90

32

RUBBER, FUEL TANK MOUNTING

84703-MN5-000

$5.28

33

DIAGRAM, VACUUM HOSE ROUTING

87135-MW5-740

Unavailable

34

COLLAR A

90001-438-850

$4.76

35

BOLT, FLANGE (6MM) (BLACK)

90113-GE4-000

$4.75

37

CLIP, FUEL HOSE

90678-MN5-000

$2.59

38

CLAMP, CANISTER HOSE

90682-SA0-671

$7.67

39

O-RING (39.5X5)

91305-MC7-000

$3.31

40

CLIP, TUBE

90602-ZG5-003

$2.78

40

CLIP, TUBE This part replaces 91405-750-800.

90602-ZG5-003

$2.78

41

SCREW-WASHER (5X10)

93893-05010-08

$1.49

42

NUT, FLANGE (6MM)

94050-06080

$1.49

43

CLIP, TUBE (B6.5)

95002-02650

$1.49

44

CLAMP, TUBE (D12)

95002-41200-08

$2.34

45

CLAMP, TUBE (D13)

95002-41300-08

$2.92

46

CLIP, TUBE (C12)

95002-80000

$1.49

47

BULK HOSE, VINYL (8X12X8000) (8X12X760)

95003-23008-60M

Unavailable

49

BOLT, FLANGE (6X25)

95701-06025-08

$1.72
