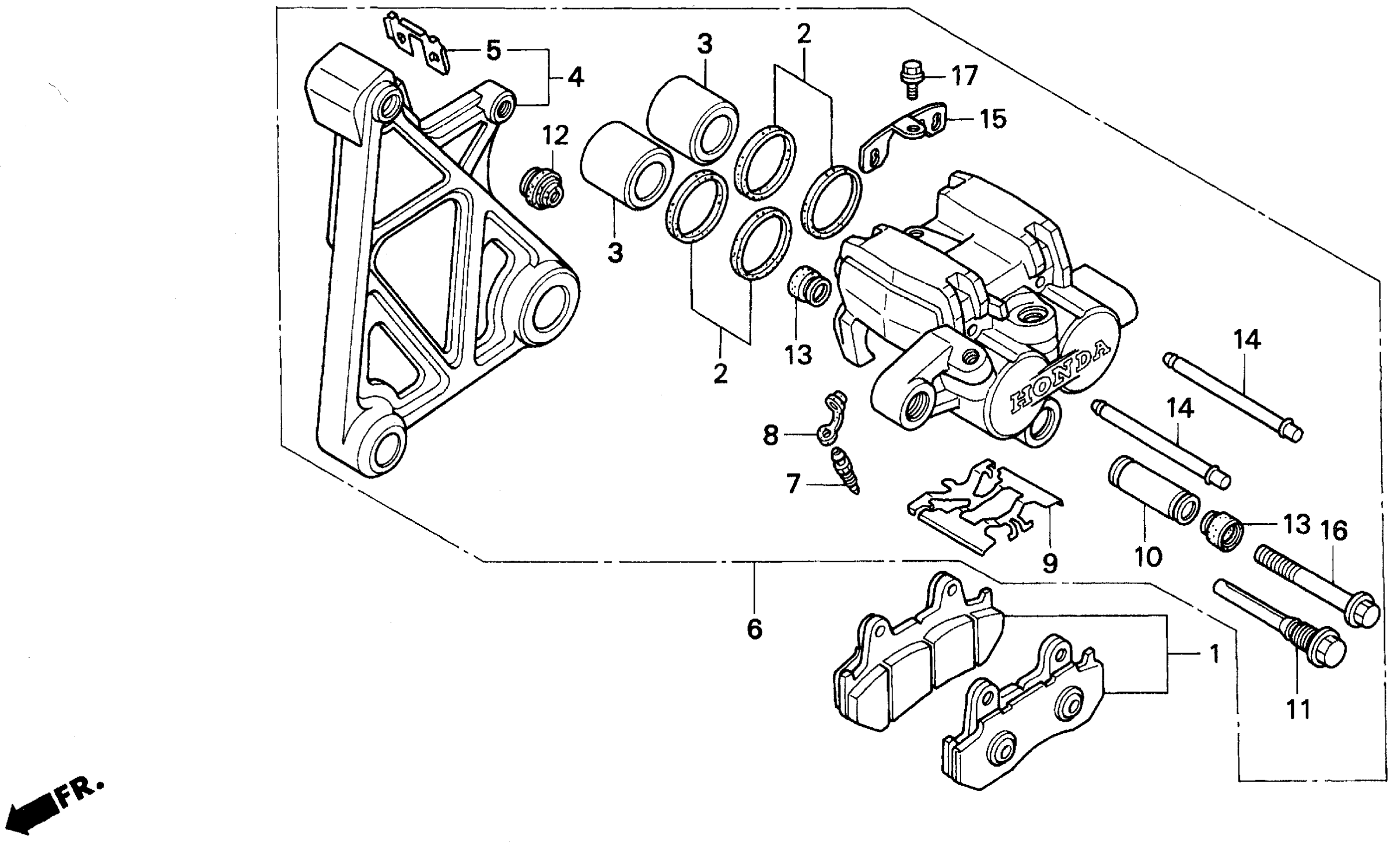

Honda GL1500AA (98) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-WA000001 REAR BRAKE CALIPER Diagram

#

Description
Price

1

PAD SET, RR.

06435-MT8-405

$52.13

2

SEAL SET, PISTON

06451-MA7-405

$9.55

3

PISTON

43107-MA7-006

$40.91

4

BRACKET, RR.

43110-MT8-006

Unavailable

5

RETAINER, RR. BRACKET

43112-445-631

Unavailable

6

CALIPER SUB-ASSY., RR. BRAKE (NISSIN)

43150-MT8-305

Unavailable

7

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.39

8

CAP, BLEEDER

43353-461-771

$4.70

9

SPRING, PAD

45108-MA2-006

Unavailable

10

SLEEVE

45111-MA3-006

$12.02

11

BOLT, PIN

45131-MA3-006

$15.79

12

BOOT B

45133-MA3-006

$5.07

13

BOOT, PIN

45133-166-016

$3.43

14

PIN, HANGER

45215-MA2-006

Unavailable

15

PLATE

45217-MA3-006

$4.13

16

BOLT, FLANGE (8X49) This part replaces 90180-MA3-006.

90180-MN8-006

$5.64

17

BOLT, FLANGE (6X10)

96001-06010-07

$1.48
