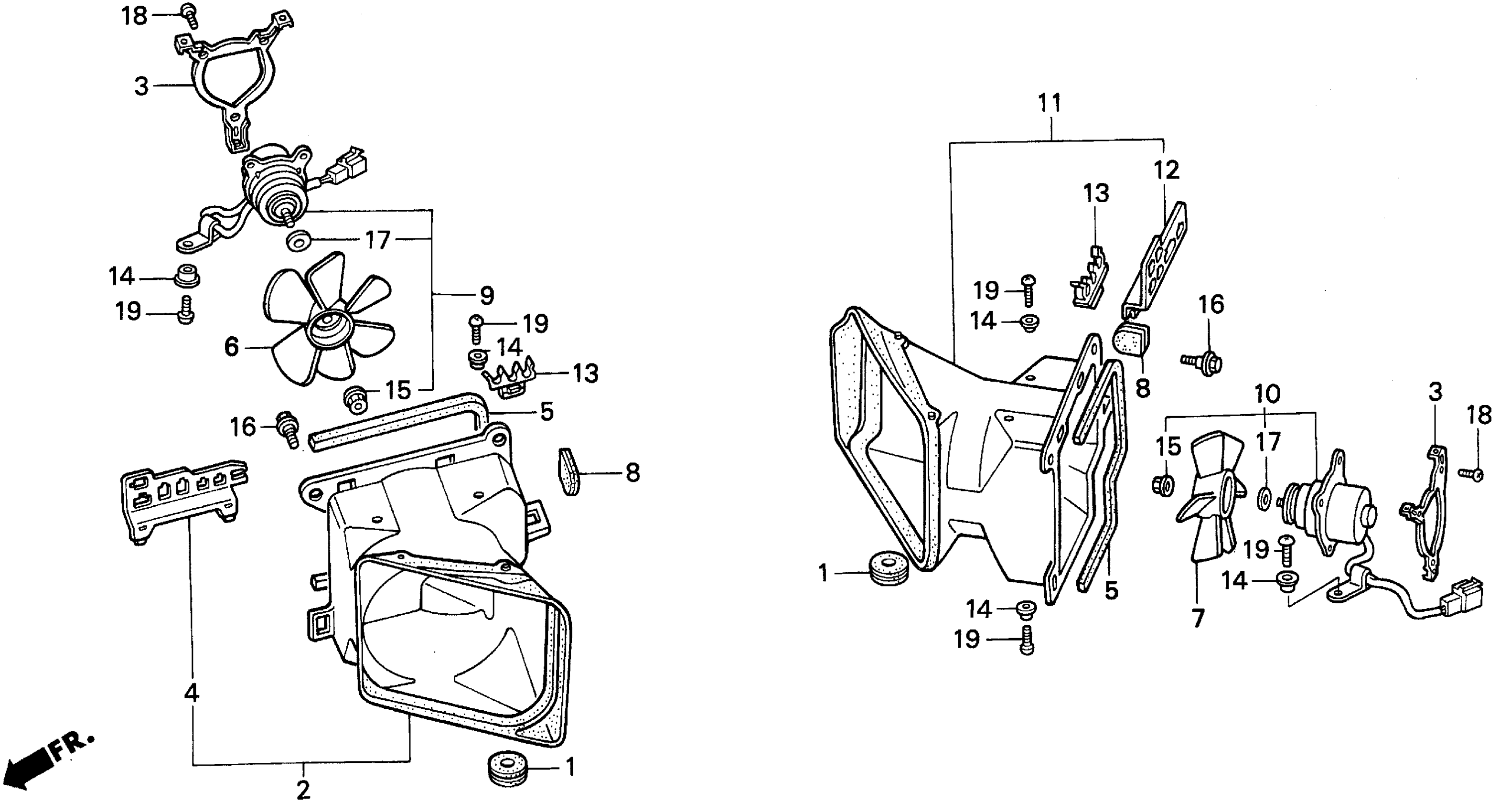

Honda GL1500AA (98) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-WA000001 COOLING FAN Diagram

RUBBER, RADIATOR MOUNTING

19012-HB9-000

$6.80

SHROUD ASSY., R.

19020-MT2-000

Unavailable

STAY, FAN MOTOR

19021-MN5-000

Unavailable

HOLDER, R. SHROUD CONNECTOR This part replaces 19022-MN5-000.

19022-MT8-770

Unavailable

HOLDER, R. SHROUD CONNECTOR

19022-MT8-770

Unavailable

SEAL, FAN SHROUD

19023-MN5-300

$8.84

FAN, R. COOLING (MITSUBA)

19024-MN5-003

Unavailable

FAN, L. COOLING (MITSUBA)

19025-MN5-003

Unavailable

GROMMET, SHROUD

19027-MN5-000

Unavailable

MOTOR ASSY., R. FAN

19030-MW5-005

Unavailable

MOTOR ASSY., L. FAN

19032-MW5-005

Unavailable

SHROUD ASSY., L.

19070-MT8-770

Unavailable

HOLDER, L. SHROUD CONNECTOR

19072-MT8-770

Unavailable

CLAMP B, IGNITION WIRE

32982-MT2-000

Unavailable

COLLAR, HEADLIGHT SETTING

61304-397-830

$2.03

NUT, HEX. (5MM) (MITSUBA)

90041-PG6-004

$5.26

BOLT, RR. FENDER SETTING

90111-KAE-870

$4.59

WASHER, PLAIN (7MM)

90511-MB6-003

Unavailable

SCREW, PAN (4X6)

93500-04006-0G

$1.49

SCREW, PAN (5X12)

93500-05012-0A

$1.49
