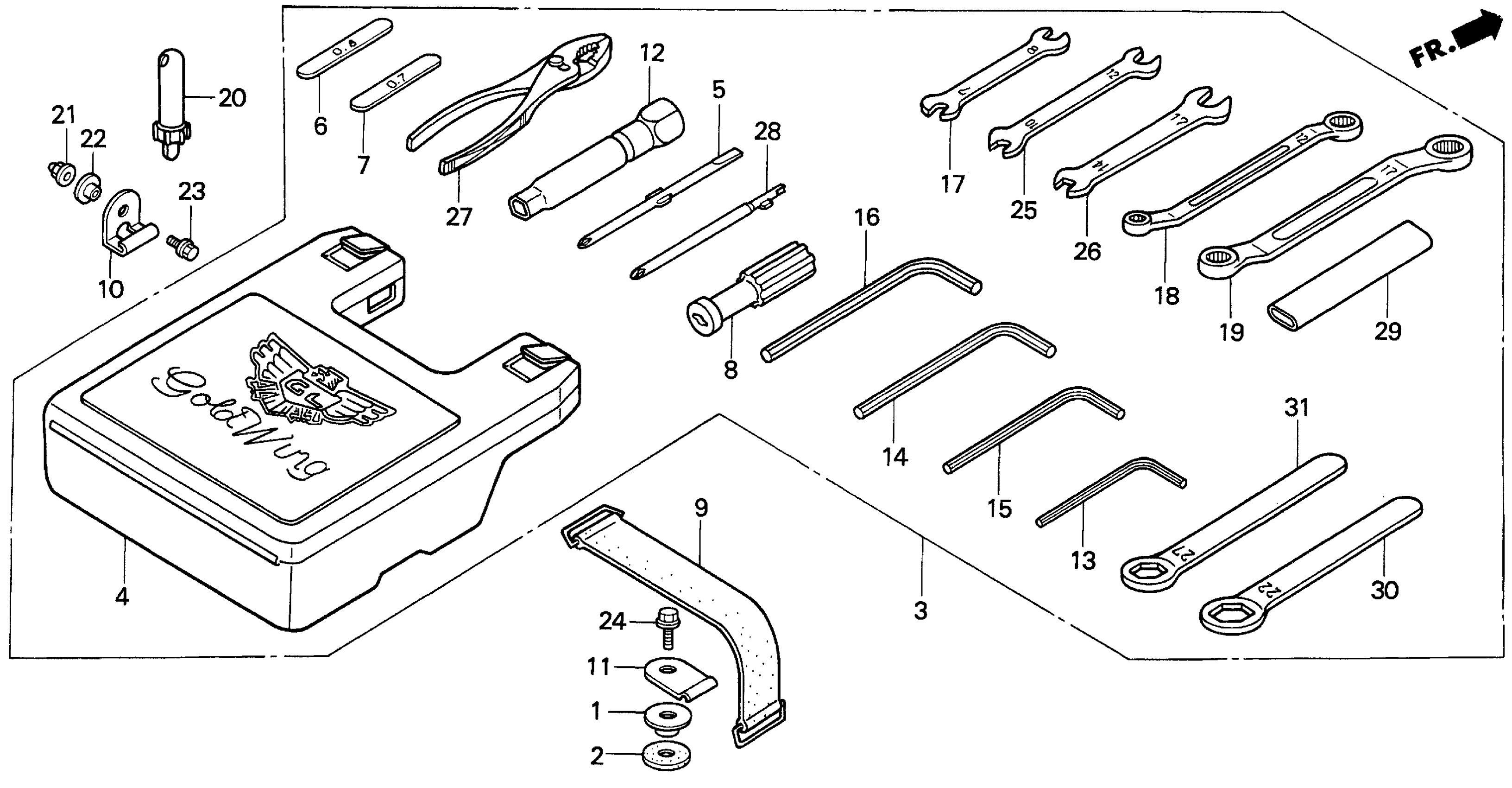

Honda GL1500AA (98) GOLD WING ASPENCADE, USA, VIN# 1HFSC220-WA000001 A/SE TOOLS Diagram

#

Description
Price

1

COLLAR, SADDLEBAG SETTING

81355-MN5-000

$6.60

2

RUBBER, BAG MOUNT

81356-MN5-000

$3.43

3

TOOL SET

89010-MZ3-000

Unavailable

4

BOX, TOOL (NOT AVAILABLE)

89101-MN5-000

Unavailable

5

SCREWDRIVER (NO.2 PHILLIPS -)

89102-538-000

$5.62

6

GAUGE, FEELER (0.8)

89103-MG9-680

Unavailable

7

GAUGE, FEELER (0.7MM)

89103-371-000

$3.31

8

GRIP

89103-538-000

$4.08

9

BAND, TOOL SETTING

89105-MN5-000

Unavailable

10

STAY, TOOL SETTING (A)

89106-MN5-000

$5.92

11

PLATE, TOOL SET

89108-MT2-000

Unavailable

12

WRENCH, PLUG

89216-MB0-000

$26.48

13

WRENCH, HEX. (4MM)

89221-KW3-000

$5.46

14

WRENCH, HEX. (6MM)

89221-371-000

$4.28

15

WRENCH, HEX. (5MM)

89221-429-000

$3.90

16

WRENCH, HEX. (8MM) (NOT AVAILABLE)

89222-371-000

Unavailable

17

WRENCH (7X8) (OPEN END)

89224-MZ3-000

Unavailable

18

WRENCH, EYE (10X12)

89227-461-000

$25.42

19

WRENCH, EYE (14X17) (NOT AVAILABLE)

89228-MR8-000

$31.33

20

GAUGE, AIR PRESSURE | (Optional).

89301-MN5-003

$28.98

21

NUT, CAP

90201-428-900

$2.23

22

WASHER (6X20)

90512-KF9-900

$3.06

23

BOLT, FLANGE (6X12)

96001-06012-07

$1.72

24

BOLT, FLANGE (6X20)

96001-06020-07

$1.49

25

SPANNER (10X12)

99001-10120

$4.69

26

SPANNER (14X17)

99001-14170

$7.49

27

PLIERS (150) (NOT AVAILABLE)

99002-15000

$7.49

28

DRIVER 2, PLUS SCREW (NO.3)

99003-20000

$3.27

29

HANDLE, EYE WRENCH (12MM)

99006-12000

$2.87

30

WRENCH, EYE (22MM)

99006-22000

$4.16

31

WRENCH, EYE (27MM)

99006-27000

$4.58
